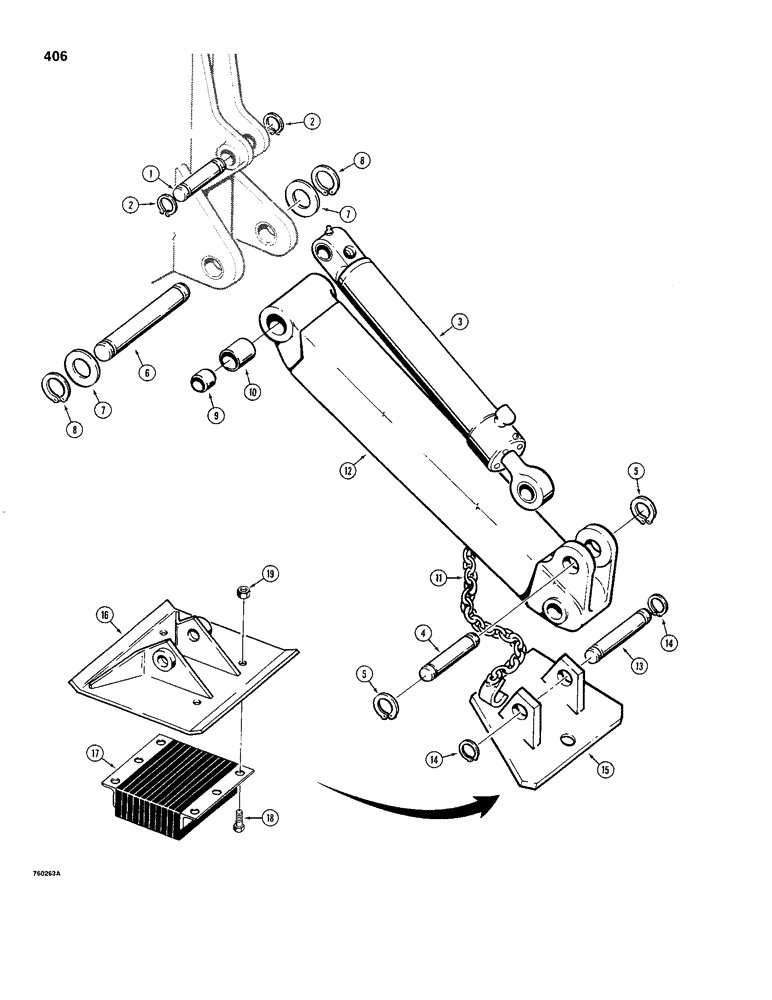

Запчасти Case 480C (406) - BACKHOE STABILIZERS (84) - BOOMS, DIPPERS & BUCKETS

1

D28037

AXLE PIN

PIN - stabilizer cylinder to mounting frame

2шт.

2

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

3

REF

INSTRUCTION

CYLINDER - stabilizer, see Figures 350 - 356 for correct assembly and components

2шт.

4

D37606

PIN,38.1mm OD x 103.5mm L

- stabilizer cylinder to stabilizer leg

2шт.

5

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

6

D46404

PIN

- stabilizer leg to mounting frame

2шт.

7

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, special

4шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

D56414

STABILIZER

LEG - stabilizer, left-hand, Includes: Refs. 9 - 12

1шт.

D56415

HOSE

LEG - stabilizer, right-hand, Includes: Refs. 9 - 12

1шт.

9

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

-, Serial Range: leg-frame

2шт.

10

D38134

BUSHING

SPACER - bushing

1шт.

11

D56413

CHAIN (AG)

CHAIN - transport

1шт.

12

NSS

NOT SOLD SEPARAT

LEG - stabilizer

1шт.

13

D37603

PIN

- stabilizer, Serial Range: leg-plate

2шт.

14

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

4шт.

15

D38080

FOOT REST

PLATE - stabilizer, cleated

2шт.

16

D61380

STABILIZER

PLATE - stabilizer, street or cemetery pad, optional, may have four or six mounting holes

2шт.

17

D61368

PAD

Rubber, optional

2шт.

18

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

12шт.

19

129-108

NUT,3/4"-10, G5

12шт.
