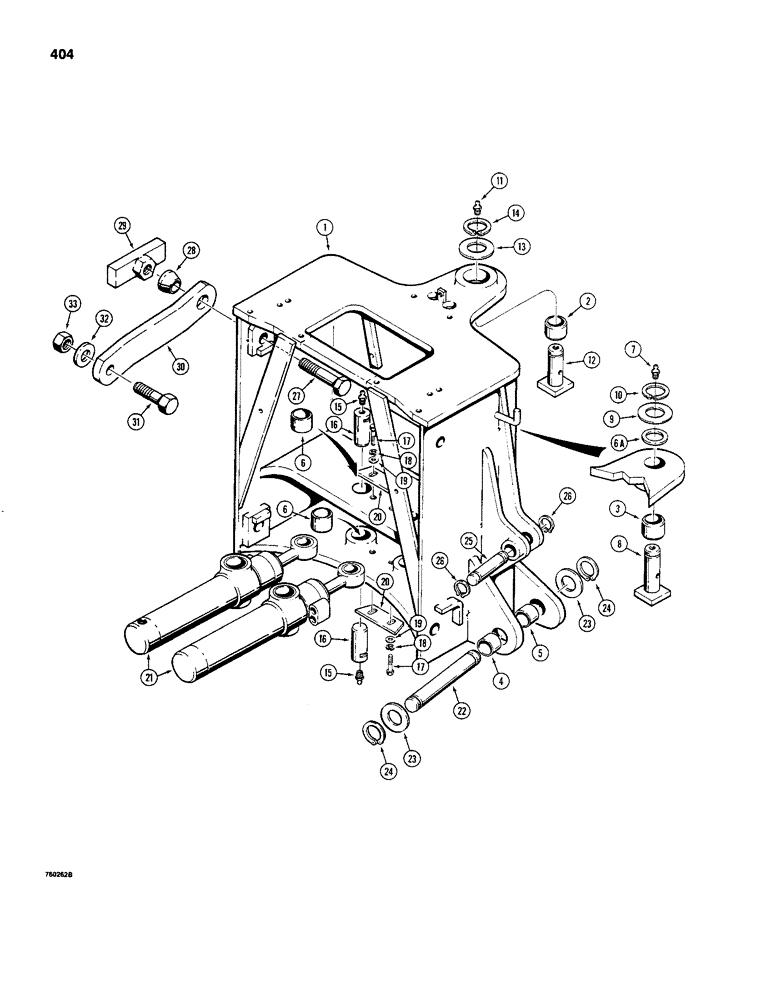

Запчасти Case 480C (404) - BACKHOE MOUNTING FRAME (84) - BOOMS, DIPPERS & BUCKETS

1

D70546

FRAME - backhoe mounting, Includes: Ref. 2 - 6A

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, top

1шт.

3

D44697

BUSHING

- frame to swing tower, bottom

1шт.

4

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- frame to stabilizer leg, rear bracket

2шт.

5

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame to stabilizer leg, front bracket

2шт.

6

D72170

BUSHING,44.48mm ID x 53.98mm OD x 31.75mm L

- frame to swing cylinder pins

4шт.

6a

D44856

SPACER

WASHER - wear, Serial Range: welded-frame

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D44733

PIN

- mounting frame to swing tower, lower

1шт.

9

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

10

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

12

D44885

PIN

- mounting frame to swing tower, upper

1шт.

13

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, special

1шт.

14

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

4шт.

16

D47259

AXLE PIN,44.32mm OD x 75.18mm L

PIN - swing cylinder to mounting frame

4шт.

17

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

18

92-8

LOCK WASHER,1/2"

4шт.

19

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

20

D39926

PLATE

- pin retaining

2шт.

21

REF

INSTRUCTION

CYLINDER - swing, see Figures 358 and 360

2шт.

22

D46404

PIN

- stabilizer leg to mounting frame

2шт.

23

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, special

4шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

25

D28037

AXLE PIN

PIN - stabilizer cylinder to mounting frame

2шт.

26

D25279

SNAP RING,M35, Int

- pin retaining

4шт.

27

113-978

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

- special, knock-off

4шт.

28

D30717

WASHER

- cone, 15 degree

4шт.

29

D99480

BLOCK

NUT - special, knock-off

4шт.

30

D70230

LINK

ARM - support, backhoe mounting frame

2шт.

31

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2"

2шт.

32

D64968

WASHER

- special

2шт.

33

25-1020

NUT,1 1/4"-7, G5

2шт.
