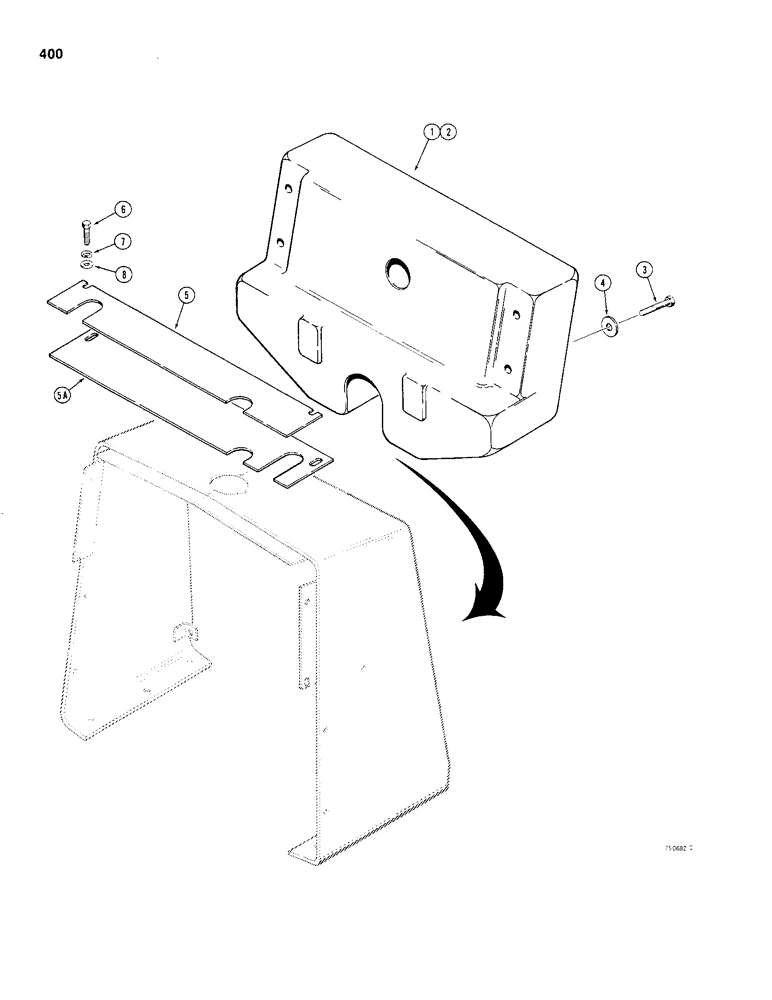

Запчасти Case 480C (400) - FRONT COUNTERWEIGHT (84) - BOOMS, DIPPERS & BUCKETS

1

D69117

COUNTER

WEIGHT - front, 500 lbs (247 kg)

1шт.

2

D69118

COUNTER

WEIGHT - front, 700 lbs (318 kg)

1шт.

3

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex head, 3/4" - 10 NC x 3-1/4", plated

4шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- special, heat treated

4шт.

5

D69352

PLATE - mounting, used before tractor SN 8967327

1шт.

5a

D76754

PLATE - mounting, used on tractor SN 8967327 and after

1шт.

6

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

2шт.
