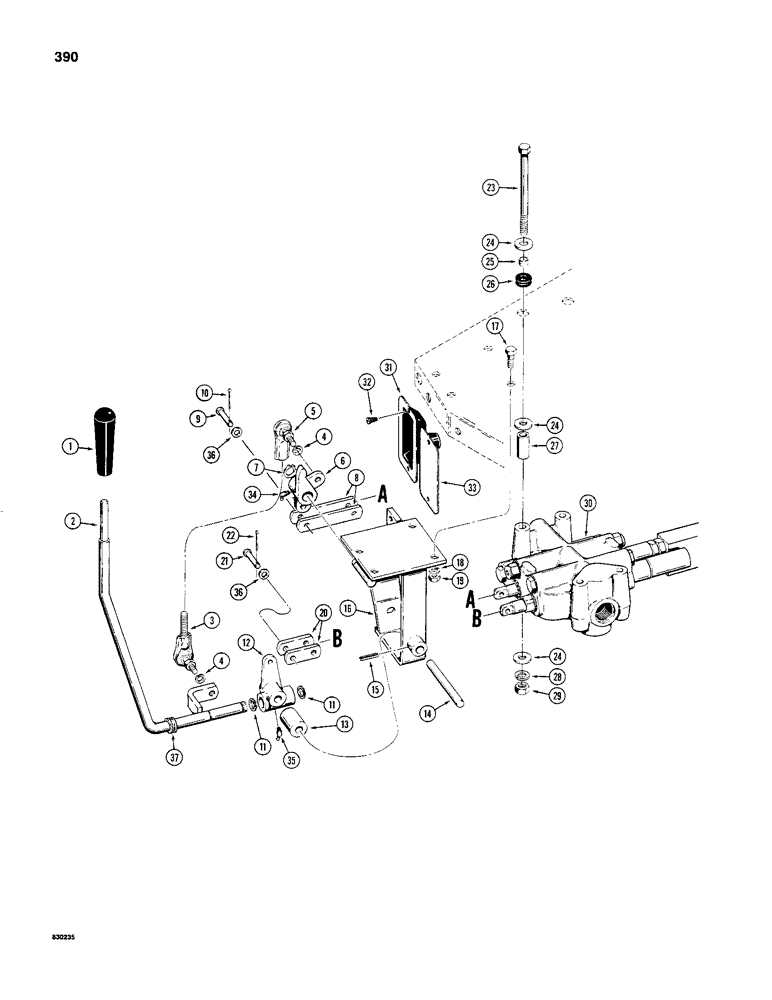

Запчасти Case 480C (390) - LOADER CONTROLS, SINGLE CONTROL LEVER, USED WITH PARKER LOADER CONTROL VALVE (84) - BOOMS, DIPPERS & BUCKETS

1

A37247

KNOB

- lever

1шт.

2

76194

SHEET METAL

LEVER - loader control, lift and tilt

1шт.

3

D64789

JOINT

BALL JOINT - tilt spool

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D64925

JOINT

BALL JOINT - tilt spool

2шт.

6

D72232

CRANK

BELLCRANK - lever

1шт.

D72232 pin (shaft) coming off p/n D72232, weldment shaft p/n D64791 or complete bracket p/n D146674

1шт.

7

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINING RING - bellcrank

1шт.

8

D64746

LINK

- connecting

2шт.

9

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Links 5/16" x .940"

2шт.

10

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

11

D95096

SNAP RING,M15.88 x 1.27mm Thk

RETAINING RING - control lever

2шт.

12

D64777

PITMAN

BLOCK - pivot

1шт.

13

D81147

SPACER

- controls

1шт.

14

D64790

SHAFT

- retaining

1шт.

15

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

16

D67594

MOUNTING PARTS

BRACKET - control lever

1шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

20

D69601

LINK

- connecting

2шт.

21

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, , Links 5/16" x .940"

2шт.

22

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

23

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

24

95-6

WASHER,3/8"

- flat, 3/8"

12шт.

25

D66017

SPACER

SLEEVE - control valve mounting

4шт.

26

D64797

GROMMET

- control valve mounting

4шт.

27

D64745

SPACER

- control valve, 1-1/2" (38 mm) long

4шт.

28

92-6

LOCK WASHER,3/8"

4шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

30

REF

INSTRUCTION

CONTROL VALVE - loader, parts list Figure 294

1шт.

31

D72302

BOOT

- control lever seal

1шт.

32

187-329

SELF-TAP SCREW,Pan, 0.19"-16 x 1/4"

SCREW - self-tapping, pan head, No. 10 x 1/2"

4шт.

33

D72241

PLATE

- control lever

1шт.

34

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 90 degree

1шт.

35

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

GREASE FITTING - 45 degree

1шт.

36

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

37

D82594

RING

- plastic, replaces metal ring on some levers

1шт.
