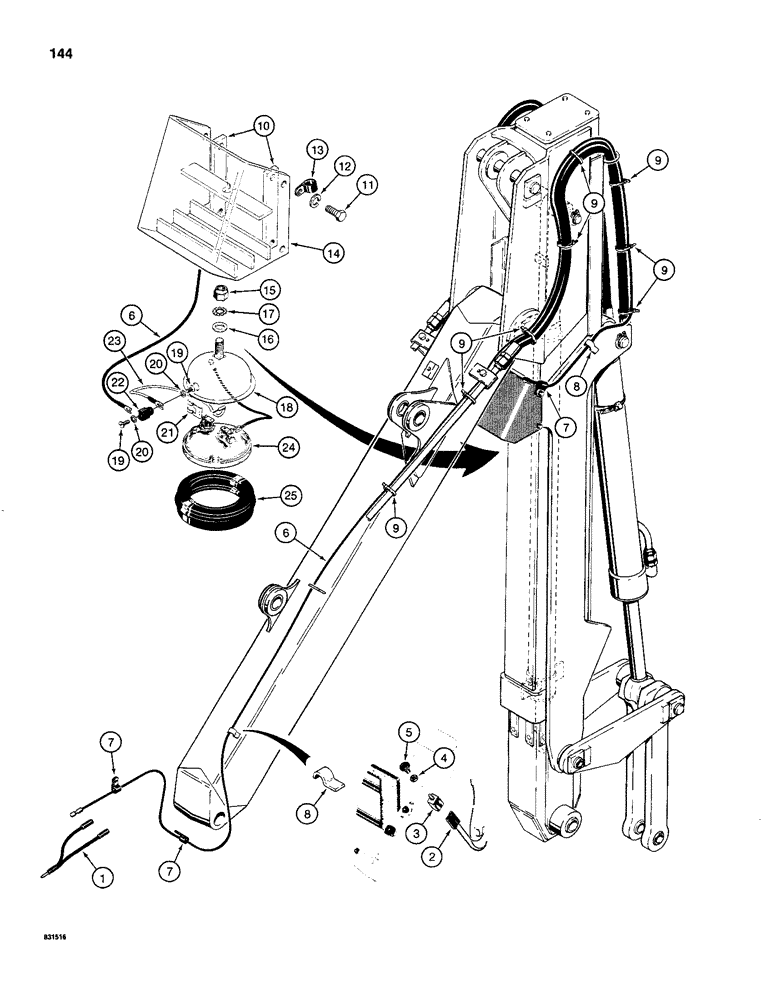

Запчасти Case 480C (144) - DIPPER LAMP, USED WITH EXTENDABLE DIPPER (55) - ELECTRICAL SYSTEMS

1

D73170

WIRE - tractor adapter, models without separate dipper lamp switch, if used

1шт.

2

D75761

HARNESS

WIRE - to dipper lamp switch, if used

1шт.

3

D74330

SWITCH

- dipper lamp, if used, Includes: Ref. 4

1шт.

4

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

5

D95783

KNOB

- dipper lamp switch

1шт.

6

D53268

ELECTRICAL WIRE

WIRE - dipper lamp

1шт.

7

80049853

YOKE

- wire

3шт.

8

D48071

CLAMP

- wire

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

10

D52595

BAR

- mounting, tapped, lamp housing, welded to dipper extension

2шт.

11

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

49859

CLAMP

- wire to lamp housing

1шт.

14

D52591

HOUSING

- dipper lamp

1шт.

15

131-1116

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC, plated

1шт.

16

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

1шт.

17

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

1шт.

D37811

LAMP

ASSEMBLY - dipper arm, Includes: Ref. 18 - 25

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

19

182-82

SCREW,Slotted Pan Hd, #8-32 x 1/4"

MACHINE SCREW - round head, No. 8 - 32 NC x 1/4", plated

2шт.

20

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

21

10927

SPRING

- lamp

1шт.

22

B50293

TERMINAL CONNECTOR

- lamp

1шт.

23

A25262

ELECTRICAL WIRE

WIRE - lamp

1шт.

24

A42294

SEALED BEAM UNIT

BULB - sealed beam, No. 4406

1шт.

25

D31441

RETAINER

- lamp

1шт.
