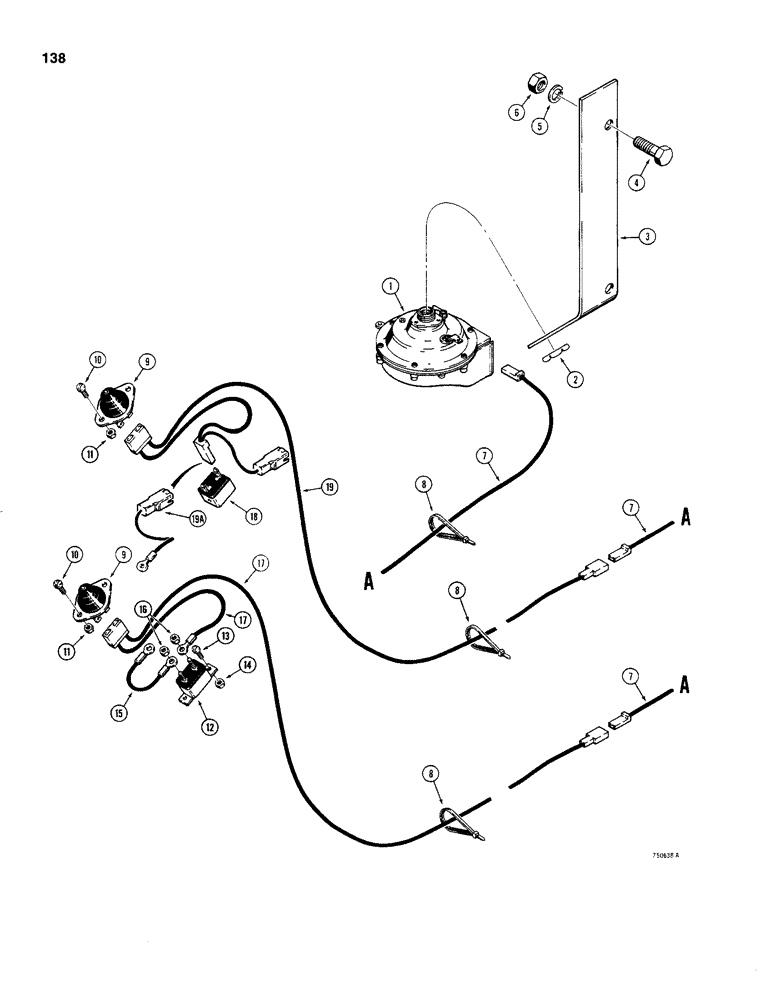

Запчасти Case 480C (138) - ELECTRIC HORN (55) - ELECTRICAL SYSTEMS

1

D123205

HORN

- 12 volt

1шт.

2

L30866

LOCK NUT

- hex, horn mounting, 7/8"

1шт.

3

D70025

BRACKET

- horn

1шт.

4

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

7

D70199

ELECTRICAL WIRE

WIRE - horn

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

9

D67872

SWITCH

BUTTON - horn

1шт.

10

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

MACHINE SCREW - pan head, slotted, No. 10 - 32 NF x 1/2"

2шт.

11

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

2шт.

12

D37252

BREAKER

CIRCUIT BREAKER - 10 amperes, used before trac s/n 8967053

1шт.

13

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

MACHINE SCREW - pan head, slotted, No. 8 - 32 NC x 1/2", plated, used before trac s/n 8967053

2шт.

14

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock, No. 8 - 32 NC, plated, used before trac s/n 8967053

2шт.

15

D67962

WIRE - jumper, used before trac s/n 8967053

1шт.

16

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated, used before trac s/n 8967053

2шт.

17

D70200

WIRE - circuit breaker to horn button and horn, order Refs. 19 and 19A, used before trac s/n 8967053

1шт.

18

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes, used on trac s/n 8967053 & aft

1шт.

19

D75818

ELECTRICAL WIRE

WIRE - circuit breaker to horn button and horn, used on trac s/n 8967053 & aft

1шт.

19a

D76214

ELECTRICAL WIRE

WIRE - adapter, will adapt D75818 wire for use on circuit breakers before tractor SN 8967053, if used, & aft

1шт.
