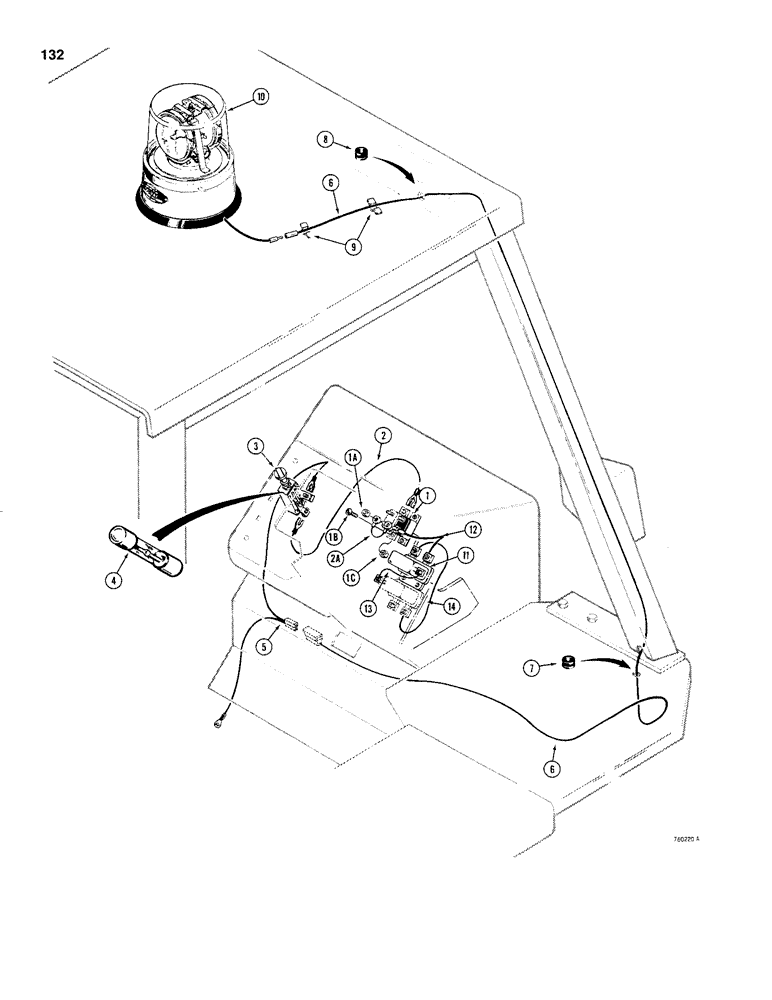

Запчасти Case 480C (132) - ROTATING BEACON AND CIRCUIT, BEFORE TRACTOR SERIAL NUMBER 8967053 (55) - ELECTRICAL SYSTEMS

1

L104329

BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

1a

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

2шт.

1b

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

MACHINE SCREW - pan head, slotted, No. 8 - 32 NC x 1/2", plated

2шт.

1c

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock, No. 8 - 32 NC, plated

2шт.

2

D76063

WIRE - breaker to beacon switch, may replace a two-piece wire on some units

1шт.

2a

D67962

WIRE - jumper, circuit breaker

1шт.

3

L16099

SWITCH

ASSEMBLY - beacon, Includes: Ref. 4

1шт.

4

223-20

FUSE,20 Amp, Type SFE

- SFE 20

1шт.

5

D72915

WIRE - beacon and wiper, with eye terminal, order Refs. 5A and 5B

1шт.

5a

D75955

ELECTRICAL WIRE

WIRE - beacon and wiper, with spade connector, not shown

1шт.

5b

D76214

ELECTRICAL WIRE

WIRE - adapts spade connector to circuit breaker studs, not shown

1шт.

6

D72914

ELECTRICAL WIRE

WIRE - beacon switch to beacon wire, canopy only

1шт.

7

D37936

GROMMET

- wire

1шт.

8

L10082

GROMMET

- wire

1шт.

9

F93268

CLIP

- wire

2шт.

10

REF

INSTRUCTION

ROTATING BEACON - parts list Figure 136

1шт.

11

L103526

RELAY

- electrical

1шт.

12

D67961

WIRE - circuit, Serial Range: breaker-relay

1шт.

13

D72922

WIRE - No. 1 relay terminal connecting

1шт.

14

D72939

ELECTRICAL WIRE

WIRE - No. 3 relay terminal connecting

1шт.
