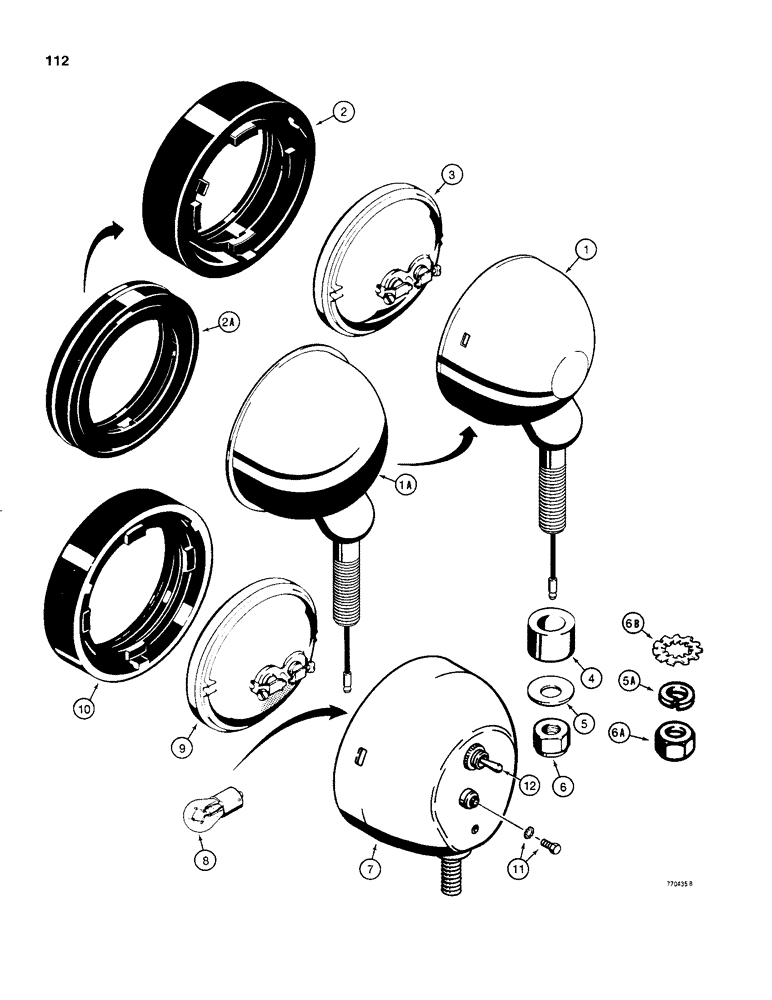

Запчасти Case 480C (112) - TRACTOR LAMPS, D88684 REAR FLOOD LAMP (55) - ELECTRICAL SYSTEMS

D88684

LAMP

FLOOD LAMP ASSEMBLY - rear, interchangeable with D49976, Includes: Ref. 1 - 6B

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. 2 only

1шт.

1a

NSS

NOT SOLD SEPARAT

SHELL - lamp, accepts Ref. 2A only

1шт.

2

A25213

RETAINER

- lamp, rubber, locks to shell with three tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - lamp, rubber, locks over shell flange, if used

1шт.

3

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

4

D37048

BUSHING

- pivot

1шт.

5

195-106

WASHER,1/2"

- flat, 1/2"

1шт.

5a

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Not used 1/2"

1шт.

6

131-28

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2" - 20 NF, plated, if used

1шт.

6a

129-165

JAM NUT,Jam, 1/2"-20, G5

If used Jam, 1/2"-20, G5

1шт.

6b

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

2шт.

D70115

LAMP

ASSEMBLY - flood and tail, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

SHELL - lamp, D70115 flood & tail

1шт.

8

33686

BULB

- tail, No. 1141, D70115 flood lamp

1шт.

9

D71409

BULB

- sealed beam, No. 4409X, D70115 flood & tail lamp

1шт.

10

A25213

RETAINER

- sealed beam, D70115 flood & tail lamp

1шт.

11

193-543

SCREW,Hex Was Hd, #8-32 x 3/8"

AND LOCK WASHER ASSEMBLY - No. 8 - 32 NC x 3/8", D70115 flood & tail lamp

1шт.

12

D80517

SWITCH

- includes wire, toggle type, D70115 flood & tail lamp

1шт.
