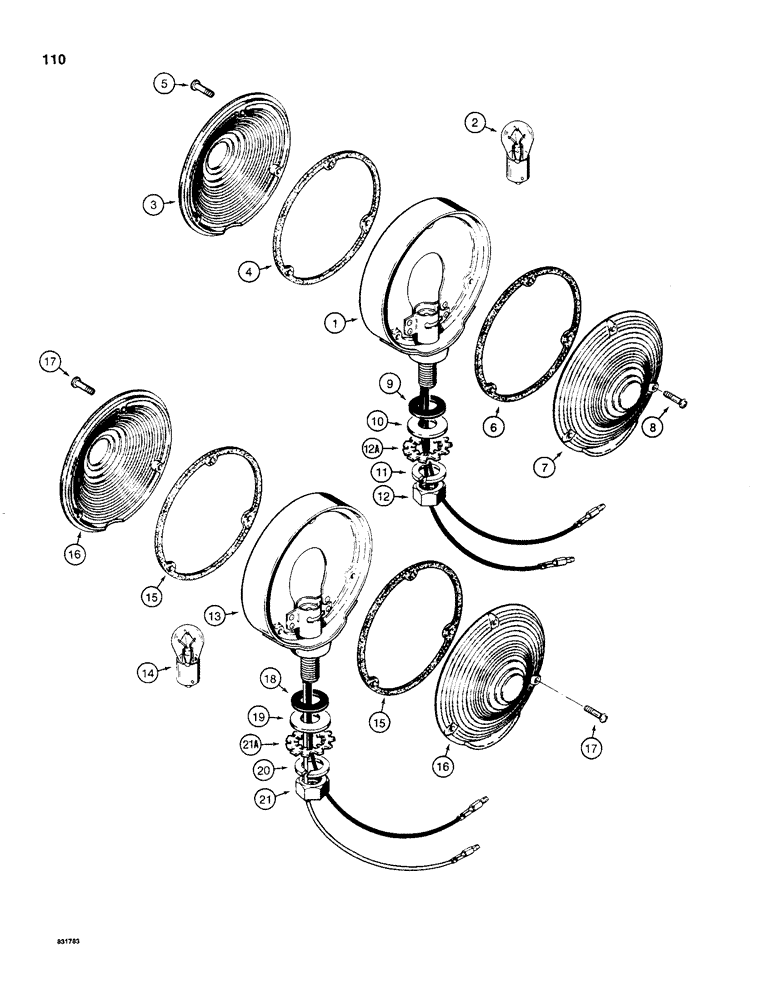

Запчасти Case 480C (110) - TRACTOR LAMPS, D49733 STOP AND TAIL LAMP (55) - ELECTRICAL SYSTEMS

D49733

LAMP

ASSEMBLY - stop and tail, Includes: Ref. 1 - 12

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - lamp, stop and tail

1шт.

2

T34857

BULB,C6, #1157, 12.8V

- No. 1157

1шт.

L32213

LENS

KIT - lens replacement, red, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - red

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

5

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- round head, No. 6 - 32 NC x 5/8

3шт.

L32214

LENS

KIT - lens replacement, amber, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

7

NSS

NOT SOLD SEPARAT

LENS - amber

1шт.

8

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- round head, No. 6 - 32 NC x 5/8"

3шт.

9

L32256

WASHER

BUSHING - rubber, not used

1шт.

10

195-105

WASHER,7/16"

- flat, 1/2", plated, not used

1-2шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Not used 1/2"

1шт.

12

129-125

NUT,1/2"-20, G5

1шт.

12a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used Ext-Int Tooth, 1/2"

2шт.

D122121

LAMP,12V

ASSEMBLY - signal and flasher, Includes: Ref. 13 - 21

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - lamp, signal and flasher, replaces lamp body without additional ground wire on some models, D122121

1шт.

14

A41264

BULB,#1156, 12V

KIT - lens replacement, D122121 Signal & flasher lamp, Includes Ref. 15 - 17

2шт.

15

NSS

NOT SOLD SEPARAT

GASKET - lens, D122121 signal & flasher lamp

1шт.

16

NSS

NOT SOLD SEPARAT

LENS - amber, D122121 signal & flasher lamp

1шт.

17

173-279

SCREW,Sl Rnd Hd, #6 - 32 x 5/8"

- round head, No. 6 - 32 NC x 5/8", D122121 signal & flasher lamp

3шт.

18

L32256

WASHER

BUSHING - rubber, not used, D122121 signal & flasher lamp

1шт.

19

195-105

WASHER,7/16"

- flat, 1/2", plated, not used, D122121 signal & flasher lamp

1-2шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Not used, D122121 signal & flasher lamp 1/2"

1шт.

21

129-125

NUT,1/2"-20, G5

D122121 Signal & flasher lamp 1/2"-20, G5

1шт.

21a

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , If used, D122121 signal & flasher lamp Ext-Int Tooth, 1/2"

2шт.
