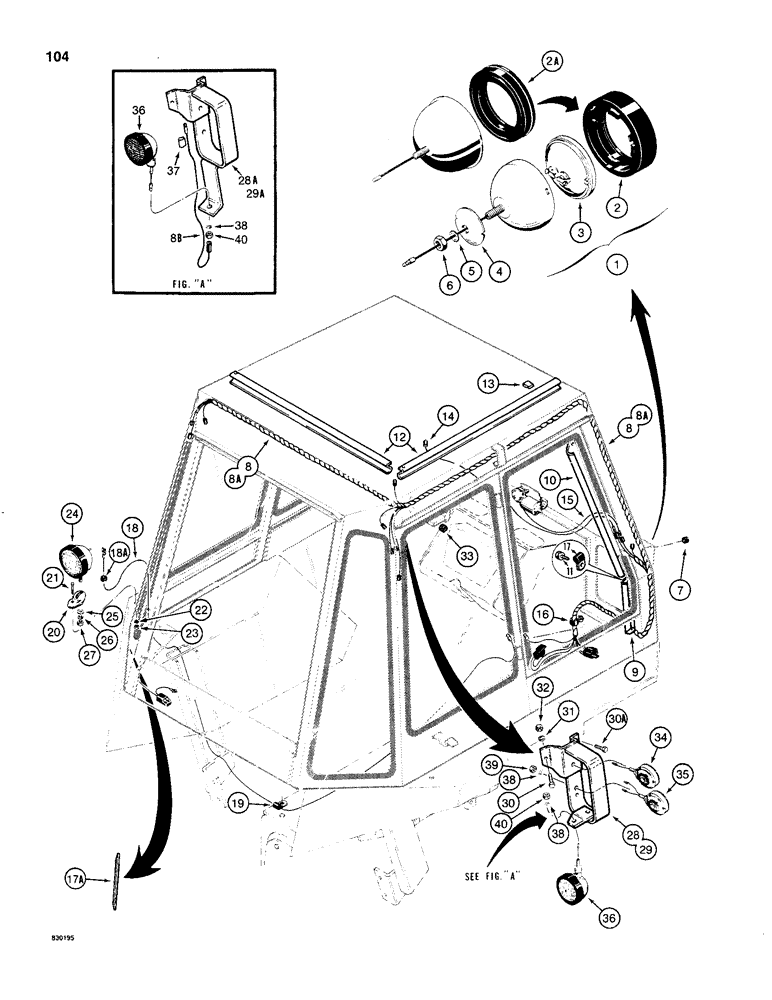

Запчасти Case 480C (104) - CAB ELECTRICAL SYSTEM AND LAMPS (55) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 2, 2A and 3

2шт.

2

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

2a

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

3

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

4

A59702

RETAINER

WASHER - retainer

2шт.

5

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

7

353-700

BUSHING

GROMMET - rubber

2шт.

8

F43962

WIRE HARNESS

HARNESS - cab, used before cab SN 7867204, order 8A and 8B

1шт.

8a

F44608

HARNESS

- cab, used on cab SN 7867204 and after

1шт.

8b

F44607

ELECTRICAL WIRE

WIRE - harness extension, can be used to adapt F43962 harness for use on cab SN 7867204 and after

2шт.

9

F44338

CHANNEL

- lower front, wire

1шт.

10

F44337

CHANNEL

- upper front, wire

1шт.

11

187-1046

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, 3/8" - 16 NC x 5/8", plated

4шт.

12

F44339

CHANNEL

- upper, wire

2шт.

13

F44407

CLIP

- wire

10шт.

14

R37316

ELECTRICAL WIRE

WIRE - to left-hand front lamp

1шт.

15

R37315

ELECTRICAL WIRE

WIRE - to front windshield wiper

1шт.

16

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- cab harness

1шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- cab harness

1шт.

17a

R37440

STRIP

COVER - harness wire, to rear windshield wiper

1шт.

18

D91117

ELECTRICAL WIRE

WIRE - rear fender lamp

1шт.

18a

D37936

GROMMET

- rubber, wire, used with fender mounted rear lamp

1шт.

19

49859

CLAMP

- wire, used with fender mounted rear lamp

1шт.

20

A34046

BRACKET

- used with fender mounted rear lamp

1шт.

21

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used w/ fender mounted rear lamp Hex, 3/8"-16 x 1 1/2", G5

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/ fender mounted rear lamp 3/8"

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ fender mounted rear lamp 3/8"-16, G5

1шт.

24

D70115

LAMP

lood and tail, parts list Figure 112, used with fender mounted rear lamp

1шт.

25

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used with fender mounted rear lamp

1шт.

26

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used w/ fender mounted rear lamp 1/2"

1шт.

27

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/fender mounted rear lamp 1/2"-13, G5

1шт.

28

F96596

PLATE

BRACKET - optional mounting, right-hand, used before cab SN 7867204, used w/ upper rear lamp & flashers

1шт.

28a

F96702

FRAME

BRACKET - optional mounting, right-hand, used on cab 7867204 and after, used w/ upper rear lamp & flashers

1шт.

29

F96595

PLATE

BRACKET - optional mounting, left-hand, used before cab SN 7867204, used w/ upper rear lamp & flashers

1шт.

29a

F96701

FRAME

BRACKET - optional mounting, left-hand, used on cab 7867204 and after, used w/ upper rear lamp & flashers

1шт.

30

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used w/ upper rear lamp & flashers Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

30a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Used w/ upper rear lamp & flashers Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/ upper rear lamp & flashers 3/8"

4шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ upper rear lamp & flashers 3/8"-16, G5

4шт.

33

A23870

GROMMET

- wire, used w/ upper rear lamp & flashers

2шт.

34

D122121

LAMP,12V

ASSEMBLY - flasher, parts list Figure 110, used w/ upper rear lamp

2шт.

35

D49733

LAMP

ASSEMBLY - stop and tail, parts list Figure 110, used w/ upper rear lamp & flashers

2шт.

36

D88684

LAMP

ASSEMBLY - flood, parts list Figure 112, used w/ upper rear lamp & flashers

2шт.

37

214-1105

CLIP

- wire, if used, used w/ upper rear lamp & flashers

10шт.

38

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used w/ upper rear lamp & flashers Ext-Int Tooth, 1/2"

6шт.

39

129-125

NUT,1/2"-20, G5

Used w/ upper rear lamp & flashers 1/2"-20, G5

2шт.

40

131-28

LOCK NUT,1/2"-20, GB

NUT- hex, self-locking, 1/2" - 20 NF, plated, used w/ upper rear lamp & flashers

2шт.
