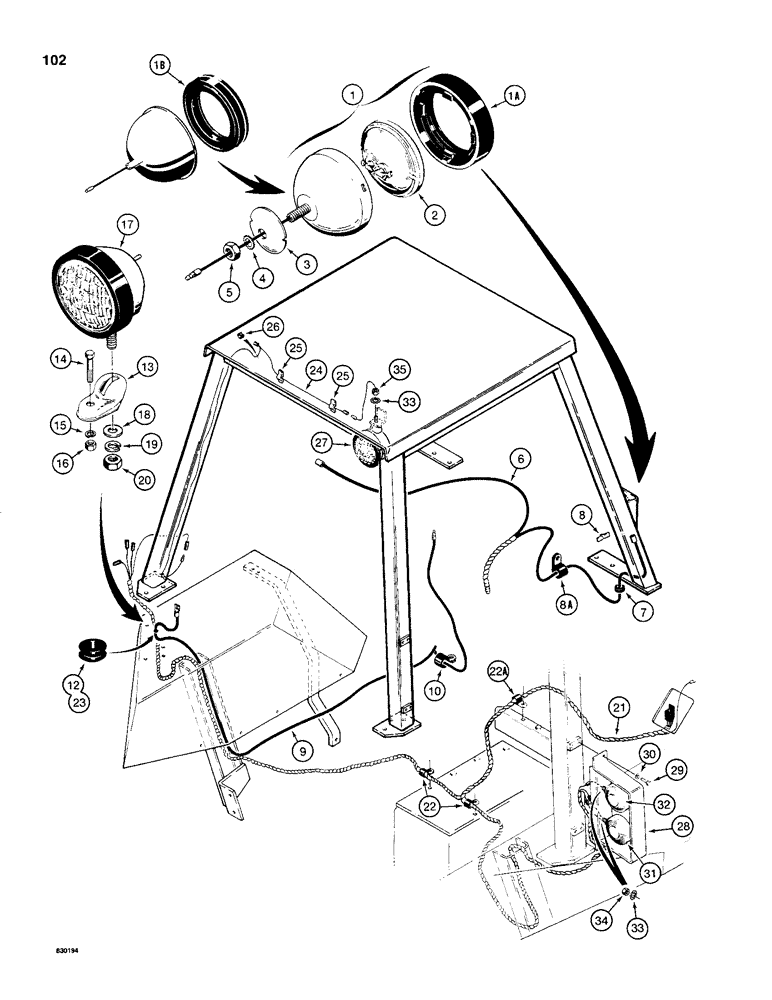

Запчасти Case 480C (102) - CANOPY ELECTRICAL SYSTEM AND LAMPS (55) - ELECTRICAL SYSTEMS

1

D88547

LAMP BASE

LAMP ASSEMBLY - front, interchangeable with A59701 lamp, Includes: Ref. 1A, 1B and 2

2шт.

1a

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

1b

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

2

A11280

LAMP

BULB - sealed beam, No. 4411

1шт.

3

A59702

RETAINER

WASHER - retainer

2шт.

4

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

6

D88626

HARNESS

WIRE - front lamps

1шт.

7

49561

GROMMET,1/4" ID x 7/16" Groove Dia

- rubber

1шт.

8

F93268

CLIP

- wire, stick on type

5шт.

8a

49853

TOOL

- wire

3шт.

9

D91117

ELECTRICAL WIRE

WIRE - rear fender lamp, used w/ mounted

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wire, used w/ fender mounted rear lamp

1шт.

11

RESERVED, used w/ fender mounted rear lamp

1шт.

12

D37936

GROMMET

- rubber, used w/ fender mounted rear lamp

1шт.

13

A34046

BRACKET

- rear fender lamp, mounted

1шт.

14

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Used w/ fender mounted rear lamp Hex, 3/8"-16 x 1 1/2", G5

1шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Used w/ fender mounted rear lamp 3/8"

1шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ fender mounted rear lamp 3/8"-16, G5

1шт.

17

D70115

LAMP

- flood and tail, parts list Figure 112, used w/ fender mounted rear lamp

1шт.

18

195-533

WASHER,1/2", SAE

- flat, 1/2", plated, used w/ fender mounted rear lamp

1шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Used w/ fender mounted rear lamp 1/2"

1шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

Used w/fender mounted rear lamp 1/2"-13, G5

1шт.

21

D88628

HARNESS

- used w/ upper rear lamp & flashers

1шт.

22

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- harness, used w/ upper rear lamp & flashers

2-3шт.

22a

49838

CLAMP

- harness, used w/ upper rear lamp & flashers

1шт.

23

D37936

GROMMET

- rubber, used w/ upper rear lamp & flashers

2шт.

24

D88627

HARNESS

- interchangeable with D72923 harness, used w/ upper rear lamp & flashers

1шт.

25

F93268

CLIP

- wire, stick on type, used w/ upper rear lamp & flashers

2шт.

26

L10082

GROMMET

- rubber, used w/ upper rear lamp & flashers

1шт.

27

D88684

LAMP

ASSEMBLY - rear flood, parts list Figure 112, used w/ upper rear lamp & flashers

2шт.

28

D75557

BRACKET

-mounting, used w/ upper rear lamp & flashers

2шт.

29

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Used w/ upper rear lamp & flashers Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Used w/ upper rear lamp & flashers 5/16"

4шт.

31

D49733

LAMP

- stop and tail, parts list Figure 110, used w/ upper rear lamp & flashers

2шт.

32

D122121

LAMP,12V

parts list Figure 110, used w/ upper rear lamp & flashers

2шт.

33

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , Used w/ upper rear lamp & flashers Ext-Int Tooth, 1/2"

6шт.

34

129-125

NUT,1/2"-20, G5

Used w/ upper rear lamp & flashers 1/2"-20, G5

4шт.

35

131-28

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2" - 20 NF, plated, used w/ upper rear lamp & flashers

2шт.
