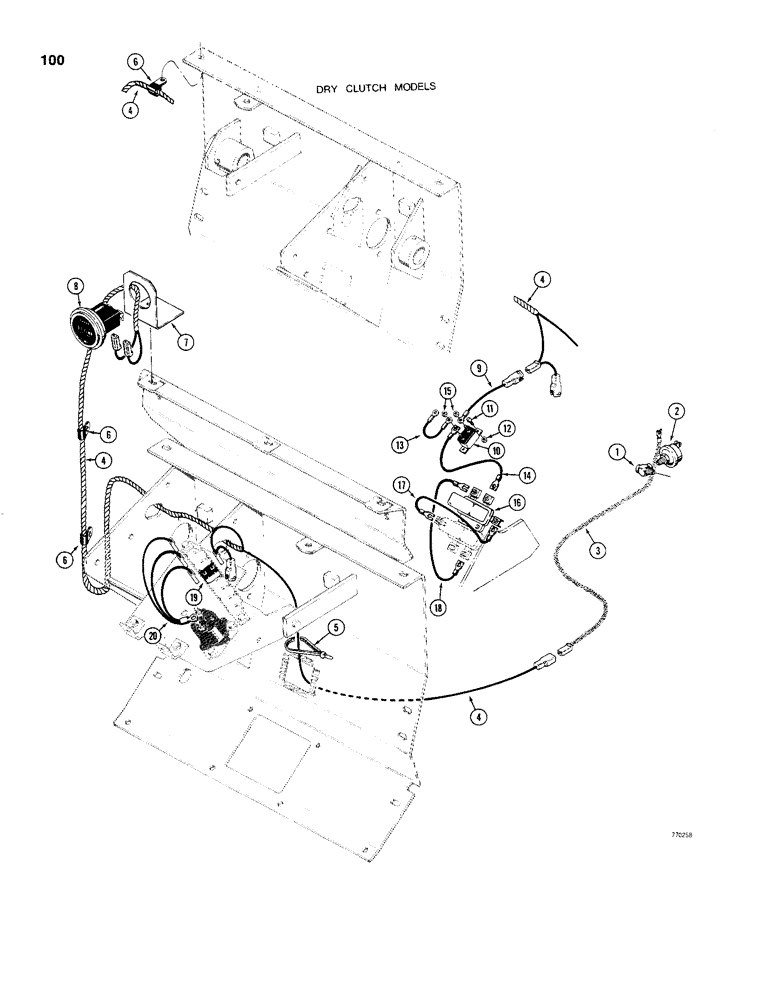

Запчасти Case 480C (100) - HOURMETER ELECTRICAL SYSTEM (55) - ELECTRICAL SYSTEMS

1

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- 1/8" NPT, at engine

1шт.

2

D65458

SWITCH

SENDER - hourmeter, at engine

1шт.

3

D92170

CABLE

WIRE - from sender

1шт.

4

D76118

HARNESS

- hourmeter

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

80049853

YOKE

- wire retaining

2шт.

7

D75592

BRACKET

- hourmeter

1шт.

8

D53047

GAUGE

HOURMETER ASSEMBLY - complete

1шт.

9

D76214

ELECTRICAL WIRE

WIRE - hourmeter harness to circuit breaker, used before trac s/n 8967053

1шт.

10

L104329

BREAKER

CIRCUIT BREAKER - 15 amperes, used before trac s/n 8967053

1шт.

11

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- pan head, slotted, No. 8 - 32 NC, plated, used before trac s/n 8967053

2шт.

12

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock No. 8 - 32 NC, plated, used before trac s/n 8967053

2шт.

13

D67962

WIRE - jumper, breaker to breaker, used before trac s/n 8967053

1шт.

14

D67961

WIRE - breaker to relay, used before trac s/n 8967053

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated, used before trac s/n 8967053

2шт.

16

L103526

RELAY

- electrical, used before trac s/n 8967053

1шт.

17

D72922

WIRE - No. 1 relay terminal connecting, used before trac s/n 8967053

1шт.

18

D72939

ELECTRICAL WIRE

WIRE - No. 2 relay terminal connecting, used before trac s/n 8967053

1шт.

19

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes, used on trac s/n 8967053 & aft

1шт.

20

D75225

ELECTRICAL WIRE

WIRE - circuit breaker to solenoid, used on trac s/n 8967053 & aft

1шт.
