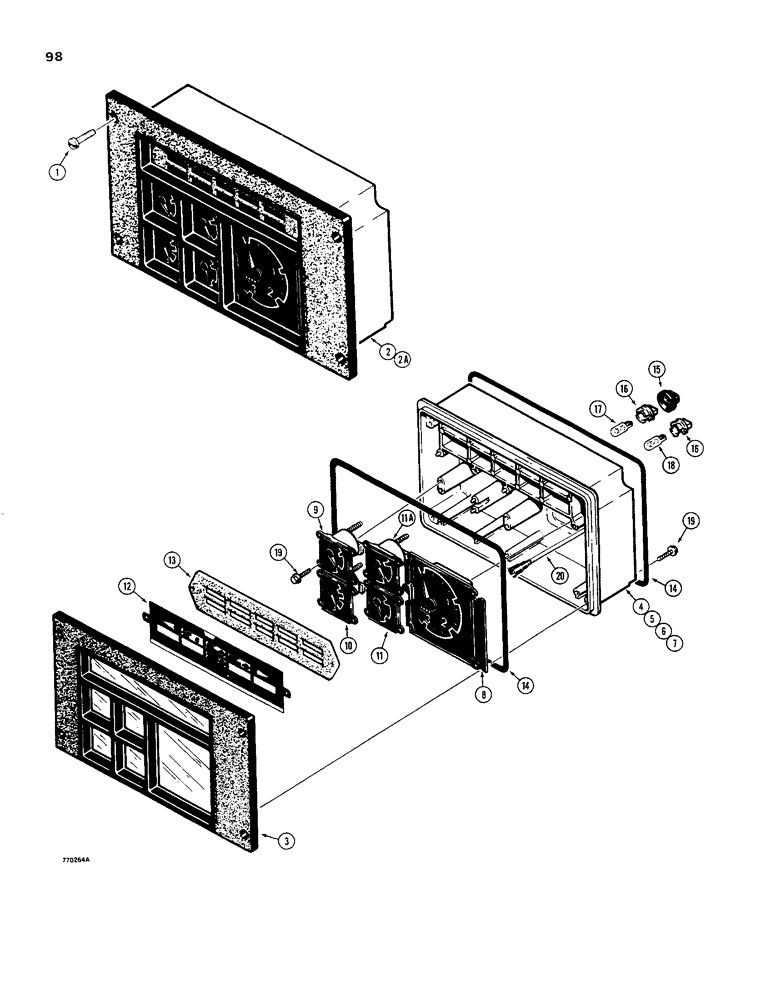

Запчасти Case 480C (098) - INSTRUMENT CLUSTER (55) - ELECTRICAL SYSTEMS

1

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, No. 10 - 24 NC x 1/2", plated

4шт.

2

D67149

CLUSTER

INSTRUMENT CLUSTER - mechanical shuttle models only

1шт.

2a

D91122

CLUSTER

INSTRUMENT CLUSTER - power shuttle models only, Includes: Ref. 3 - 19

1шт.

3

D71334

LENS

COVER - instrument cluster

1шт.

D71335

CASE ASSY.

CASE ASSEMBLY - instrument cluster, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

CASE - instrument cluster

1шт.

5

H422744

BOARD, PRINTED CIRCU

CIRCUIT BOARD - printed

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP - gauges

12шт.

7

NSS

NOT SOLD SEPARAT

GASKET - case, back cover

1шт.

8

N6805

TACHOMETER

GAUGE - tachometer

1шт.

9

N6806

ELECTRICAL GAUGE

GAUGE - water temperature

1шт.

10

A47688

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

11

N6807

ELECTRICAL GAUGE

GAUGE - voltmeter

1шт.

11a

N6808

GAUGE

- oil temperature, used on power shuttle models only

1шт.

12

N6809

INDICATOR

LENS - identification, warning lamps

1шт.

13

D71342

GASKET,3.05mm Thk

- lens

1шт.

14

D71343

GASKET,4.45mm Thk x 249.68mm ID

- cluster

2шт.

15

D71344

COVER

- rubber

3шт.

16

A47125

PEDESTAL

SOCKET - lamp, green

10шт.

17

W10478

LAMP

BULB - cluster, No. 194

3шт.

18

D71346

TAIL LAMP,12V

BULB - cluster, No. 168

6-7шт.

19

A45093

SCREW,Hex Slotted, 12.70"

- special

12шт.

20

D68851

CABLE

- tachometer drive

1шт.
