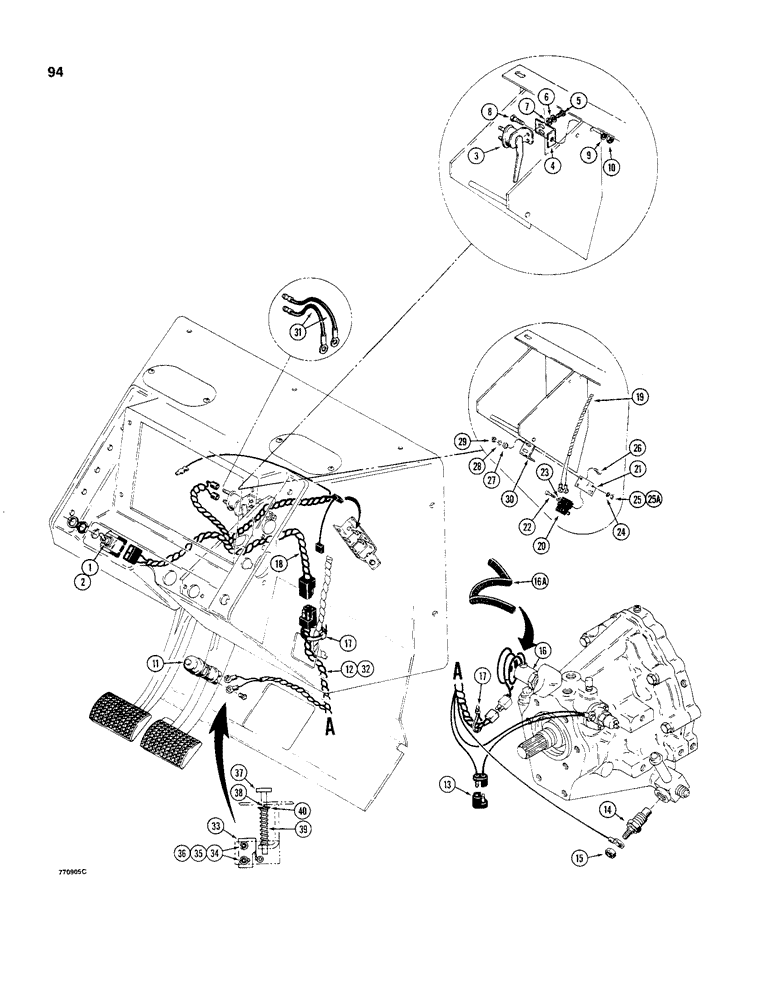

Запчасти Case 480C (094) - POWER SHUTTLE ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

D67251

SWITCH

- clutch cutout, dash mounted, includes hardware

1шт.

2

D73929

PLATE

- clutch cutout switch

1шт.

3

A33977

SWITCH

- clutch cutout, brake pedal, lever actuated, if used, see Ref. 20 below

1шт.

4

D73915

BRACKET

- brake switch, if used, see Ref. 21 below

1шт.

5

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- No. 10 - 32 NF x 3/8", if used

2шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , If used #10

2шт.

7

195-513

WASHER,#10

- flat, No. 10, plated, if used

2шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

If used Hex, 1/4"-20 x 1", G5

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , If used 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, If used

1шт.

11

D71139

SWITCH

- clutch cutout, floor, includes No. 10 terminal screws, Includes: Ref. 11A

1шт.

11a

L60490

BUTTON

COVER - rubber, D71139 switch, not illustrated

1шт.

12

D73919

HARNESS

- clutch cutout, lower, has terminals for No. 10 screws on Ref. 11

1шт.

13

L71879

DIODE ELEMENT,400V, 3A

DIODE - switch protecting

1шт.

14

D65446

SENDER UNIT

SENDER - transmission temperature

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

1шт.

16

D67903

SOLENOID

- clutch cutout, at shuttle

1шт.

16a

D84688

GUARD

- solenoid wires, if used

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

D75025

HARNESS

- clutch cutout, upper

1шт.

19

D88560

HARNESS

- clutch cutout, upper, used on trac s/n 8968544 & aft

1шт.

20

D40921

SWITCH

- clutch cutout, brake pedal, roller actuated, used on trac s/n 8968544 & aft

1шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

21

D81326

BRACKET

- brake switch, used on trac s/n 8968544 & aft

1шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

22

169-165

SCREW - No. 6 - 32 NC x 1-1/8", plated, used on trac s/n 8968544 & aft

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

23

195-507

WASHER,#6

- flat, No. 6, plated, used on trac s/n 8968544 & aft

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

24

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, , Used on tractor S/N 8968544 & aft Ext-Int Tooth, #6

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

25

129-15

NUT,#6-32

Used on tractor S/N 8968544 & aft #6-32

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

25a

193-1003

NUT,Keps, w/LW,#6-32

- hex, special lock, No. 6 - 32 NC, plated, used in place of Refs. 24 and 25 on some models, used on trac s/n 8968544 & aft

2шт.

26

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Used on trac S/N 8968544 & aft Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

27

195-18

WASHER,1/4"

- flat, , used on trac s/n 8968544 & aft 1/4"

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on tractor S/N 8968544 & aft 1/4"

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Used on trac S/N 8968544 & aft

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

30

D88356

BRACKET

- switch mounting, welded to frame, used on trac s/n 8968544 & aft

1шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

31

D82525

WIRE - jumper, harness to switch, adapts D75025 harness (item 18) to D40921 switch, special parts

2шт.

Can be used to adapt roller actuated switch to tractors before SN 8968544.

1шт.

32

D88556

HARNESS

- clutch cutout, lower, has terminals for No. 6 screws on Ref. 33, used on trac s/n 8981142 & aft

1шт.

33

D40921

SWITCH

- clutch cutout, floor, roller actuated, includes No. 6 terminal screws, used on trac s/n 8981142 & aft

1шт.

34

169-165

SCREW - No. 6 - 32 NC x 1-1/8", plated, used on trac s/n 8981142 & aft

2шт.

35

195-507

WASHER,#6

- flat, No. 6, plated, used on trac s/n 8981142 & aft

2шт.

36

193-1003

NUT,Keps, w/LW,#6-32

- hex, special lock, No. 6 - 32 NC, plated, used on trac s/n 8981142 & aft

2шт.

37

D84327

ROD

- switch actuating, used on trac s/n 8981142 & aft

1шт.

38

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Used on tractor S/N 8981142 & aft 1/8" x 1", Slotted

1шт.

39

T34088

SPRING

- rod return, used on trac s/n 8981142 & aft

1шт.

40

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, used on trac s/n 8981142 & aft

1шт.
