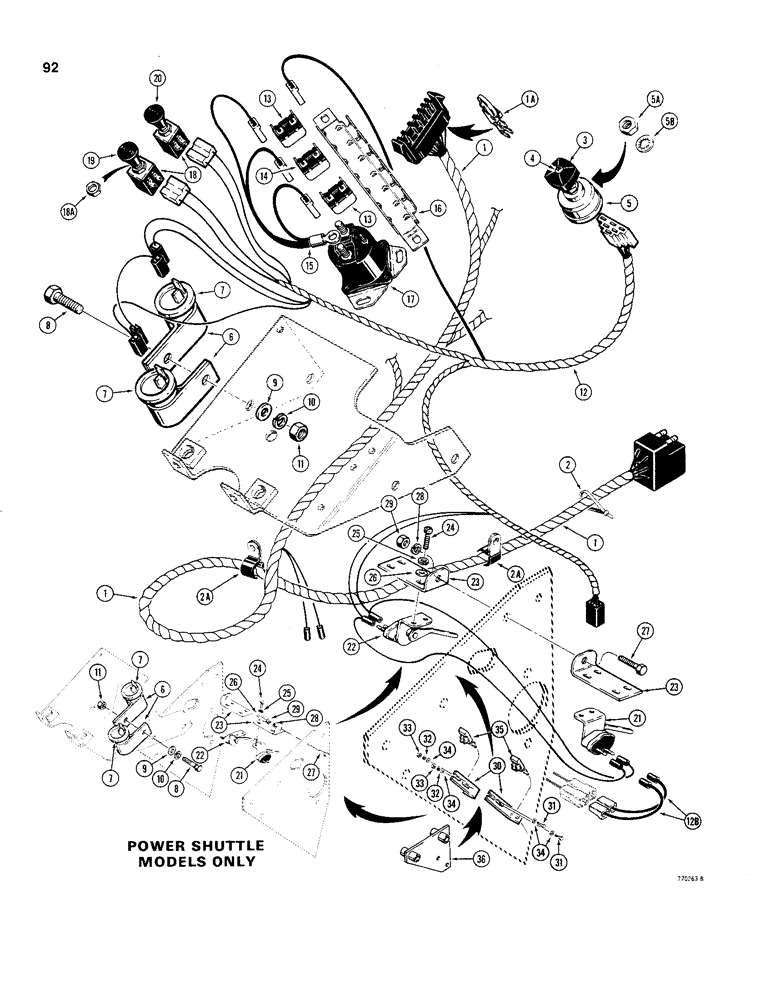

Запчасти Case 480C (092) - ELECTRICAL CIRCUIT, MAIN HARNESS & CONNECTIONS, MODELS W/ FLASHER LAMPS, TRAC. S/N 8967053 AND AFTER (55) - ELECTRICAL SYSTEMS

1

D88562

HARNESS

- main, interchangeable with D75027 harness, Includes: Ref. 1A

1шт.

1a

H339523

TERMINAL CONNECTOR

CLIP - wires at plug

18шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

2a

49838

CLAMP

- wire

2шт.

3

A20465

KNOB

- turn signal switch

1шт.

4

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

5

D52008

SWITCH

- turn signal

1шт.

5a

A20467

NUT

- special, 11/16" - 28 NF x 28, switch mounting

1шт.

5b

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, , If used Int Tooth, 3/4"

1шт.

6

A34868

CLAMP

- flasher mounting

2шт.

7

A65550

FLASHER UNIT

FLASHER - 12 volt

2шт.

A65550 flasher - Effective Sept. 1985 was replaced by D133000 flasher.

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

D75958

WIRE HARNESS

HARNESS - lamps and flashers, before SN 8980956, order Refs. 12A and 12B

1шт.

12a

D88630

HARNESS

- lamps and flashers, SN 8980956 and after, not shown

1шт.

12b

D86303

ELECTRICAL WIRE

WIRE - jumper, adapts D88630 harness to lever type stop lamp switches

4шт.

13

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

2шт.

14

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

15

D75225

ELECTRICAL WIRE

WIRE ASSEMBLY -, Serial Range: solenoid-breakers

1шт.

16

REF

INSTRUCTION

BRACKET - circuit breaker, see Figure 86

1шт.

17

REF

INSTRUCTION

SOLENOID - electrical, see Figure 86

1шт.

18

D74330

SWITCH

- lamp, Includes: Ref. 18A

2шт.

18a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

19

D95783

KNOB

- floodlamp

1шт.

20

D95782

KNOB

- flasher

1шт.

21

A33976

SWITCH

- stop, right-hand, lever type

1шт.

22

A33977

SWITCH

- stop, left-hand, lever type

1шт.

23

D70492

BRACKET

- brake switch mounting

2шт.

24

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head, slotted, No. 10 - 32 NF x 3/8", plated

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

26

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

27

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1-2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1-2шт.

30

D84102

BRACKET

- stop lamp switch, see Figure 228, Ref. 25A for mounting plate

2шт.

31

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

33

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

34

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

35

D84030

SWITCH

- stop lamp, plunger type

2шт.
