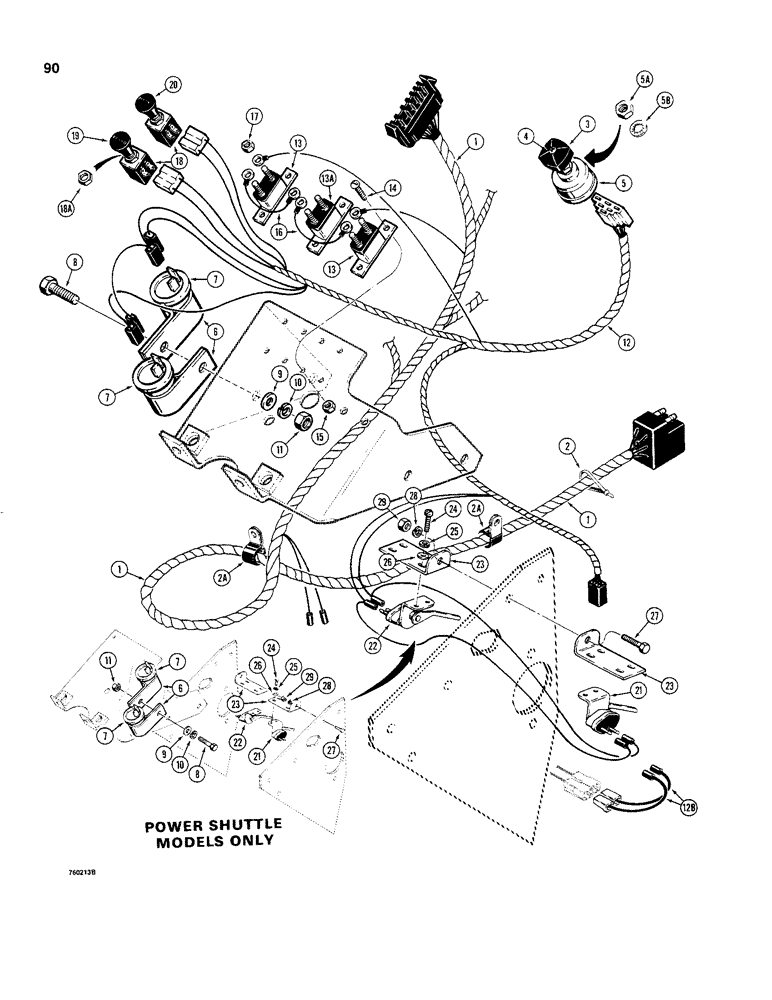

Запчасти Case 480C (090) - ELECTRICAL CIRCUIT, MAIN HARNESS & CONNECTIONS, MODELS W/ FLASHER LAMPS, BEFORE TRACTOR S/N 8967053 (55) - ELECTRICAL SYSTEMS

1

D67956

HARNESS

- main

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

2a

49838

CLAMP

- wire

2шт.

3

A20465

KNOB

- turn signal switch

1шт.

4

A20468

SCREW,Spcl, #8 - 32 x 5/16"

- knob retaining

1шт.

5

D52008

SWITCH

- turn signal

1шт.

5a

A20467

NUT

- special, 11/16" - 28 NF, switch mounting

1шт.

5b

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, , If used Int Tooth, #8

1шт.

6

A34868

CLAMP

- flasher mounting

2шт.

7

A65550

FLASHER UNIT

FLASHER - 12 volt

2шт.

A65550 flasher - Effective Sept. 1985 was replaced by D133000 flasher.

1шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

9

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

11

9635082

NUT,5/16" - 18, Gr 5

1шт.

12

D72921

HARNESS

- lamps and flashers, no longer available, order (1) D88630 harness, (4) D86303 blade connector wires, and (1) D76214 eyelet connector wire

1шт.

12a

D88630

HARNESS

- lamps and flashers, not shown

1шт.

12b

D86303

ELECTRICAL WIRE

WIRE - jumper, adapts D88630 harness to lever type stop lamp switches

4шт.

12c

D76214

ELECTRICAL WIRE

WIRE - eyelet connector, adapts D88630 harness with blade connector at circuit breaker, to circuit breaker with studs, not shown

1шт.

13

L104329

BREAKER

CIRCUIT BREAKER - 15 amperes

2шт.

13a

D37252

BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

14

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- pan head, slotted, No. 8- 32 NC x 1/2", plated

6шт.

15

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock, No. 8 - 32 NC, plated

6шт.

16

D67962

WIRE - jumper, circuit breakers

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

6шт.

18

D74330

SWITCH

- lamp, Includes: Ref. 18A

2шт.

18a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

19

D95783

KNOB

- flood lamp

1шт.

20

D95782

KNOB

- flasher

1шт.

21

A33976

SWITCH

- stop, right-hand, lever type

1шт.

22

A33977

SWITCH

- stop, left-hand, lever type

1шт.

23

D70492

BRACKET

- brake switch mounting

2шт.

24

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head, slotted, No. 10 - 32 NF x 3/8", plated

4шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

26

195-513

WASHER,#10

- flat, No. 10, plated

4шт.

27

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1-2шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

29

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1-2шт.
