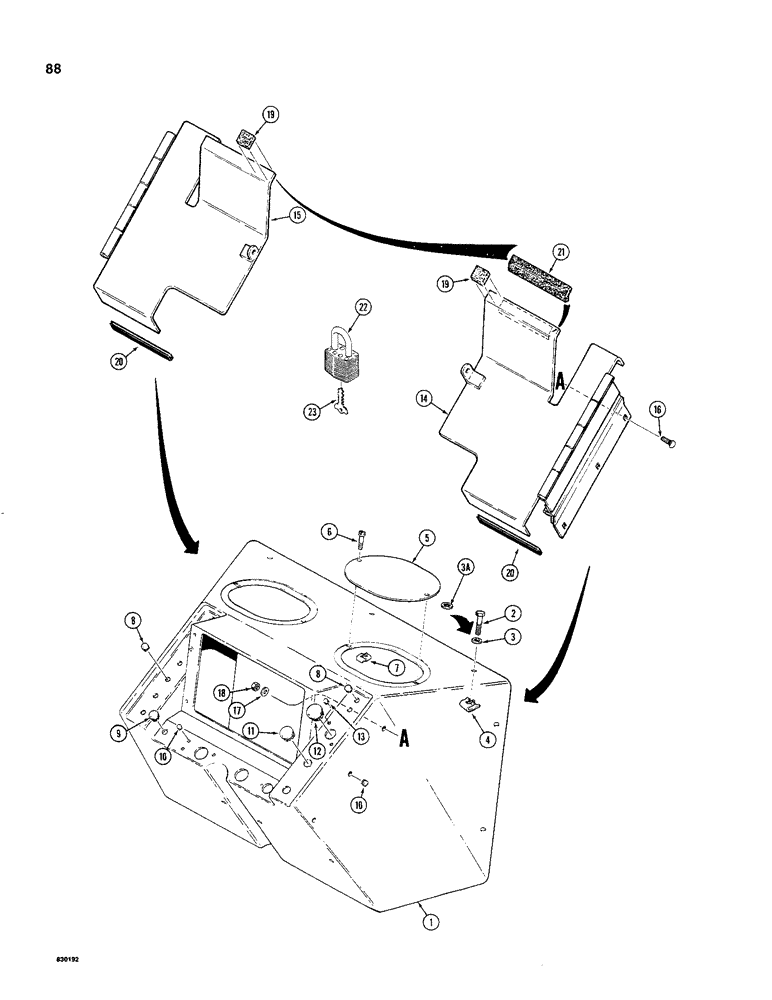

Запчасти Case 480C (088) - INSTRUMENT PANEL AND COVERS, TRACTOR SERIAL NUMBER 8967053 AND AFTER (55) - ELECTRICAL SYSTEMS

1

D81004

PANEL

INSTRUMENT PANEL - dash board

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

7шт.

3

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

7шт.

3a

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Used with defroster fan Int Tooth, 5/16"

1шт.

4

131-637

SPRING NUT,Ret, J, 5/16"-18

- J-type, 5/16" - 18 NC, if used

7шт.

4

131-641

NUT

- U-type, 5/16" - 18 NC, if used

7шт.

5

NSS

NOT SOLD SEPARAT

COVER - access hole, metal, if used, order D78247 cover

2шт.

5

D78247

COVER

- access hole, plastic, if used

2шт.

6

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, slotted, No. 10 - 24 NC x 1/2", plated

4шт.

7

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

- J-type, No. 10 - 24 NC

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

5-6шт.

9

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

10

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16"

9шт.

11

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16"

1шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

353-421

PLUG,Dome, .187" hole, Nylon

2шт.

14

D80782

COVER

- lockup, right-hand, if used

1шт.

15

D80781

COVER

- lockup, left-hand, if used

1шт.

16

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

- 1/4" - 20 NC x 3/4", plated

6шт.

17

195-102

WASHER,1/4"

- flat, , plated 1/4"

6шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

19

D83236

PAD

- cushion

2шт.

20

REF

INSTRUCTION

TRIM edge, cover, 4-5/16", 109 mm, long, cut from D95462 trim, see below

2шт.

Part of P/N D95462 Trim

1шт.

21

D66072

SEALING STRIP

- insulation

2шт.

22

D93753

PADLOCK

- includes keys, Includes: Ref. 23

1шт.

23

R29555

KEY

- for Master padlock only

2шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

D95462

MOLDING

TRIM edge, 9", 229 mm, long, bulk, used for Ref. 20

1шт.
