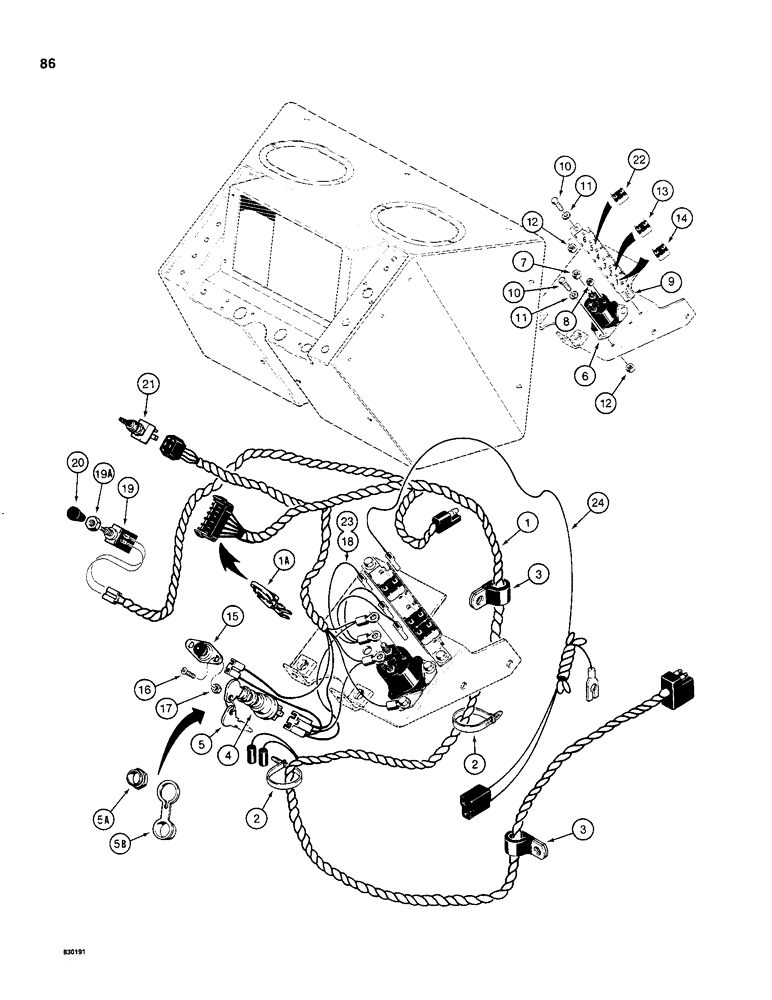

Запчасти Case 480C (086) - ELECTRICAL CIRCUIT, MAIN HARNESS AND CONNECTIONS, TRACTOR SERIAL NUMBER 8967053 AND AFTER (55) - ELECTRICAL SYSTEMS

1

D88562

HARNESS

- main, interchangeable with D75027 harness, Includes: Ref. 1A

1шт.

1a

H339523

TERMINAL CONNECTOR

CLIP - wires at plug

18шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

3

49838

CLAMP

- wire harness

2шт.

4

D85872

SWITCH

- key, with protective cover, replaces switches without protective cover, Includes: Ref. 5, 5A and 5B

1шт.

5

R30074

SET

KEY - switch, set of two keys

2шт.

5a

N7842

NUT

- key switch, correct size for D85872 switch with protective cover only

1шт.

5b

N6401

PROTECTIVE COVER

COVER - dirt and moisture protection

1шт.

6

A77311

SWITCH

SOLENOID - electrical

1шт.

7

193-1009

NUT,Keps, w/LW, 5/16"-18

- hex, special lock, 5/16" - 18 NC, plated

2шт.

8

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

1шт.

9

D75355

BRACKET

- circuit breaker

1шт.

10

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

11

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

12

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, special lock, 1/4" - 20 NC, plated

4шт.

13

D78001

CIRCUIT-BREAKER

CIRCUIT BREAKER - 10 amperes

1шт.

14

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

15

D67872

SWITCH

- push botton starter

1шт.

16

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, No. 10 - 32 NF x 1/2"

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

2шт.

18

D75225

ELECTRICAL WIRE

WIRE ASSEMBLY - solenoid to circuit breakers

1шт.

19

D74330

SWITCH

- lamp, Includes: Ref. 19A

1шт.

19a

N7557

NUT

- special, 3/8" - 24 NF, switch retaining

1шт.

20

D95781

BUTTON

KNOB - lamp switch

1шт.

21

D75360

SWITCH

- test, air cleaner and hydraulic filter

1шт.

22

D78002

CIRCUIT-BREAKER

CIRCUIT BREAKER - 15 amperes, used w/ cab only

1шт.

23

D75225

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker, used w/ cab only

1шт.

24

D75955

ELECTRICAL WIRE

WIRE - to cab harness, wiper and beacon, if used, used w/ only

1шт.
