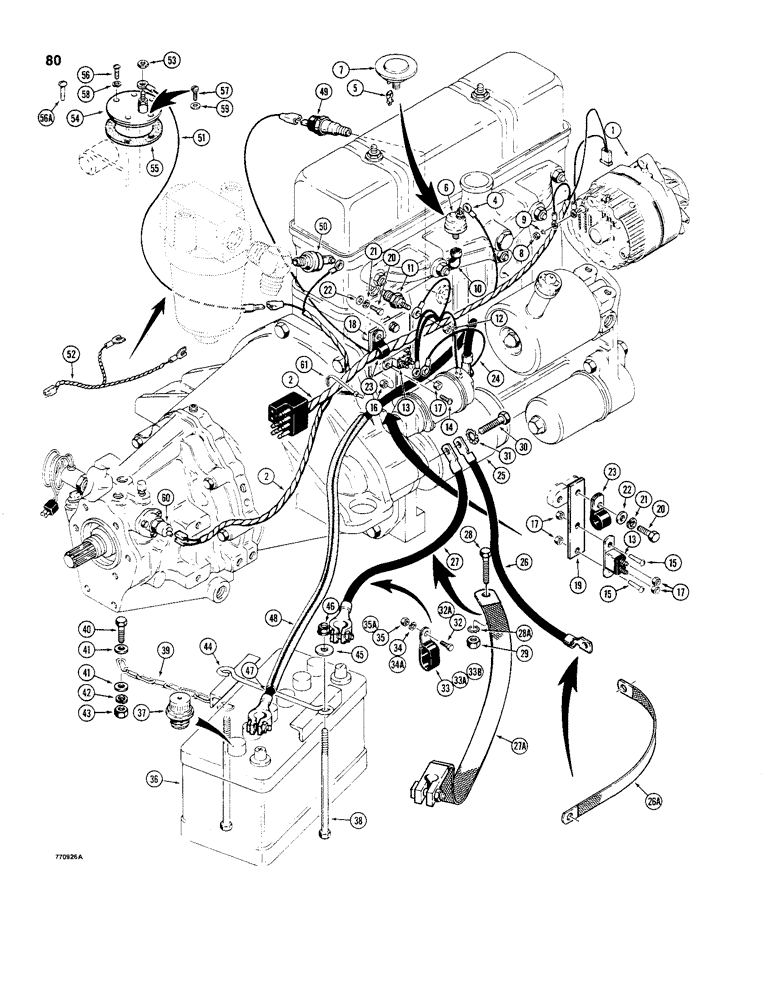

Запчасти Case 480C (080) - ELECTRICAL CIRCUIT, FRONT HARNESS, ALTERNATOR, STARTER AND BATTERY (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR - electrical, see Figures 68-72

1шт.

2

D73456

HARNESS

- front, includes 223-59 eyelet terminal, if used, Includes: Ref. 4 and 5, Serial Range: -8967053

1шт.

3

D88442

HARNESS

- front, includes 223-94 blade terminal, if used, Includes: Ref. 4 and 5, Start Serial: 8967053

1шт.

4

223-59

TERMINAL CONNECTOR

TERMINAL - eyelet, if used

1шт.

5

223-94

TERMINAL CONNECTOR,Female, 14 - 16

TERMINAL - connects to blade terminal, if used

1шт.

6

NSS

NOT SOLD SEPARAT

SENDER - air filter restriction, requiring eyelet terminal, no longer available, order A154782 sender and 223-94 blade connector terminal

1шт.

7

A154782

SWITCH

SENDER - air filter restriction, if wiring harnes has eyelet terminal, also order Ref. 5

1шт.

8

129-18

NUT,#12-24

- hex, No. 12 - 24 NC, plated, if used

1шт.

8

825-1106

NUT,Hex, M6, Cl 8

- hex, 6 mm, plated, if used

1шт.

9

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

10

221-1374

ELBOW,90 Degree, 1/8" NPT

- 90 degree, plated

1шт.

11

D65446

SENDER UNIT

SENDER - enginge water temperature

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

1шт.

13

A22877

BREAKER,40A

CIRCUIT BREAKER - 40 amperes

1шт.

14

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- pan head, slotted, No. 8 - 32 NC x 1/2", plated, if used

2шт.

15

182-145

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- pan head, slotted, No. 10-32 NF x 1/2", if used

2шт.

16

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock, No. 8-32 NC, plated, if used

2шт.

17

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10-32 NF, plated, if used

4шт.

18

NSS

NOT SOLD SEPARAT

PLATE - breaker mounting, if used, order Ref. 19

1шт.

19

D74343

PLATE

STRAP - breaker mounting, if used

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1-2шт.

21

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1-2шт.

22

195-102

WASHER,1/4"

- flat, , plated 1/4"

1-2шт.

23

NLS

NO LONGER SERVICED

- harness mounting

1шт.

24

D67876

ELECTRICAL WIRE

WIRE - jumper

1шт.

25

REF

INSTRUCTION

STARTER - engine, parts list Figure 74

1шт.

26

F10142

CABLE

- ground, round, if used

1шт.

26a

D73383

STRAP

CABLE - ground, flat, uses existing power steering pump tube clamp hardware, if used

1шт.

27

D67874

CABLE

- battery, negative terminal, round, if used

1шт.

27a

D73427

STRAP

CABLE - battery, negative terminal, flat, if used

1шт.

28

113-684

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

Used with flat battery cable Hex, 5/8"-11 x 2 1/2", G8

1шт.

28a

193-85

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8', used with D73427 cable

1шт.

29

425-1410

JAM NUT,Jam, 5/8"-11, G5

JAM NUT - hex, 5/8" - 11 NC, plated, used with D73427 cable

1шт.

30

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

31

193-72

LOCK WASHER

- external-internal tooth, 3/8", plated

1шт.

32

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

32a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

D34980

CLAMP

- battery cable, double round cables, if used

2шт.

33a

49836

CLAMP

- battery cable, single round cables, if used

2шт.

33b

R21385

CLAMP

- battery cable, single round cable wrapped in hose (Ref. 48), if used

2шт.

34

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

34a

92-6

LOCK WASHER,3/8"

if used 3/8"

2шт.

35

129-105

NUT,Hex, 1/2" - 13, Gr 5

If used 1/2"-13, G5

2шт.

35a

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

2шт.

36

A38411

DRY BATTERY

- 12 volt, service replacement, must be used with A60553 nonspill caps

1шт.

When replacing battery, use the 6, nonspill caps from old battery or order 6, A60553 nonspill caps.

1шт.

37

A60553

CAP

- battery, nonspill

6шт.

38

115-215

BOLT,Hex, 3/8" - 16 x 9-3/4", Gr 2

- hex head, 3/8" - 16 NC x 9-3/4"

2шт.

39

D75052

CHAIN (AG)

CHAIN - door stop

1шт.

40

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Chain attaching, drawbar models Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

41

195-2034

WASHER,7/16" x 1 1/4" x .134"

- flat, 3/8", if used

2шт.

42

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

43

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , If used 3/8"-16, G5

1шт.

44

D55559

HOOK

RETAINER - battery

1шт.

45

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

46

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, special, 3/8" - 16 NC, plated

2шт.

47

D80892

CABLE

- battery, positive

1шт.

48

D75043

HOSE

- cable insulating, if used

1шт.

49

A162297

SWITCH

SENDER - oil pressure

1шт.

50

D65458

SWITCH

SENDER - oil filter restriction, stamped M4004-40, used with D73910 filter only, see Figure 338

1шт.

50

D87439

SWITCH

SENDER - oil filter restriction, stamped M4004-60, used with D784789 filter only, see Figure 338

1шт.

51

D67875

ELECTRICAL WIRE

WIRE - fuel sender, used before tractor SN 8967053

1шт.

52

D88557

ELECTRICAL WIRE

HARNESS - fuel and filter restriction senders, used on tractor SN8967053 and after

1шт.

53

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10-32 NF, plated

1шт.

54

D63293

SENDER UNIT

SENDER - fuel level

1шт.

55

A11822

GASKET

- fuel sender

1шт.

56

182-143

SCREW,Cross Pan Hd, #10 - 32 x 3/8"

- pan head slotted, No. 10 - 32 NF x 3/8", use D75465 sealing screw

5шт.

56a

D75465

SCREW,#10 - 32 x 5/8"

- special sealing

4-5шт.

57

182-553

SCREW,Cross Pan Hd, #10-32 x 5/8"

- pan head, No. 10 - 32 NF x 9/16", ground, if used

1шт.

58

92-3

LOCK WASHER,#10

WASHER, LOCK, , Used with 182-143 screw only #10

4-5шт.

59

D83885

WASHER

- copper, used with 182-553 ground screw, if used

1шт.

60

S113435

SWITCH

- neutral start, power shuttle

1шт.

60

A139078

SWITCH

- neutral start, mechanical shuttle, not shown

1шт.

61

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
