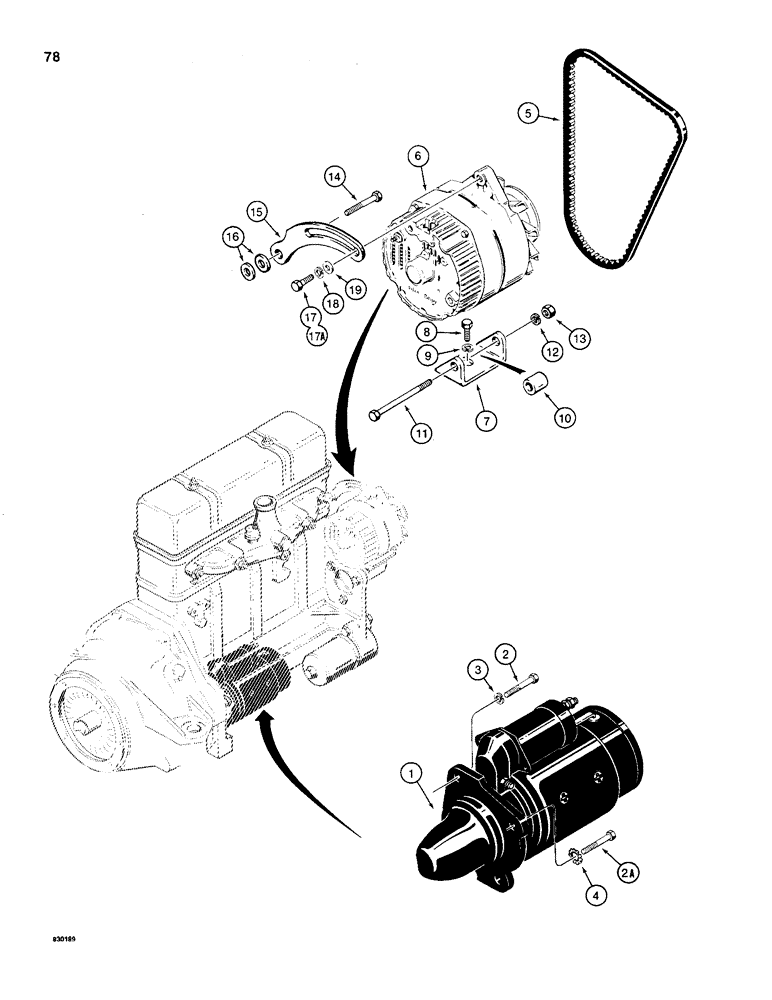

Запчасти Case 480C (078) - STARTER AND ALTERNATOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

STARTER - engine, see Figure 74

1шт.

2

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

2a

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

193-72

LOCK WASHER

- external-internal tooth lock, 3/8"

1шт.

5

D73446

V-BELT,0.50" W x 51.50" L

Engine 0.50" W x 51.50" L

1шт.

6

REF

INSTRUCTION

ALTERNATOR - electrical, see Figures 68-72

1шт.

7

A138246

BRACKET

- alternator mounting

1шт.

8

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A138247

SPACER

- alternator

1шт.

11

113-267

BOLT,Hex, 3/8" - 16 x 4", Gr 5

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

14

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

15

A139258

STRAP

- alternator adjusting

1шт.

16

195-104

WASHER,3/8"

- alternator strap, flat, , plated 3/8"

2шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, If used

1шт.

17a

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 25 mm (8.8), plated, if used

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

19

195-103

WASHER,5/16"

- flat, , plated 5/16"

1шт.
