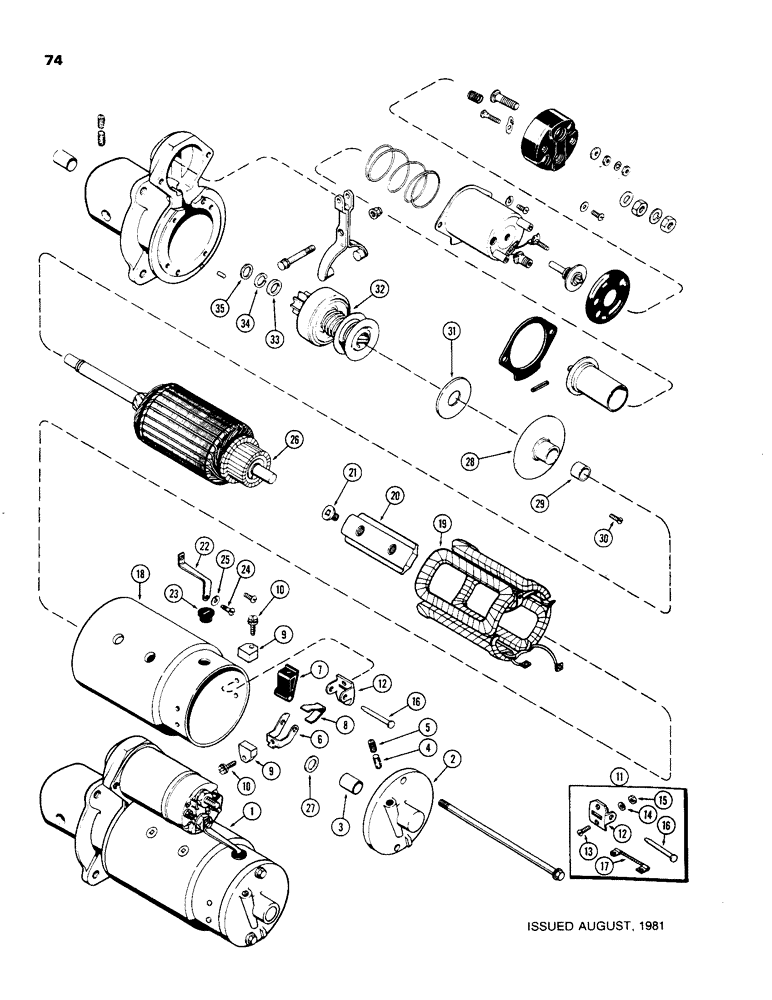

Запчасти Case 480C (074) - R29870 STARTER, DELCO-REMY, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A47494

STARTING MOTOR

Starter Assembly - remanufactured, Includes: Ref. 2 - 35

1шт.

1

A47495

CORE-STARTER

Return Part Number - use this part number to return starter core for credit, Includes: Ref. 2 - 35

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces.

1шт.

1

104202A2R

REMAN-STARTER

Starter Assembly - (Delco-Remy #1109149)

1шт.

1

104202A1C

CORE-STARTER

Return Part Number

1шт.

1

87297364

REMAN-STARTER

Starter

1шт.

1

87297365

CORE-STARTER

Return Part Number

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

1

104223A1R

REMAN-STARTER

Remanufactured Starter 12 volt, Presto intertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, Starter 12 volt, Presto inertia

1шт.

1

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

1

104451A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104451A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5 KW

1шт.

2

A25304

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A45152

BUSHING

BUSHING - 9/16 x 11/16 x 3/4" (14.29 x 17.46 x 19.05 mm)

1шт.

4

A41979

WICK

WICK - oiler

1шт.

5

221-1041

PLUG

PLUG - oil wick hole, 1/8" PT, slotted head

1шт.

6

A40217

HOLDER

HOLDER - brush (grounded)

2шт.

7

R15027

HOLDER

HOLDER - brush (insulated)

2шт.

8

A25359

SPRING

SPRING - brush pressure

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush, #8-32 x 13/16" slotted head

4шт.

11

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 12 - 17

2шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - support to frame, #10-24 x 1/2" round head

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

129-217

NUT - #10-24 hex

2шт.

16

R15035

PIN

PIN - brush holder

1шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

18

NSS

NOT SOLD SEPARAT

FRAME - starter body

1шт.

19

A25548

COIL

COIL ASSEMBLY - field

1шт.

20

A25391

SHOE

SHOE - pole

4шт.

21

74-612

SCREW,3/8" - 24 x 3/4"

SCREW - pole shoes, 3/8 x 5/8" NF flat head

8шт.

22

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: field-solenoid

1шт.

23

A41980

GROMMET

GROMMET - connector insulating (in frame)

1шт.

24

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector to coil, #10-32 x 7/16" round head

1шт.

25

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

26

A25547

ARMATURE

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - thrust (at commutator end)

1шт.

28

A40215

PLATE ASSY.

PLATE ASSEMBLY - center bearing, Includes: Ref. 29

1шт.

29

R15038

BUSHING

BUSHING - center bearing, 3/4 x 13/16 x 3/4" (19.05 x 20.64 x 19.05 mm)

1шт.

30

A41959

SCREW,#10 - 32 x 3/8"

SCREW - center bearing to drive housing

4шт.

31

R15043

WASHER

WASHER - thrust, center bearing

1шт.

32

A45565

DRIVE

DRIVE ASSEMBLY

1шт.

32

87421540

REMAN-STARTER DRIVE

480C CASE CONSTRUCTION KING LOADER BACKHOE, DRIVE ASSEMBLY, Reman for New PN A45565

1шт.

32

87421541

CORE-STARTER DRIVE

Return Part Number

1шт.

33

R15049

COLLAR

COLLAR - drive stop

1шт.

34

R15048

RING

RING - snap, stop collar retaining

1шт.

35

A25385

WASHER

WASHER - thrust (drive end)

1шт.

35

104202A2R

REMAN-STARTER

Starter Assembly, Includes: Ref. 36 - 62

1шт.

35

104202A1C

CORE-STARTER

Return Part Number

1шт.

This starter changed from a 10 tooth gear to a 9 tooth gear for faster cranking speed. This changed the nose piece in the area of the offset. Megavolt gets more cores in on the 10 tooth gear and the offset is only .050 diff. between the two gears. at times the nose pieces get mixed up and the result is the starter gear won't mesh with the ring gear unless the starter mounting bolts are loose. On 2/26/96 (MEGA-VOLT) is in process of designing a fixture to readily identify the different nose pieces.

1шт.

36

A44495

LUG

HOUSING ASSEMBLY - drive end, Includes: Ref. 37 - 39

1шт.

37

A25387

BEARING

BUSHING - drive housing, 1/2 x 5/8 x 13/16" (12.7 x 15.88 x 20.64 mm)

1шт.

38

R15023

WICK

WICK - oiler

1шт.

39

221-1041

PLUG

PLUG - oil wick hole (1/8" PT, slotted head)

1шт.

40

R15041

SPARE PART PIN - locating, drive housing (3/16 x 5/16")

1шт.

41

A40220

LEVER

LEVER - drive shift

1шт.

42

A40520

BOLT

PIVOT - shift lever

1шт.

43

131-4

LOCK NUT,5/16"-18, GB

NUT - pivot (5/16" NC hex)

1шт.

44

A25552

BOLT

BOLT - thru

2шт.

45

A40218

PLUNGER

PLUNGER - solenoid

1шт.

46

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, 3/16" x 13/16", Slotted

1шт.

47

A40222

BOOT

BOOT - plunger protection

1шт.

49

A47539

SOLENOID SWITCH

SOLENOID ASSEMBLY, Includes: Ref. 50 - 60

1шт.

SEE DELCO-REMY DEALER FOR PARTS ILLUSTRATED BUT NOT LISTED.

1шт.

50

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY

1шт.

51

A40221

SPRING

SPRING - plunger return

1шт.

52

A42061

SWITCH

CONTACT ASSEMBLY

1шт.

53

A42059

SPRING

SPRING - contact return

1шт.

54

A42060

HALF BLADE

BLADE - contact

1шт.

55

NSS

NOT SOLD SEPARAT

COVER - solenoid contact and terminals

1шт.

56

NSS

NOT SOLD SEPARAT

GASKET -, Serial Range: cover-solenoid

1шт.

57

129-16

NUT,#8-32

NUT, #8-32

2шт.

58

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

59

87016560

JAM NUT,Jam, 3/8"-16, G5

NUT, Jam, 3/8"-16, G5

2шт.

60

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

61

A42023

SCREW,#10 - 32 x 1/2"

SCREW - solenoid and connector (1/4 x 1/2' NC, round head)

3шт.

62

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.
