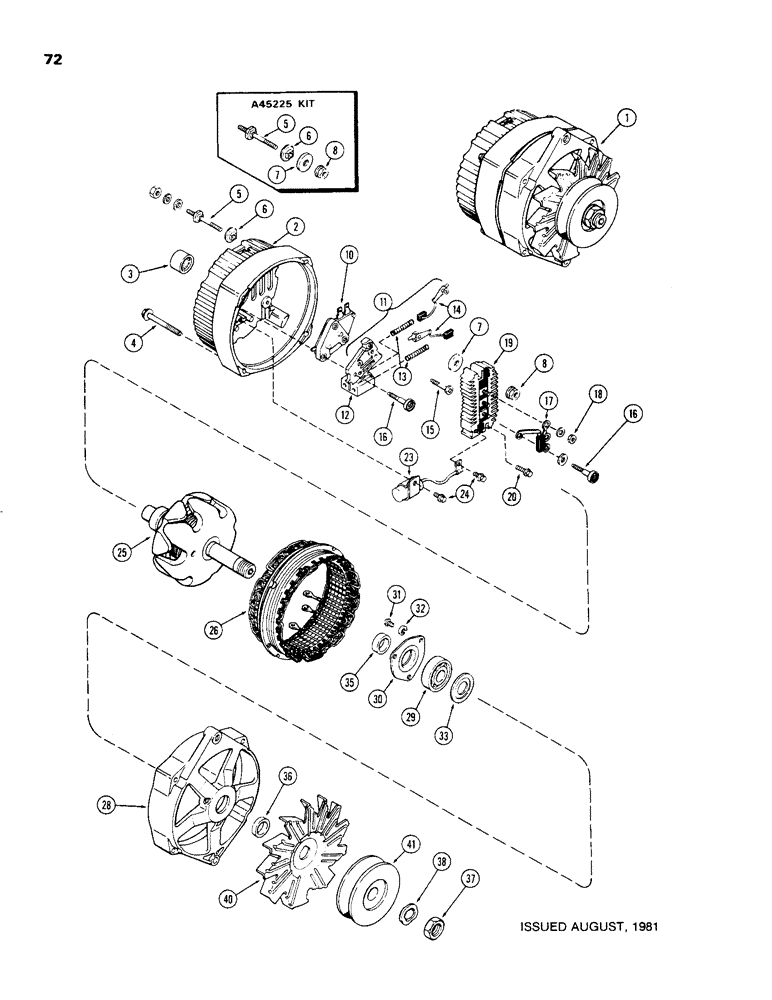

Запчасти Case 480C (072) - A135714 ALTERNATOR, DELCO-REMY NUMBER 1102886, 188 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

A135714

ALTERNATOR

ALTERNATOR ASSEMBLY - (Delco-Remy #1102886) (37 AMP) (Used for production only) (Order 1-A45201) alternator, 1-A43384 fan and 1-A51561 pulley), Includes: Ref. 2 - 38

1шт.

A47436

ALTERNATOR

ALTERNATOR ASSEMBLY - remanufactured, Includes: Ref. 2 - 38

1шт.

A47444

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

A47437

CORE-ALTERNATOR

Return Number - use this part number to return alternator cor for credit, Includes: Ref. 2 - 38

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 63 ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 63 AMP Alternator

1шт.

103799A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 63 AMP Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Reman For New P/N A47436

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

A45201

ALTERNATOR

ALTERNATOR ASSEMBLY - (Delco-Remy #1100583) (42 AMP) (Repairs only) (Less pulley and fan) (Order 1-A47623, 1-814-8025, 1-825-1106, 1-892-1106 and 1-892-1108), Includes: Ref. 2 - 38

1шт.

2

A47988

FUNNEL

FRAME FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A45218

BEARING ASSY

BEARING - roller

1шт.

4

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex washer head

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes: Ref. 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

8

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A45222

BRUSH, COMMUTATOR

BRUSH BRUSH HOLDER ASSEMBLY - (Includes brushes), Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A47989

SPRING

SPRING - brush

2шт.

14

NSS

NOT SOLD SEPARAT

BRUSH

2шт.

15

A45224

SCREW,0.164" - 32 x 1 7/64"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge, #8-32 x 1"

1шт.

23

A45017

CAPACITOR

CAPACITOR ASSEMBLY - (Includes bracket) (Order A47734)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor, #8-32 x 3/8"

2шт.

25

A45391

ROTOR

ROTOR ASSEMBLY - (Includes slip rings)

1шт.

26

A45233

STATOR

STATOR ASSEMBLY

1шт.

28

A45229

FRAME

FRAME - drive end (Order A47577)

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE ASSEMBLY - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate, #10-24 x 3/8" round head

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16" (5.55 x 11.11 x 1.58 mm)

4шт.

33

A45232

WASHER

WASHER - grease slinger, bearing

1шт.

35

A44522

COLLAR

COLLAR - inside, rotor shaft, 11/16 x 7/8 x 3/8" (17.46 x 22.22 x 9.53 mm)

1шт.

36

A72047

COLLAR

COLLAR - outer, rotor shaft, 11/16 x 7/8 x 13/16" (17.46 x 22.22 x 20.64 mm)

1шт.

37

A25546

NUT

NUT - pulley and fan retaining

1шт.

38

R16171

SPRING WASHER

WASHER - lock, pulley nut

1шт.

40

A43384

FAN

FAN - alternator

1шт.

41

A51561

PULLEY

PULLEY - drive

1шт.
