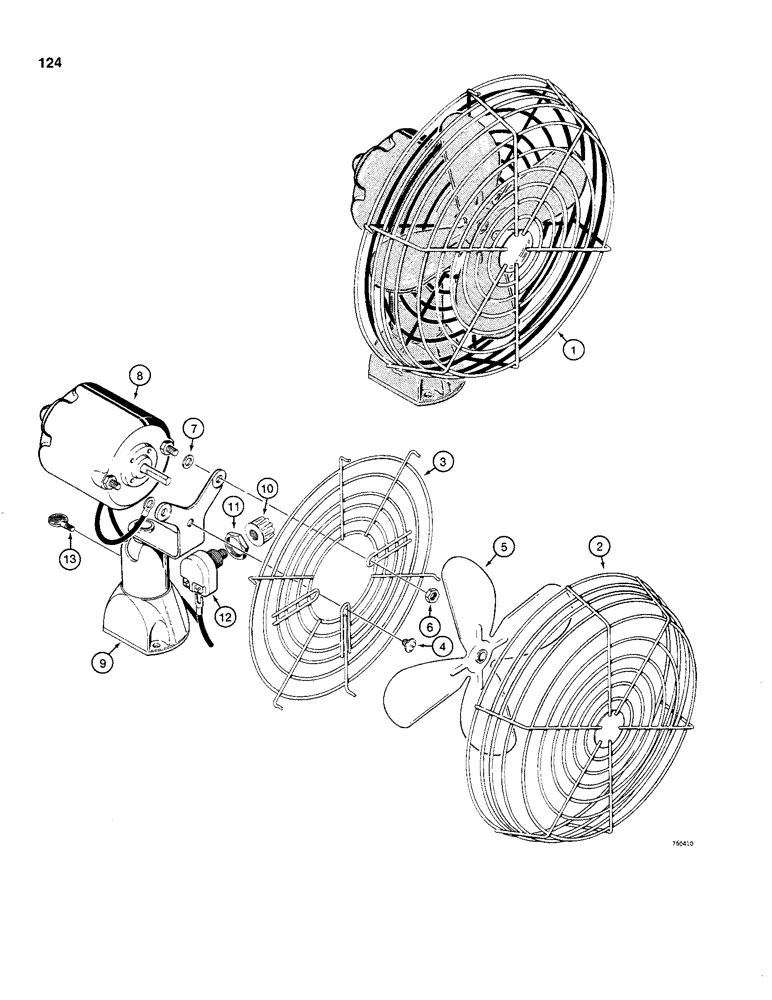

Запчасти Case 480C (124) - WINDOW DEFROSTER FAN, WITH FOUR BOLT BASE (50) - CAB CLIMATE CONTROL

1

L13468

FAN

- defroster, four-bolt base, Includes: Ref. 2 - 13

1шт.

2

L30907

GUARD

GRILLE - fan, front guard

1шт.

3

L30904

GRILLE

- fan, back guard

1шт.

4

L30906

BOLT

- fan grille stabilizer, special

1шт.

5

L30902

FAN

BLADE - fan

1шт.

6

129-36

NUT,#8-36

- hex, No. 8 - 36 NF, plated

2шт.

7

L35760

WASHER

- fan grille balancing, special

1шт.

8

A44571

MOTOR, ELECTRIC

MOTOR - fan

1шт.

9

L30900

BASE

- fan

1шт.

10

L30909

KNOB

- control

1шт.

11

L30908

NUT

- hex, special

1шт.

12

L30903

SWITCH

- control

1шт.

13

L30910

SCREW

- thumb, swivel joint

1шт.
