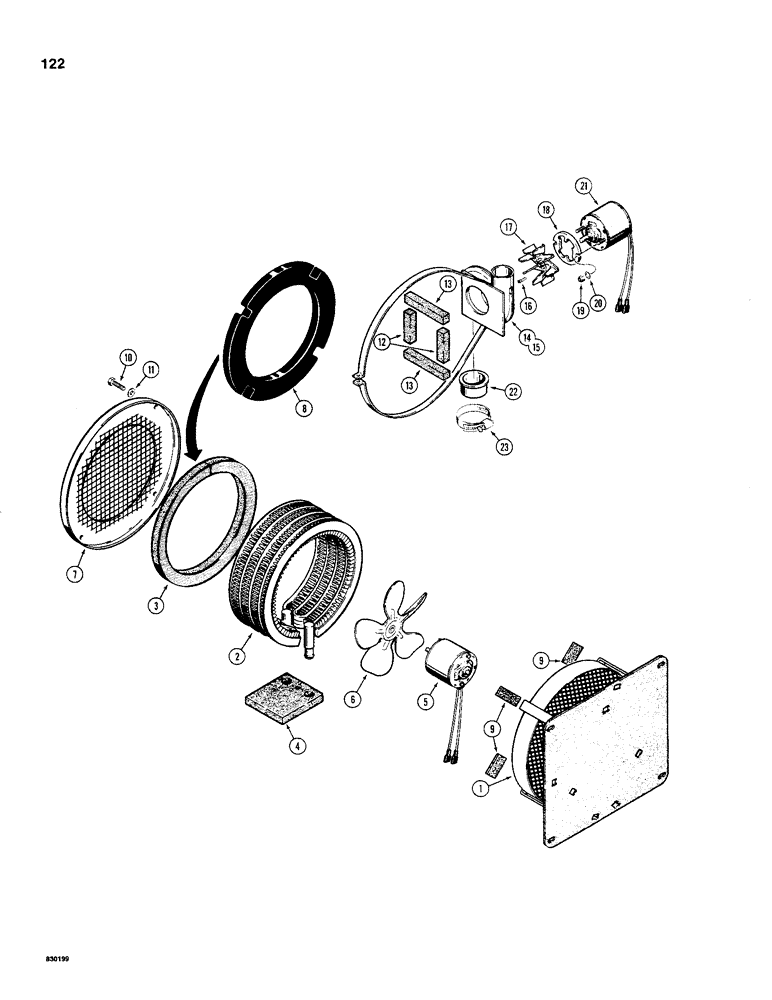

Запчасти Case 480C (122) - CAB HEATER AND DEFROSTER (50) - CAB CLIMATE CONTROL

F93834

HEATER

ASSEMBLY - cab, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

N6518

HEATER ASSY.

CORE - heater

1шт.

3

D83118

ISOLATOR

INSULATOR - heater

1шт.

4

N6519

SEAL

GASKET - heater core, replaces two small rings on some heaters

1шт.

5

F43811

MOTOR

- heater

1шт.

6

F43812

FAN

- heater, 8" (203 mm) diameter

1шт.

7

F43813

GRILLE

COVER - heater

1шт.

8

D83121

GASKET

- cover

1шт.

9

D83120

FELT

SEAL - felt

3шт.

10

187-996

SELF-TAP SCREW,1/4" x 1"

SCREW - self-tapping, 1/4" - 20 NC x 1"

4шт.

11

195-102

WASHER,1/4"

- flat, , plated 1/4"

4шт.

D69710

DEFROSTER

- cab, Includes: Ref. 12 - 21

1шт.

12

REF

INSTRUCTION

STRIP - rubber, 2.5" (64 mm) long, cut from D71303, see below

2шт.

For four-bolt base window defroster fan see Figure 124 and for three-bolt base window defroster fan see Figure 126.

1шт.

13

REF

INSTRUCTION

STRIP - rubber, 4.4" (112 mm) long, cut from D71303, see below

2шт.

For four-bolt base window defroster fan see Figure 124 and for three-bolt base window defroster fan see Figure 126.

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - intake side

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - exhaust side

1шт.

16

187-1040

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/8"

SCREW - No. 6 - 32 NC x 3/8"

2шт.

17

D71305

FAN - defroster blower

1шт.

18

L32699

SHIM

- motor

1шт.

19

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF

2шт.

20

193-6

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

21

F43811

MOTOR

- defroster, 14 volt

1шт.

22

543-33

PLUG - defroster suction

1шт.

23

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

plug #24, 1.06/2.00 Type F Worm

1шт.

D71303

SEAL - rubber, bulk roll, not shown, 25 ft (7620 mm) long

1шт.

For four-bolt base window defroster fan see Figure 124 and for three-bolt base window defroster fan see Figure 126.

1шт.
