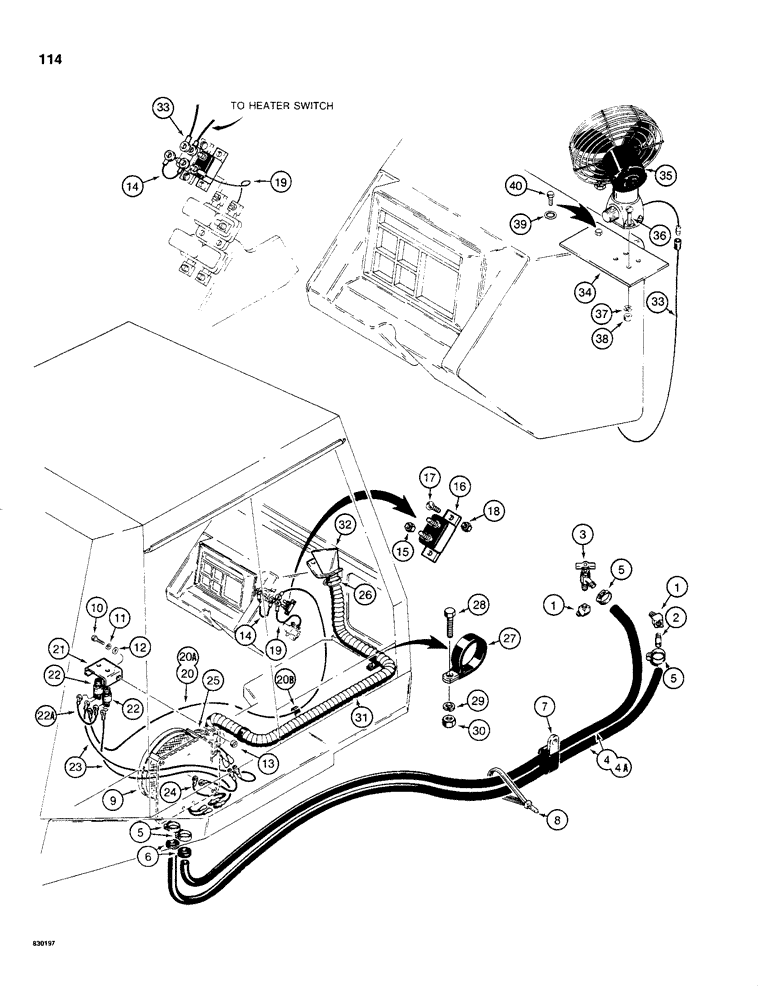

Запчасти Case 480C (114) - CAB HEATER LINES AND DEFROSTER, BEFORE TRACTOR SERIAL NUMBER 8967053 (50) - CAB CLIMATE CONTROL

1

D73369

FITTING

STREET ELBOW - 45 degree, 3/8" NPT

2шт.

2

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8" NPT

1шт.

3

A16764

VALVE

SHUTOFF VALVE - water

1шт.

4

D72024

HEATER HOSE

HOSE - heater, models with heater on right-hand side of cab, 102" (2591 mm) long

2шт.

4a

L52722

HOSE ASSY.

HOSE - heater, models with heater on left-hand side of cab, 151" (3835 mm) long

2шт.

5

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - heater hose

4шт.

6

D73137

GROMMET

- heater hose

2шт.

7

L50799

SHIN

CLAMP - heater hoses, uses existing tube clamp hardware on right-hand upright, if used

1шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

F93834

HEATER

- cab, parts list Figure 122

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3-4шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3-4шт.

12

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

3-4шт.

13

9635082

NUT,5/16" - 18, Gr 5

3-4шт.

14

D67962

WIRE - jumper, Serial Range: breaker-breaker

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- hex, special lock, No. 10 - 32 NF, plated

2шт.

16

L104329

BREAKER

CIRCUIT BREAKER - 15 amperes

1шт.

17

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- pan head, slotted, No. 8 - 32 NC x 1/2", plated

2шт.

18

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, special lock, No. 8 - 32 NC, plated

2шт.

19

D67961

WIRE - relay to circuit breaker

1шт.

20

A56103

WIRE - to heater switch, 80" (2032 mm) long, used on models without three-point hitch

1шт.

20a

D69903

WIRE - to heater switch, 95" (2413 mm) long, used on models with three-point hitch

1шт.

20b

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- wire, uses existing floor plate hardware, used on models without three-point hitch

3шт.

21

D69895

BRACKET

- heater and defroster switch mounting

1шт.

22

D75650

SWITCH

- heater and defroster, includes control knob and mounting hardware

1-2шт.

22a

D69950

WIRE - jumper, switch to switch, if used

1шт.

23

D69901

WIRE -, Serial Range: switch-heater

1-2шт.

24

D69902

ELECTRICAL WIRE

WIRE - heater ground

1шт.

25

REF

INSTRUCTION

DEFROSTER - parts list and related parts Figure 122, models w/ defroster blower & tube

1шт.

26

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

models w/ defroster blower & tube #24, 1.06/2.00 Type F Worm

2шт.

27

R14192

CLAMP,2", Insul, 3/8" Bolt

- P-type, models w/ defroster blower & tube

2шт.

28

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Models w/ defroster blower & tube Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

29

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Models w/ defroster blower & tube 3/8"

2шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Models w/ defroster blower & tube 3/8"-16, G5

2шт.

31

D69884

models w/ defroster blower & tube

1шт.

32

D70801

DEFLECTOR - tube outlet, models w/ defroster blower & tube

1шт.

33

D72991

WIRE - circuit breaker to defroster fan, window

1шт.

34

D74031

LARGE PLATE

PLATE - mounting, models w/ defroster window fan

1шт.

35

L13468

FAN

parts list Figure 124, models w/ defroster window fan

1шт.

36

169-137

MACHINE SCREW - Fillister head, slotted, No. 10 - 24 NC x 5/8", plated, models w/ defroster window fan

4шт.

37

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Models w/ defroster window fan #10

4шт.

38

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC, plated, models w/ defroster window fan

4шт.

39

193-82

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, , Replaces existing washer 195-521 when defroster fan is used, models w/ defroster window fan Int Tooth, 5/16"

1шт.

40

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd, Models w/ defroster window fan

1шт.
