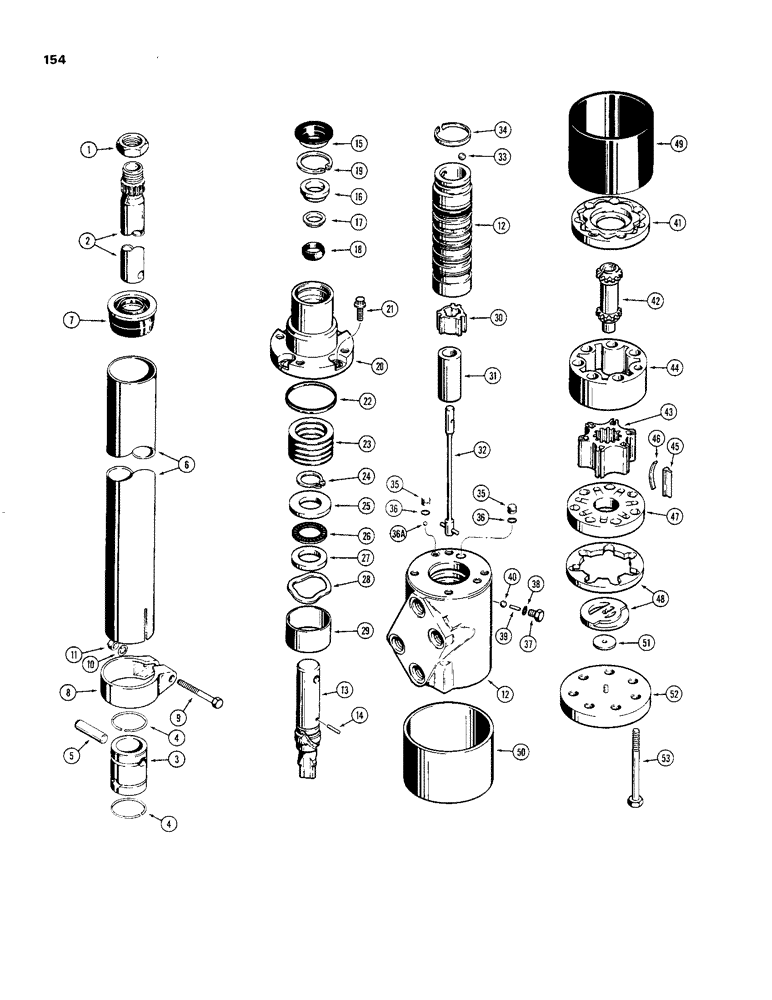

Запчасти Case 480C (154) - STEERING COLUMN AND CONTROL VALVE (41) - STEERING

D89898

PUMP

STEERING COLUMN AND CONTROL VALVE - interchangeable with D63250 steering column and control valve, Includes: Ref. 1 - 53

1шт.

D89898R

REMAN-STEERING VALVE

480C CASE CONSTRUCTION KING LOADER BACKHOE, STEERING COLUMN AND CONTROL VALVE

1шт.

D89898C

CORE-STEERING VALVE

Return Number

1шт.

1

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining

1шт.

2

D71310

SHAFT

- steering column

1шт.

D72851

KIT

- coupling, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

COUPLING - steering column to control valve

1шт.

4

A43560

SPRING

RING - coupling

2шт.

5

L35654

PIN

- coupling

2шт.

D71312

TUBE

JACKET ASSEMBLY - steering column, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

JACKET - steering column

1шт.

7

L35675

SEAL

- steering column

1шт.

L35657

CLAMP

ASSEMBLY - tube, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

CLAMP - tube

1шт.

9

114-122

BOLT,Hex, 5/16" - 24 x 2", Gr 5

1шт.

10

193-29

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

1шт.

11

129-122

NUT,5/16"-24, G5

1шт.

12

NSS

NOT SOLD SEPARAT

BODY AND SPOOL ASSEMBLY - includes two internal springs, rollers, and balls that are not serviced separately

1шт.

NSS body and spool assy - The internal springs and rollers referred to in description for this Ref. are A43548 spring and A43549 roller.

1шт.

13

A43551

SHAFT

INPUT SHAFT - steering control valve

1шт.

14

D53297

PIN

- torsion bar retaining

1шт.

A47038

SEAL KIT,Pump Shaft

SEAL KIT - shaft, Includes: Ref. 15 - 18

1шт.

15

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- dirt

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER - seal kit

1шт.

17

NSS

NOT SOLD SEPARAT

RING - seal, no longer used

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

19

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, brg

1шт.

20

D65139

COVER

- upper

1шт.

21

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16" - 18 NC x 3/4"

4шт.

22

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

- cover

1шт.

23

A44435

SHIM

KIT - cover

1шт.

24

A43720

RING

SNAP RING - shaft retaining

1шт.

25

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

THRUST WASHER - control valve

1шт.

26

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

THRUST BEARING - control valve

1шт.

27

F19634

BEARING WASHER

THRUST WASHER - control valve

1шт.

28

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - wave

1шт.

29

N6514

BUSHING

SPACER - bearing

1шт.

30

A43554

RING

- drive

1шт.

31

L36011

BUSHING

SPACER - drive link

1шт.

32

N6456

BAR

TORSION BAR - control valve

1шт.

33

211-9

BALL,5/16" Dia

- meter 5/16" Dia

1шт.

34

N6458

SPRING

- preload

1шт.

L36015

PLUG

ASSEMBLY - control valve, Includes: Ref. 35 and 36

1-2шт.

35

NSS

NOT SOLD SEPARAT

PLUG - control valve

1шт.

36

A43729

O-RING

- plug

1шт.

36a

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

F82943

VALVE

CHECK VALVE ASSEMBLY - ball type, if used, Includes: Ref. 37 - 40

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG - check valve

1шт.

38

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, plug

1шт.

39

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Check valve 1/8" x 15/16", Slotted

1шт.

40

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

41

A43569

BUSHING

SPACER - link

1шт.

42

A43568

LINK

- drive

1шт.

D78406

ROTOR

GEROTOR SET - control valve, Includes: Ref. 43 - 46

1шт.

43

NSS

NOT SOLD SEPARAT

ROTOR - gear, star

1шт.

44

NSS

NOT SOLD SEPARAT

STATOR - gear, ring

1шт.

45

A42778

LOCK VALVE

VANE - star, rotor

6шт.

46

A42219

SPRING

- vane

6шт.

47

A43573

MANIFOLD

- control valve

1шт.

48

A43574

COMMUTATOR

- control valve

1шт.

49

D74440

SEAL

- rotor

1шт.

50

D71315

RETAINER

- seal

1шт.

51

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER - wear, rotor

1шт.

52

A45182

COVER

- end

1шт.

53

D71316

BOLT

- hex head, 5/16" - 18 NC x 2-11/16", special

7шт.
