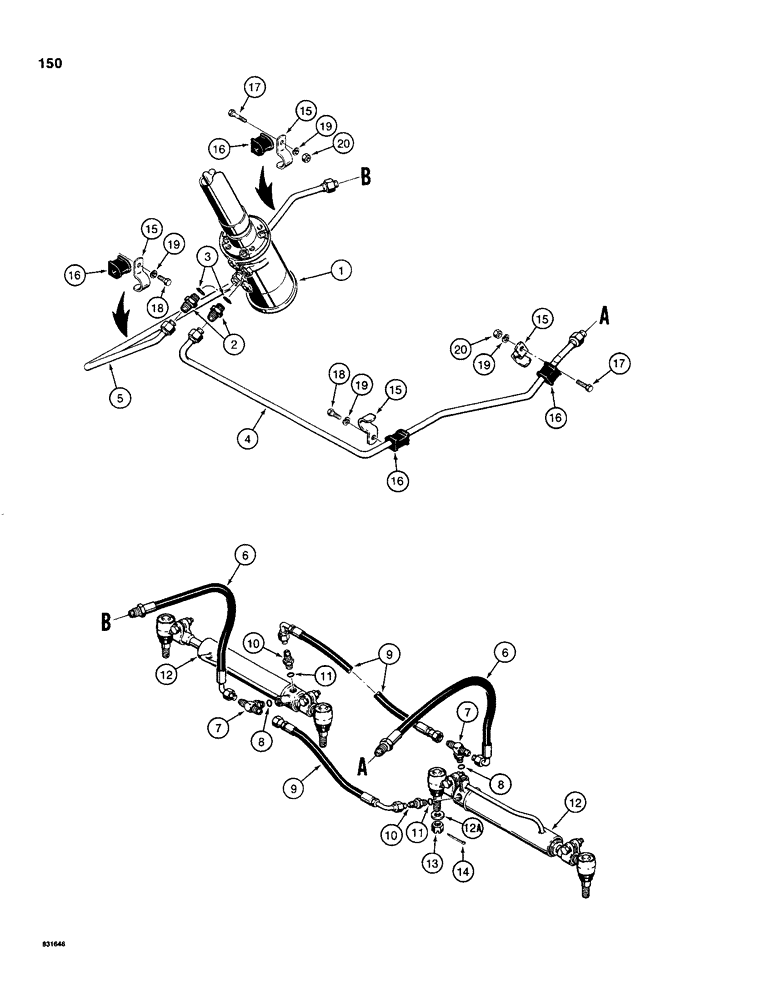

Запчасти Case 480C (150) - STEERING HYDRAULIC CIRCUIT, CONTROL VALVE TO CYLINDERS (41) - STEERING

1

D89898

PUMP

CONTROL VALVE - includes steering column, parts list Figure 154

1шт.

1

D89898R

REMAN-STEERING VALVE

480C CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE

1шт.

1

D89898C

CORE-STEERING VALVE

Return Number

1шт.

2

D76050

HARDWARE

ADAPTER - straight, male, restrictor type, Includes: Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

4

D70808

HYD TUBE,0.5" OD x 4.96, 28.48" L

TUBE - to right-hand steering cylinder

1шт.

5

D70806

HYD TUBE,0.5" OD x 5.72, 27.77" L

TUBE - to left-hand steering cylinder

1шт.

6

D62390

HOSE,9.53mm ID x 508mm L, SAE 100R1

- to steering cylinders, 20" (508 mm) long

2шт.

7

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, Includes: Ref. 8

2шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

9

D65620

HOSE

- between cylinders, 16" (406 mm) long

2шт.

10

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, male, Incl. Ref. 11

2шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

12

REF

INSTRUCTION

CYLINDER - steering, for correct assembly and components see Figures 158 and 160

2шт.

12a

95-10

WASHER,5/8"

- flat, , if used, used as a spacer 5/8"

1шт.

13

129-610

SLOTTED NUT,5/8"-18, G5

4шт.

14

132-335

COTTER PIN,1/8" x 1 1/4"

1/8" x 1-1/4"

4шт.

15

D68638

CLAMP

- tube, single

4шт.

16

D67296

GROMMET

INSULATOR - tube clamp

4шт.

17

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

113-204

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
