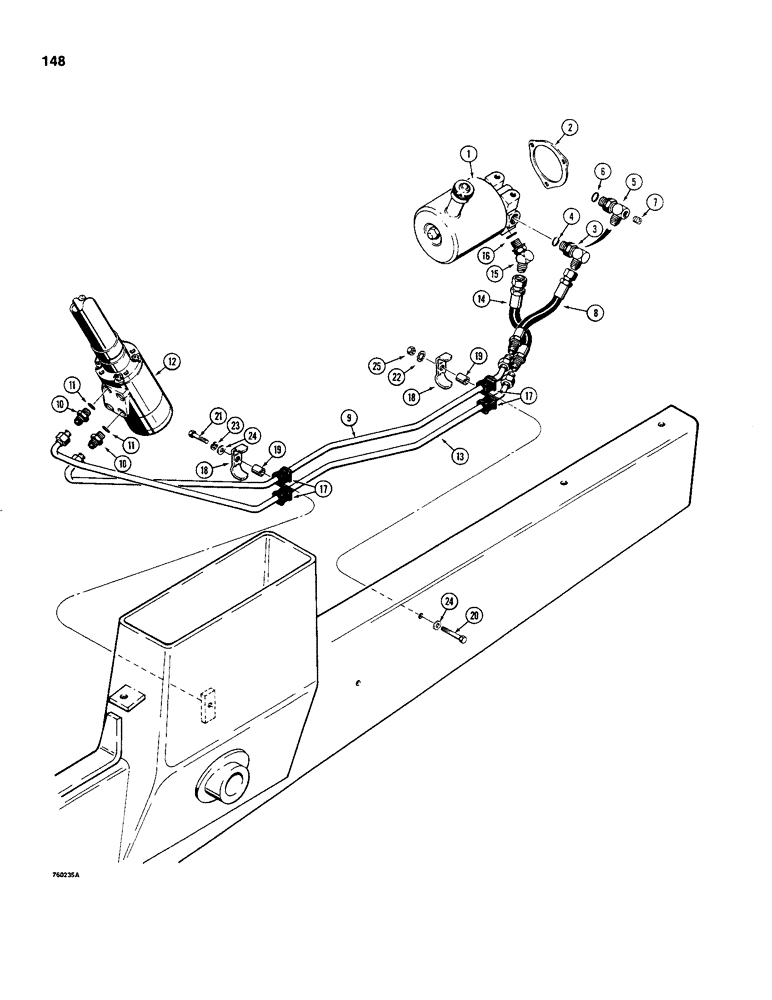

Запчасти Case 480C (148) - STEERING HYDRAULIC CIRCUIT, STEERING PUMP TO CONTROL VALVE (41) - STEERING

1

D84179

PUMP

STEERING PUMP - power, parts list Figure 152

1шт.

D84179R

REMAN-HYD PUMP

480C

1шт.

D84179C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

A30042

GASKET

- power steering pump

1шт.

3

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, if used, can be serviced with Refs. 5, 6, and 7, Includes: Ref. 4 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

5

R30587

ELBOW

- special, 90 degree, adjustable, if used, Includes: Ref. 6

1шт.

7

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT, if used, used with R30587 elbow (Ref. 5)

1шт.

8

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- from steering pump, 12" (305 mm) long

1шт.

9

D70810

HYD TUBE,0.5" OD x 24.98, 29.16" L

TUBE - to control valve, pressure

1шт.

10

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, male, Includes: Ref. 11

2шт.

11

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

12

D89898

PUMP

CONTROL VALVE - includes steering column, parts list Figure 154

1шт.

12

D89898R

REMAN-STEERING VALVE

480C CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE

1шт.

12

D89898C

CORE-STEERING VALVE

Return Number

1шт.

13

D70812

HYD TUBE,0.5" OD x 27.25, 30.13" L

TUBE - from control valve, return

1шт.

14

D63184

HOSE,9.53mm ID x 304.8mm L, SAE 100R2

- to steering pump, 12" (305 mm) long

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 45 degree, Incl. Ref 16

1шт.

17

D67296

GROMMET

INSULATOR - tube

4шт.

18

D68646

CLAMP

- tube, double

2шт.

19

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

2шт.

20

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

22

193-72

LOCK WASHER

- internal-external tooth lock, 3/8"

1шт.

23

92-6

LOCK WASHER,3/8"

1шт.

24

195-525

WASHER,3/8", SAE

- flat, 3/8", plated, if used

2шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.
