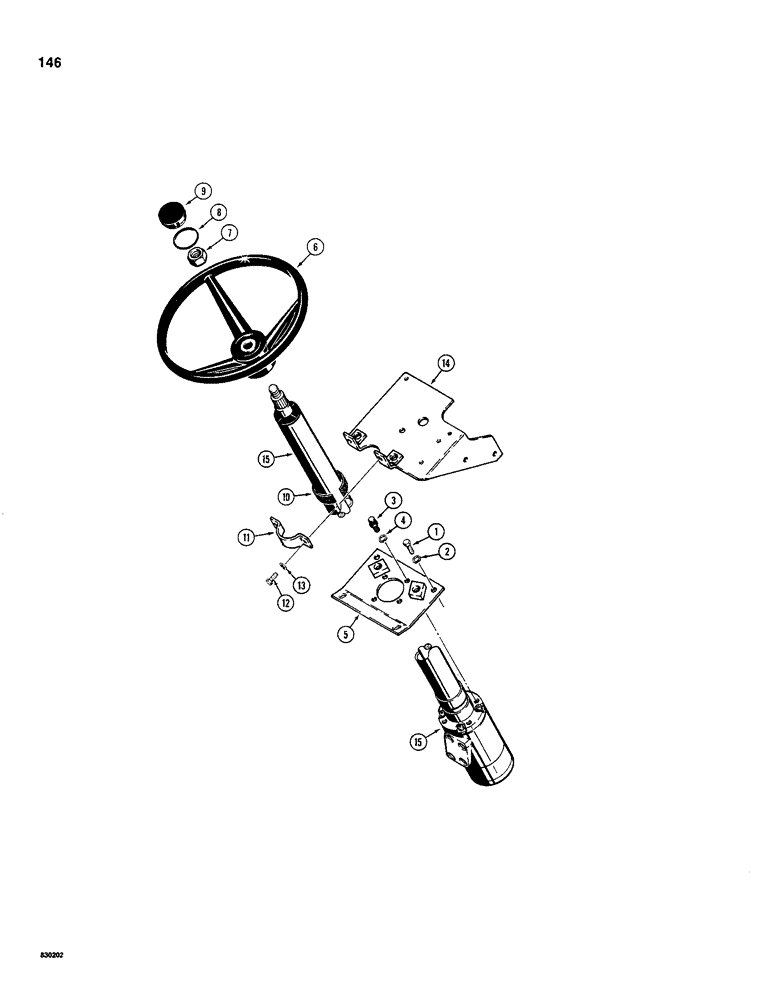

Запчасти Case 480C (146) - STEERING WHEEL AND STEERING COLUMN (41) - STEERING

Артикул

Название

Примечание

Количество

1

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

92-6

LOCK WASHER,3/8"

2шт.

3

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

SCREW - Ferry head, 5/16" - 18 NC x 5/8"

4шт.

4

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

5

D71584

PLATE

- control valve mounting

1шт.

6

A65544

STEERING WHEEL

- Tractor

1шт.

7

F19646

LOCK NUT,13/16"-20, Thin

NUT - steering wheel retaining, part of D89898 steering control valve

1шт.

8

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

- cap

1шт.

9

A62210

PLUG

CAP - steering wheel nut cover

1шт.

10

D66844

PADDING

COLLAR - steering column

1шт.

11

D66049

CLAMP

- half, steering column

1шт.

12

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

14

D66041

BRACKET - steering column, mechanical shuttle models only, before tractor SN 8967053

1шт.

14

D76066

BRACKET - steeting column, mechanical shuttle models only, before tractor SN 8967053

1шт.

14

D75238

BRACKET - steering column, power shuttler models only

1шт.

15

D89898

PUMP

CONTROL VALVE - includes steering column, parts list Figure 154

1шт.

15

D89898R

REMAN-STEERING VALVE

480C CASE CONSTRUCTION KING LOADER BACKHOE, CONTROL VALVE

1шт.

15

D89898C

CORE-STEERING VALVE

Return Number

1шт.

Выбрано товаров: 19
