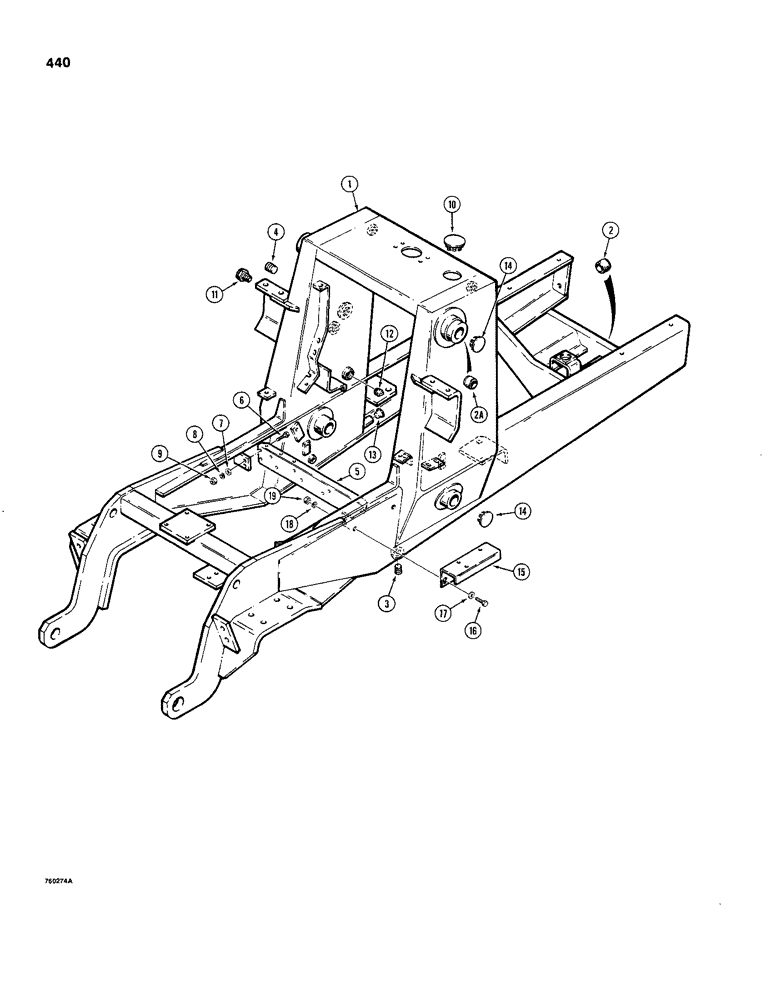

Запчасти Case 480C (440) - CHASSIS (39) - FRAMES AND BALLASTING

1

D76411

FRAME

CHASSIS - tractor, Includes: Ref. 2 - 3

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- front axle mounting

2шт.

2a

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- loader frame pivot

2шт.

3

D123893

PLUG

DRAIN PLUG - hex head, 3/4" NPT

2шт.

4

221-27

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG - hex, socket, 1-1/4" NPT, do not use plated plug this location

1шт.

5

D66068

BRACKET

- crossmember

1шт.

6

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

4шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

10

D63875

PLUG

- button, 3" diameter

1шт.

11

D63875

PLUG

- indicator, oil level, sight gauge

1шт.

12

221-15

PLUG,Sq Hd, 3/4"-14

- square head, 3/4" NPT, reservoir return ports, used only on drawbar tractors without equipment hydraulics, do not use plated plug this location

2шт.

13

353-23

CAP,Cap, 1.355" OD

PLUG - plastic, No. 15, reservoir outlet tubes, used only on drawbar tractors without equipment hydraulics

2шт.

14

353-416

PLUG,Dome, 1.750" hole, Nylon

- button, nylon, 1-3/4", used on models without loader

4шт.

15

D68572

BRACKET

SUPPORT - hydraulic tubes, used on loader models only

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

17

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
