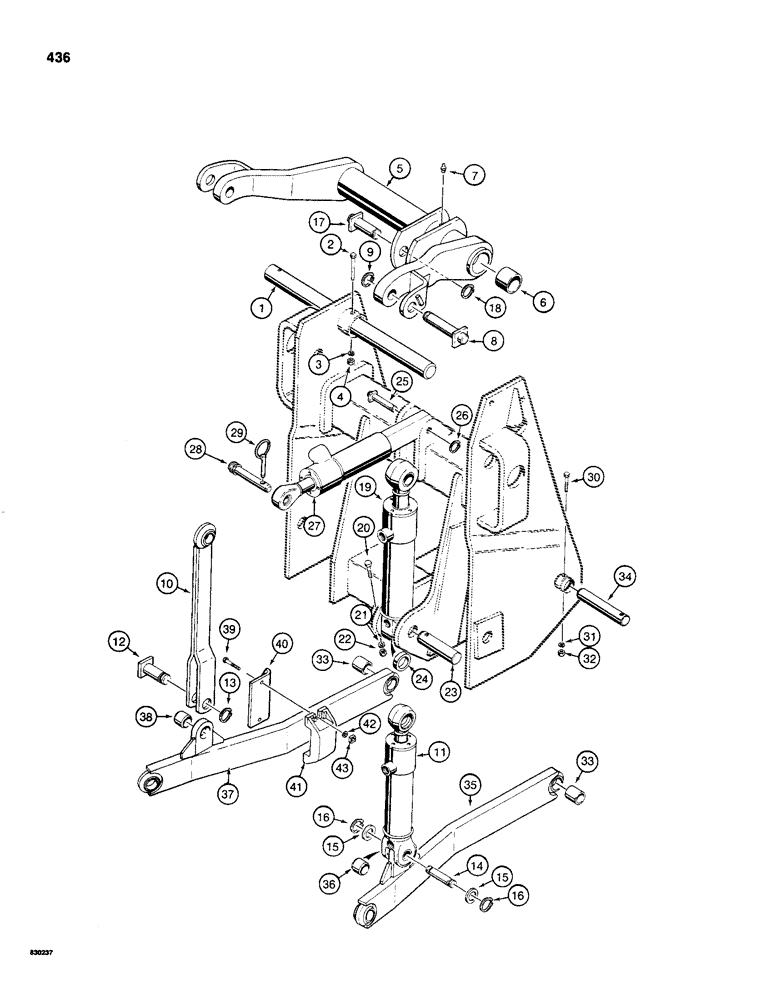

Запчасти Case 480C (436) - THREE-POINT HITCH DRAFT ARM, LINKAGE AND CYLINDERS (39) - FRAMES AND BALLASTING

1

D51569

SHAFT

ROCKSHAFT - three-point hitch

1шт.

2

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

3

92-6

LOCK WASHER,3/8"

1шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

5

D72875

TUBE,23.6" L

- rockshaft, Includes: Ref. 6

1шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- tube

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

8

D51299

PIN

- mounting, tilt cylinder and strut, upper

2шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pin retaining

2шт.

10

D51276

STAND

STRUT - stationary, tilt cylinder opposing

1шт.

11

REF

INSTRUCTION

CYLINDER - tilt, see Figures 382 and 384

1шт.

12

D51297

PIN

- mounting, strut, lower

1шт.

13

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pin retaining, lower strut mounting

1шт.

14

D30609

PIN,25.4mm OD x 95.25mm L

- mounting, tilt cylinder, lower

1шт.

15

195-553

WASHER,1", SAE

- flat, plated, cylinder alignment

2шт.

16

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

- pin retaining, lower tilt cylinder mounting

2шт.

17

D51302

PIN

- mounting, lift cylinder, upper

1шт.

18

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin, upper lift cylinder mounting #125, Ext

1шт.

19

REF

INSTRUCTION

CYLINDER - lift, see Figures 378 and 380

1шт.

20

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

21

92-6

LOCK WASHER,3/8"

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

D51695

PIN

- mounting, lift cylinder, lower

1шт.

24

D51692

SPACER

- lift cylinder mounting pin, lower

1шт.

25

D51294

PIN

- mounting, pitch cylinder at mounting frame

1шт.

26

T25683

SNAP RING,#75, Ext

Ring, Snap, , pin, pitch cylinder mounting #75, Ext

1шт.

27

REF

INSTRUCTION

CYLINDER - pitch, see Figure 386

1шт.

28

G16735

PIN

- mounting, pitch, Serial Range: cylinder-equipment

1шт.

29

A30338

PIN

- retaining, self-locking

1шт.

30

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

33

D51588

PIVOT

BUSHING - pivot, draft arm mounting pin

2шт.

34

D50724

PIN,25.4mm OD x 160.27mm L

- mounting, draft arm mounting frame

2шт.

35

D51339

ARM

- draft, right-hand, Includes: Ref. 35

1шт.

35

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.

Ref. 35 and Ref. 37 RH and LH draft arms - The 1" I.D. ball joint in this part is D51336 and the 7/8" I.D. ball joint is D51557.

1шт.

37

D51340

ARM

- draft, left-hand, Includes: Ref. 38

1шт.

38

D51608

BUSHING,25.63mm ID x 34.92mm OD x 25.4mm L

- arm

1шт.

39

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

40

D56245

PLATE

- retainer, draft arm

2шт.

41

D51722

CASTING

RETAINER - draft arm

2шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

25-226

SQUARE NUT,Sq, 3/8"-16

- square, heavy, 3/8" - 16 NC

4шт.
