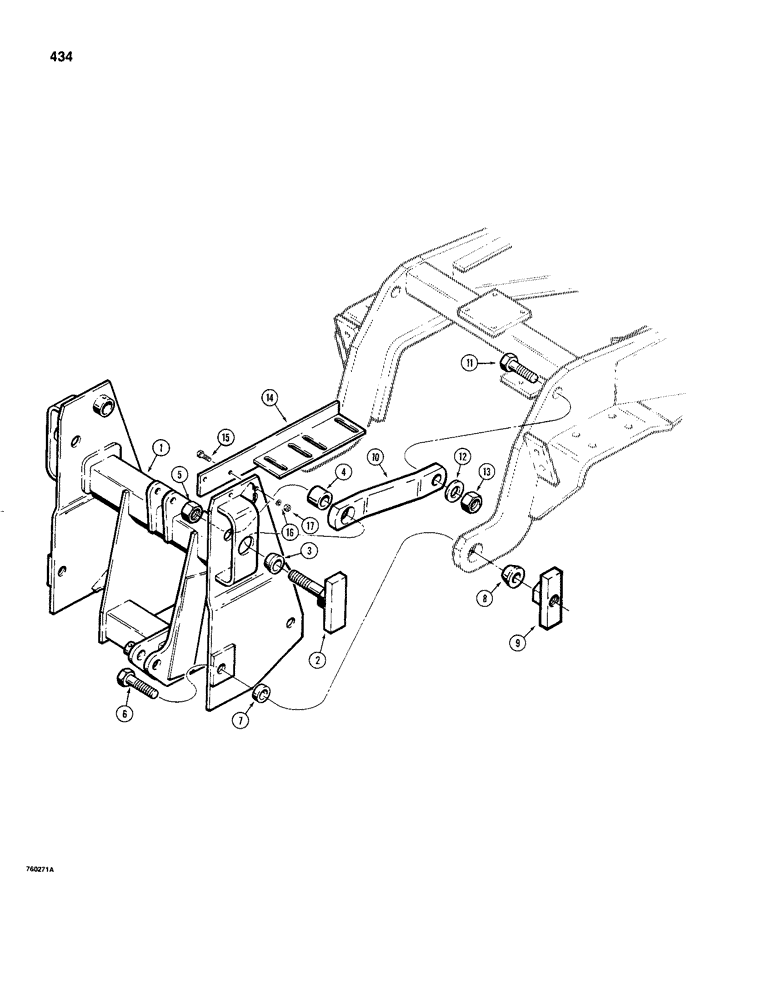

Запчасти Case 480C (434) - THREE-POINT HITCH FRAME AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

D67337

FUNNEL

FRAME - mounting, three-point hitch

1шт.

2

L47696

BLOCK

BOLT - special, hammer block

2шт.

3

L47694

CONE

WASHER - cone, 15 degree

2шт.

4

L47692

SPACER

- mounting bolt, upper

2шт.

5

129-114

NUT,1 1/2"-6, G5

- hex, 1-1/2" - 6 NC, plated

2шт.

6

13-2068

BOLT,Hex, 1-1/4" - 7 x 4-1/4", Gr 5

2шт.

7

L47693

SPACER

- mounting bolt, lower

2шт.

8

D30717

WASHER

- cone, 15 degree

2шт.

9

D99480

BLOCK

NUT - special, knock-off

2шт.

10

D70230

LINK

ARM - support, three-point hitch frame

2шт.

11

D69035

BOLT

- special, 1-1/4" - 7 NC x 3-1/2"

2шт.

12

D64968

WASHER

- special

2шт.

13

25-1020

NUT,1 1/4"-7, G5

2шт.

14

D69194

BAR

BRACKET - valve mounting

1шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
