Запчасти Case 480C (380) - G101189 THREE-POINT HITCH LIFT CYLINDER, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

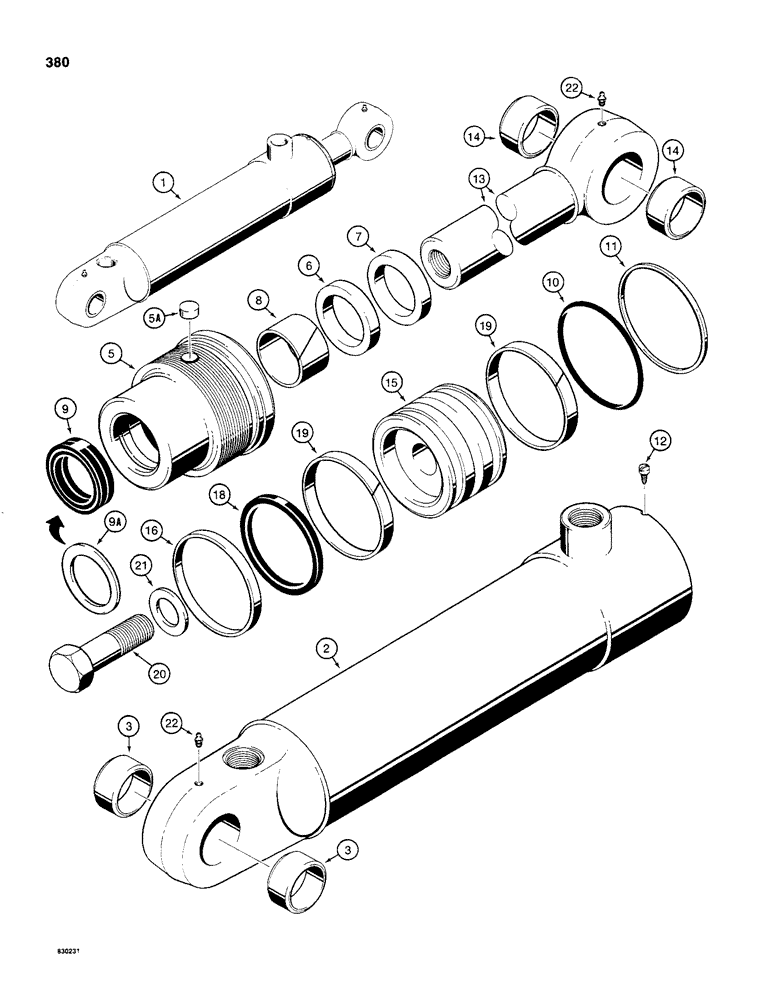

Схема запчастей Case 480C - (380) - G101189 THREE-POINT HITCH LIFT CYLINDER, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

1

G101189

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 3" (76 mm) ID x 8-3/8" (213 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G32330

TUBE,16.59" L

ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube eye

2шт.

4

RESERVED

1шт.

G103999

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105548

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G105548

1шт.

9

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105548

1шт.

9a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Seal Kit P/N G105548

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105548

1шт.

11

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105548

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G33457

PISTON ROD

ROD ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 14

1шт.

14

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye

2шт.

15

G100442

PISTON

- cylinder

1шт.

16

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Seal Kit P/N G105548

1шт.

17

RESERVED

1шт.

18

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105548

1шт.

19

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear

2шт.

Part of Seal Kit P/N G105548

1шт.

20

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

21

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105548

KIT

- seal, Includes: Ref. 7, 8, 9, 9A, 10, 11, 16, 18 and 19, same as G102404 kit plus Ref. 9A above

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
