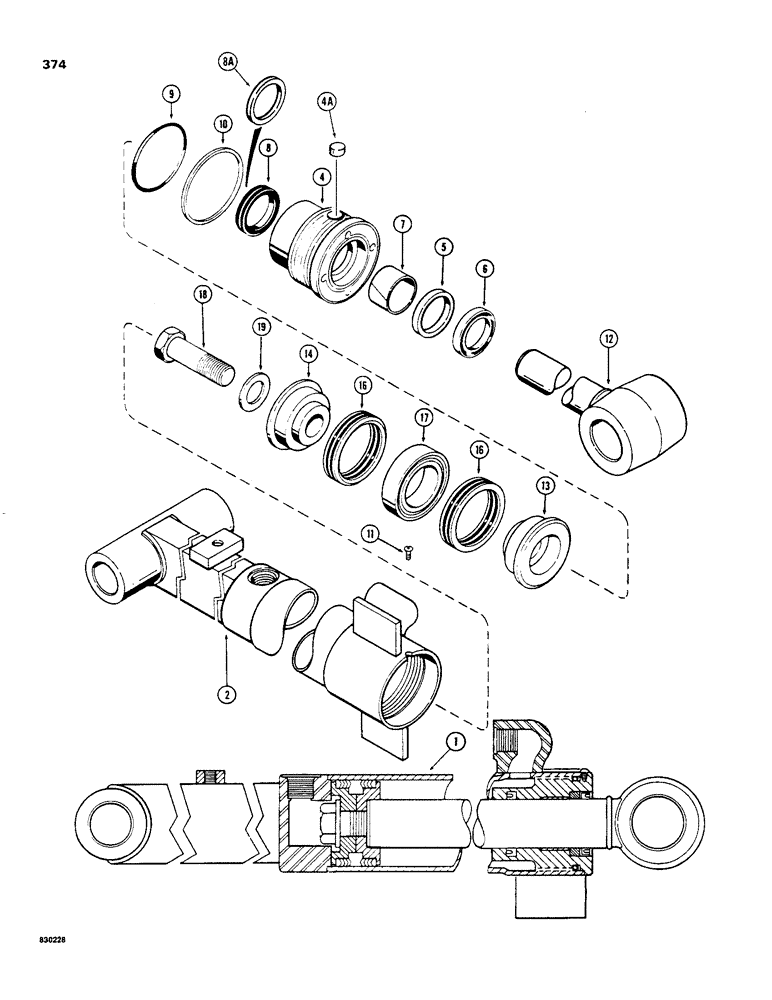

Запчасти Case 480C (374) - G33204 BACKHOE DIPPER EXTENSION CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G33204

CYLINDER

ASSEMBLY - dipper extension, 3" (76 mm) ID x 36-25/64" (925 mm) stroke, for service order G101203, Includes: Ref. 2 - 19

1шт.

2

G33205

TUBE,61.21" L

- cylinder

1шт.

3

RESERVED

1шт.

G103999

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105512

1шт.

7

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G105512

1шт.

8

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105512

1шт.

8a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Seal Kit P/N G105512

1шт.

9

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105512

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105512

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

12

G33207

ROD

- piston, 1-1/2" (38 mm) diameter

1шт.

13

G33150

PISTON

- split, rod end

1шт.

14

D28366

PISTON

- split, bolt end

1шт.

15

RESERVED

1шт.

G33151

PACKING

ASSEMBLY - piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G105512

1шт.

16

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

19

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G105512

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8, 8A, 9, 10 and P/N G33151, same as G34332 kit plus Ref. 8A above

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
