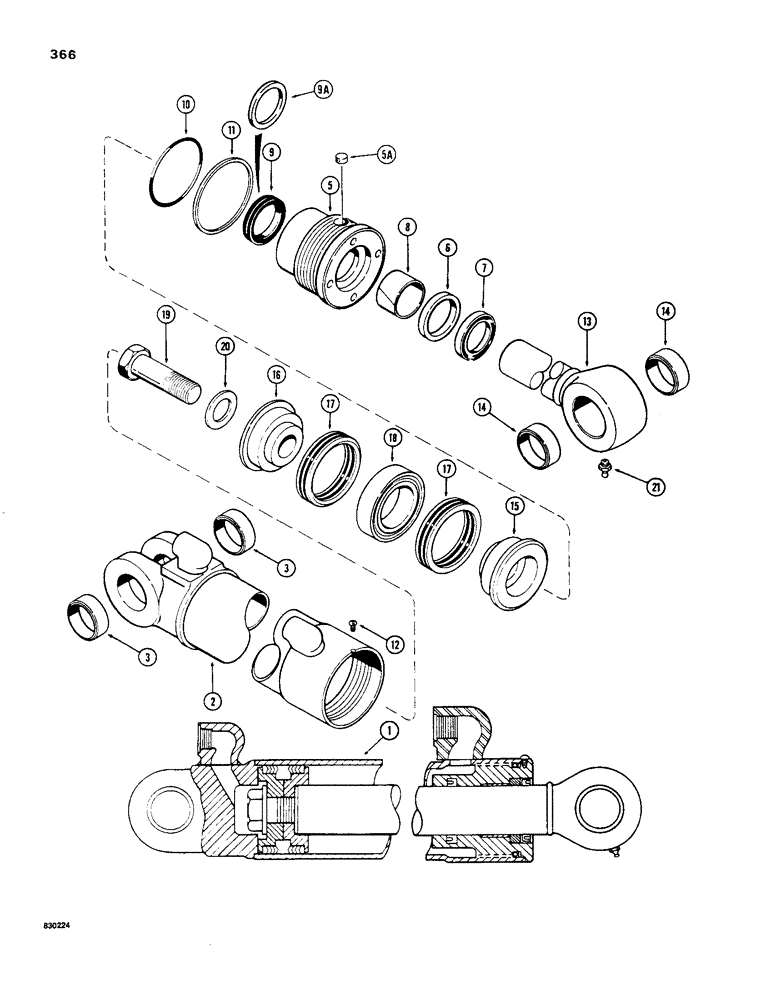

Запчасти Case 480C (366) - G33596 BACKHOE DIPPER CYLINDER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G33596

CYLINDER

ASSEMBLY - dipper, 3-1/2" (89 mm) ID x 33-1/8" (841 mm) stroke, for service order G101202, Includes: Ref. 2 - 21

1шт.

2

D43068

CYLINDER

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- tube eye

2шт.

4

RESERVED

1шт.

G34629

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit P/N G105527

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105527

1шт.

9

D36971

RING

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105527

1шт.

9a

G102647

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Seal Kit P/N G105527

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105527

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105527

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G33597

SCRAPER

ROD ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod eye

2шт.

15

G33167

PISTON

- split, rod end

1шт.

16

D28367

PISTON

- split, bolt end

1шт.

17

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- piston, V-type

2шт.

Part of Seal Kit P/N G105527

1шт.

18

D47208

RING

- center bearing

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105527

SEAL

KIT - seal, Includes: Ref. 7-11 and 17 same as G34651 kit plus Ref. 9A above

1шт.

G100778

SEAL

- piston rod, service option - severe heat or cold

1шт.
