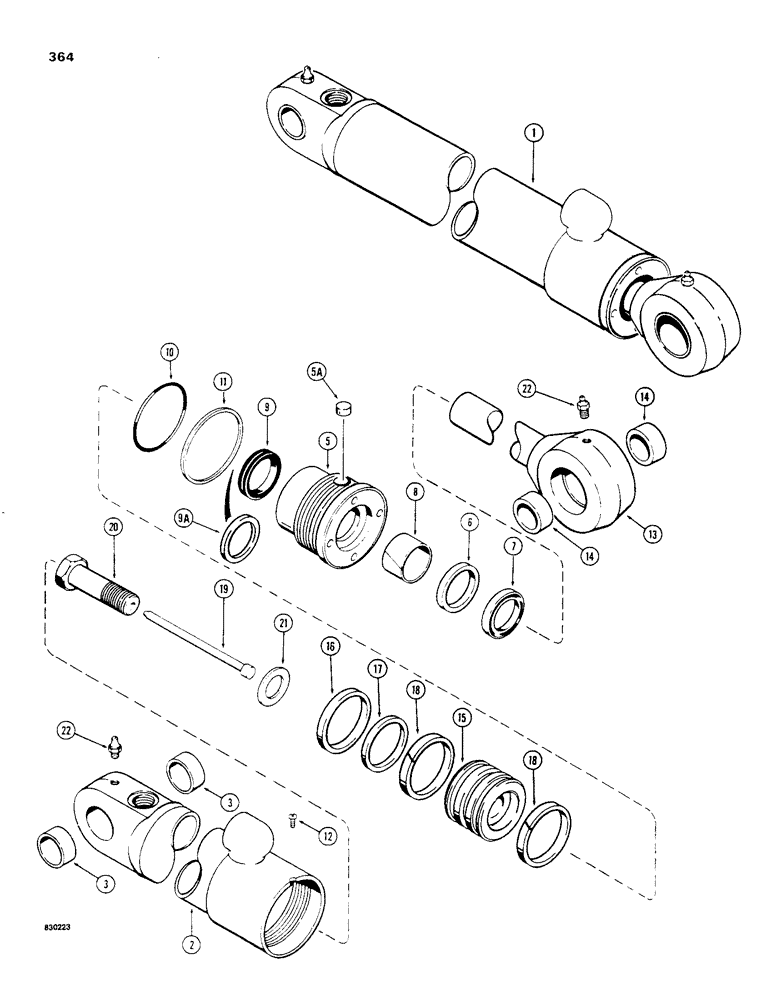

Запчасти Case 480C (364) - G101198 BACKHOE BOOM CYLINDER, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101198

CYLINDER

ASSEMBLY - boom, 4" (102 mm) ID x 37-7/8" (962 mm) stroke, Includes: Ref. 2 - 22

1шт.

2

G33215

HYD CYL SLEEVE,46.95" L

TUBE ASSEMBLY - cylinder, Includes: Ref. 3 and 4

1шт.

3

D29325

BUSHING,38.33mm ID x 53.98mm OD x 22.23mm L

- tube eye

2шт.

4

RESERVED

1шт.

G104133

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105556

1шт.

8

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

- Center

1шт.

Part of Seal Kit P/N G105556

1шт.

9

D39359

RUBBER SEAL

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105556

1шт.

9a

G103447

RING

SEAL - piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Seal Kit P/N G105556

1шт.

10

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105556

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland O-Ring

1шт.

Part of Seal Kit P/N G105556

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G33210

ROD ASSEMBLY - piston, 2-1/4" (57 mm) diameter, Includes: Ref. 14

1шт.

14

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- rod eye

2шт.

15

G100686

PISTON

- cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105556

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105556

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G105556

1шт.

19

G33217

PIN

- cushion relief

1шт.

20

G33218

BOLT

- special, 1-1/4" - 12 NF x 3", grade 8

1шт.

21

G32351

WASHER

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

G105556

SEAL

KIT - seal, Includes: Ref. 7-11 and 16-18 same as G102412 kit plus Ref. 9A above

1шт.

G100779

SEAL

- piston rod, service option - severe heat or cold

1шт.
