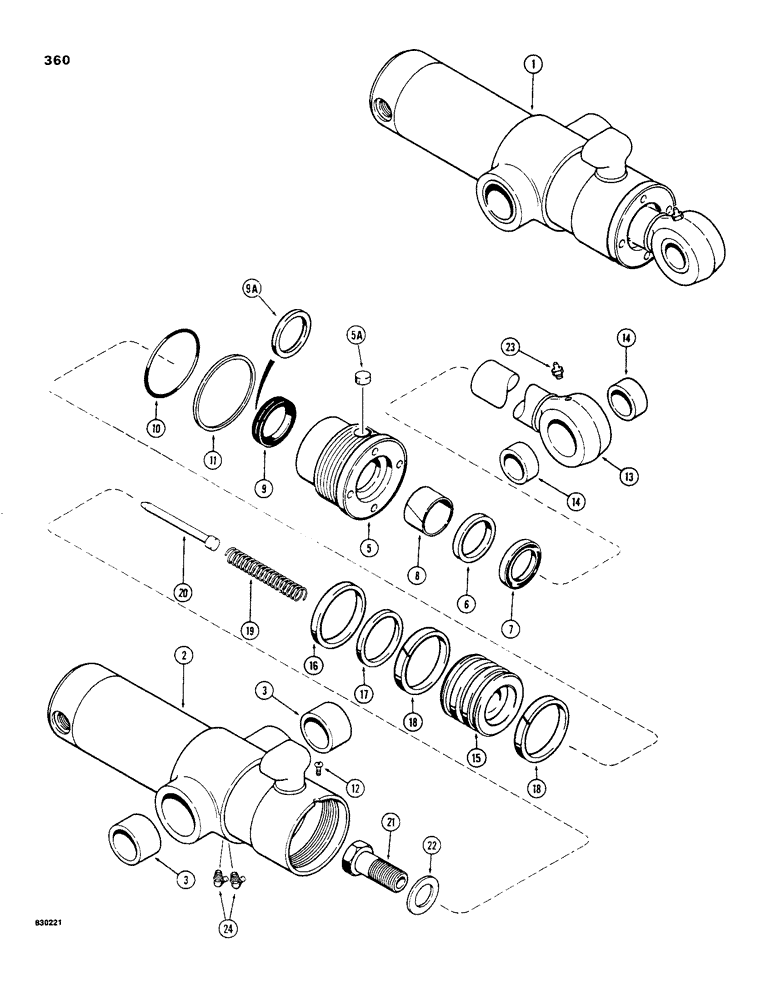

Запчасти Case 480C (360) - G101285 AND G104127 BACKHOE SWING CYLINDERS, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101285

CYLINDER

ASSEMBLY - swing, 3-1/2" (89 mm) ID x 11" (279 mm) stroke, for service order G104127, Includes: Ref. 2 - 24

2шт.

1

G104127

CYLINDER

ASSEMBLY - swing, 3-1/2" (89 mm) ID x 11" (279 mm) stroke, Includes: Ref. 2 - 24

2шт.

2

G101439

TUBE,18.19" L

ASSEMBLY - cylinder, for G101285 cylinder, Includes: Ref. 3 and 4

1шт.

2

G104128

TUBE,3.5" DIA x 18.19" L

ASSEMBLY - for G104127 cylinder, Includes: Ref. 3 and 4

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube trunnion

2шт.

4

RESERVED

1шт.

G103991

GLAND

ASSEMBLY - cylinder, Includes: Ref. 5 - 11

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G105555

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of Seal Kit P/N G105555

1шт.

9

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105555

1шт.

9a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 9 in some glands

1шт.

Part of Seal Kit P/N G105555

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105555

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105555

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

13

G33475

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 14

1шт.

14

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- rod eye

2шт.

15

G100700

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105555

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105555

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G105555

1шт.

19

D44554

VALVE SPRING

SPRING - relief

1шт.

20

G100049

PIN

- sliding, spring guide

1шт.

21

D44571

BOLT

BOLT - hex head, 1" - 14 NF x 3", grade 8

1шт.

22

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

24

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , If used 90º, 1/8" NPT x .84" lg

2шт.

G105555

SEAL

KIT - seal, Includes: Ref. 7-11 and 16-18, same as G102411 kit plus Ref. 9A above

1шт.

G100776

SEAL

- piston rod, service option - sever heat or cold

1шт.
