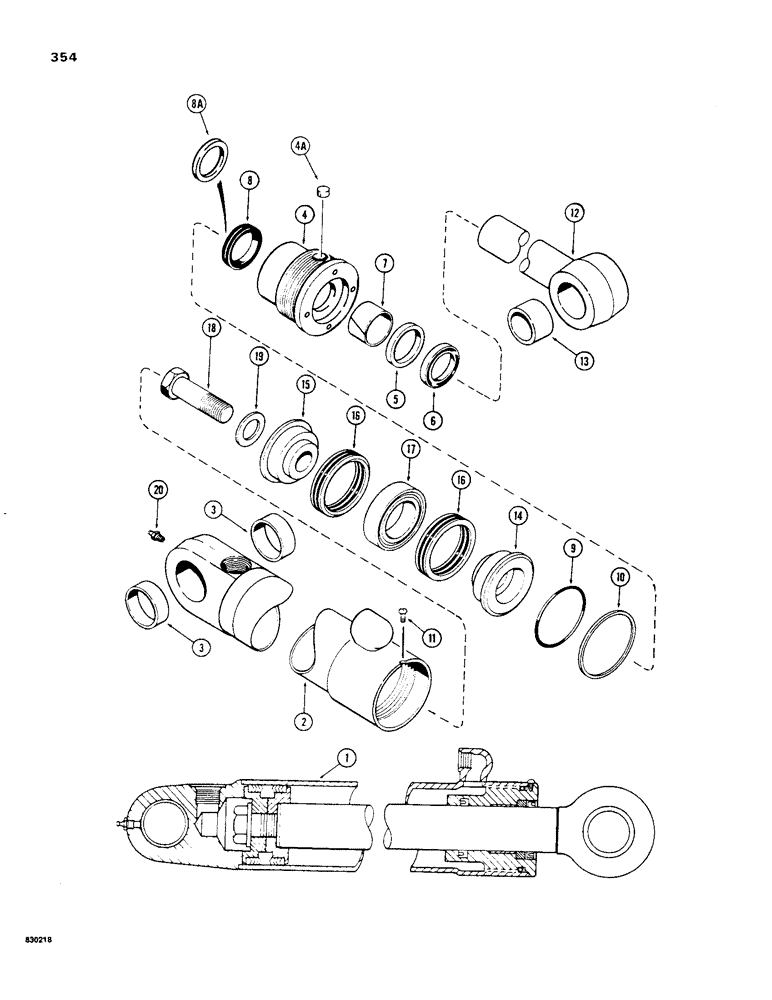

Запчасти Case 480C (354) - G35007 BACKHOE STABILIZER CYLINDER, MODELS WITH EXTENDABLE DIPPER, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G35007

CYLINDER

ASSEMBLY - stabilizer, 3-1/2" (89 mm) ID x 16-3/8" (416 mm) stroke, for service order G102294, Includes: Ref. 2 - 20

2шт.

2

G35008

TUBE,25.12" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube eye

2шт.

G34623

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

G34600

RING

- retaining

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G105518

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit P/N G105518

1шт.

8

D36970

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105518

1шт.

8a

G103705

SEAL

- piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Seal Kit P/N G105518

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105518

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105518

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

12

G33931

ROD

ASSEMBLY - piston, 1-3/4" (44 mm) diameter, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- rod eye

2шт.

14

G33520

PISTON

- split, rod end

1шт.

15

D28367

PISTON

- split, bolt end

1шт.

G33237

PACKING

- piston, Includes: Ref. 16 and 17

1шт.

Part of Seal Kit P/N G105518

1шт.

16

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

- V-type

2шт.

17

NSS

NOT SOLD SEPARAT

RING - center

1шт.

18

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105518

SEAL

KIT - seal, Includes: Ref. 6-10 and P/N G33237same as G34622 kit plug Ref. 8A above

1шт.

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- piston rod, service option - severe heat or cold

1шт.
