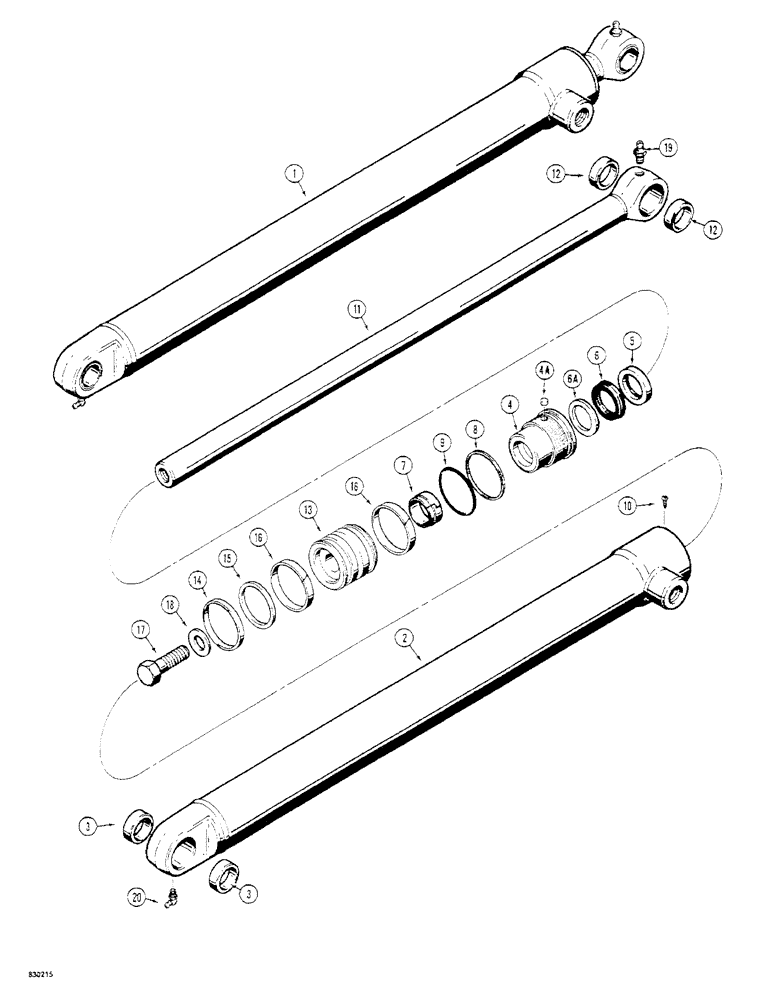

Запчасти Case 480C (348) - G101208 AND G101209 LOADER BUCKET CYLINDERS, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101208

CYLINDER ASSY.

loader bucket, left-hand, 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, Includes: Ref. 2 - 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

1

G101209

CYLINDER

loader bucket, right-hand, 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, Includes: Ref. 2 - 20

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G100854

TUBE,37.32" L

ASSEMBLY for G101208 cylinder, Includes: Ref. 3

1шт.

2

G100853

TUBE,37.32" L

ASSEMBLY for G101209 cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

tube eye

1шт.

G104008

GLAND

ASSEMBLY cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND cylinder

1шт.

4a

G102569

PLUG

nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER piston rod, outer

1шт.

Part of Seal Kit, P/N G105550

1шт.

6

D36969

CUP

SEAL piston rod, wide

1шт.

Part of Seal Kit P/N G105550

1шт.

For severe heat or cold, use Seal, P/N G100776

1шт.

6a

G104224

SEAL

piston rod, narrow in addition to Ref. 6 in some glands

1шт.

Part of Seal Kit P/N G105550

1шт.

7

D27706

WIPER SEAL

WIPER piston rod, inner, if used

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

backup, gland O-ring

1шт.

Part of Seal Kit P/N G105550

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

gland

1шт.

Part of Seal Kit P/N G105550

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping, No. 8-32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G100857

ROD

ASSEMBLY piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

rod eye

1шт.

13

G100706

PISTON

cylinder

1шт.

14

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

piston

1шт.

Part of Seal Kit P/N G105550

1шт.

15

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

RING backup, piston seal

1шт.

Part of Seal Kit P/N G105550

1шт.

16

G100714

RING

wear

1шт.

Part of Seal Kit P/N G105550

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

G105550

SEAL

KIT, Includes: Ref. 5, 6, 6A, 8, 9, 14, 15 and 16, same as G102406 kit plus Ref. 6A above

1шт.

G100776

SEAL

piston rod, service option, severe heat or cold

1шт.
