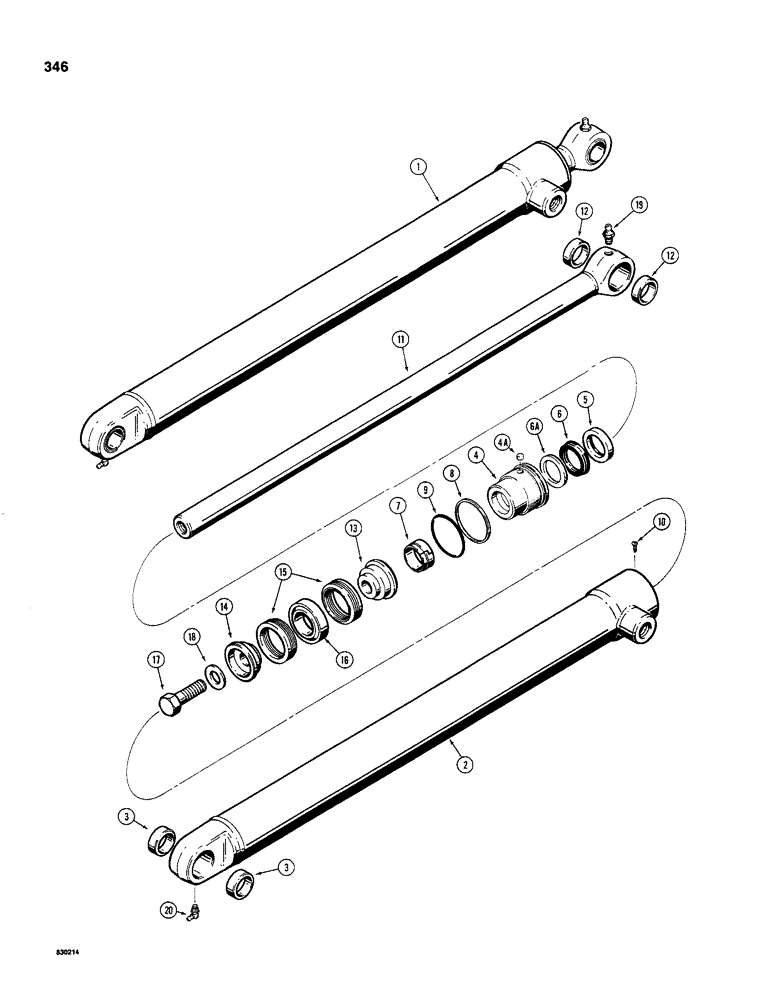

Запчасти Case 480C (346) - G100859 AND G100860 LOADER BUCKET CYLINDERS, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G100860

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader bucket, left-hand, 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, for service order G101208, Includes: Ref. 2 - 20

1шт.

1

G100859

CYLINDER ASSY.

CYLINDER ASSEMBLY - loader bucket, right-hand, 2-1/2" (64 mm) ID x 29-1/2" (749 mm) stroke, for service order G101209, Includes: Ref. 2 - 20

1шт.

2

G100854

TUBE,37.32" L

ASSEMBLY - left-hand cylinder, Includes: Ref. 3

1шт.

2

G100853

TUBE,37.32" L

ASSEMBLY - right-hand cylinder, Includes: Ref. 3

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube eye

2шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G32294

1шт.

6

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G32294

1шт.

6a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 6 in some glands

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod, inner, if used

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G32294

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32294

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G100857

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 12

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye

2шт.

13

G33419

PISTON

- split, rod end

1шт.

14

D28364

PISTON

- split, bolt end

1шт.

G33193

PACKING

- piston, Includes: Ref. 15 and 16

1шт.

Part of Seal Kit P/N G32294

1шт.

15

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

16

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

17

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

20

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G32294

SEAL

KIT - seal, Includes: Ref. 5, 6, 8, 9 and 14, also, order G104224 seal

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
