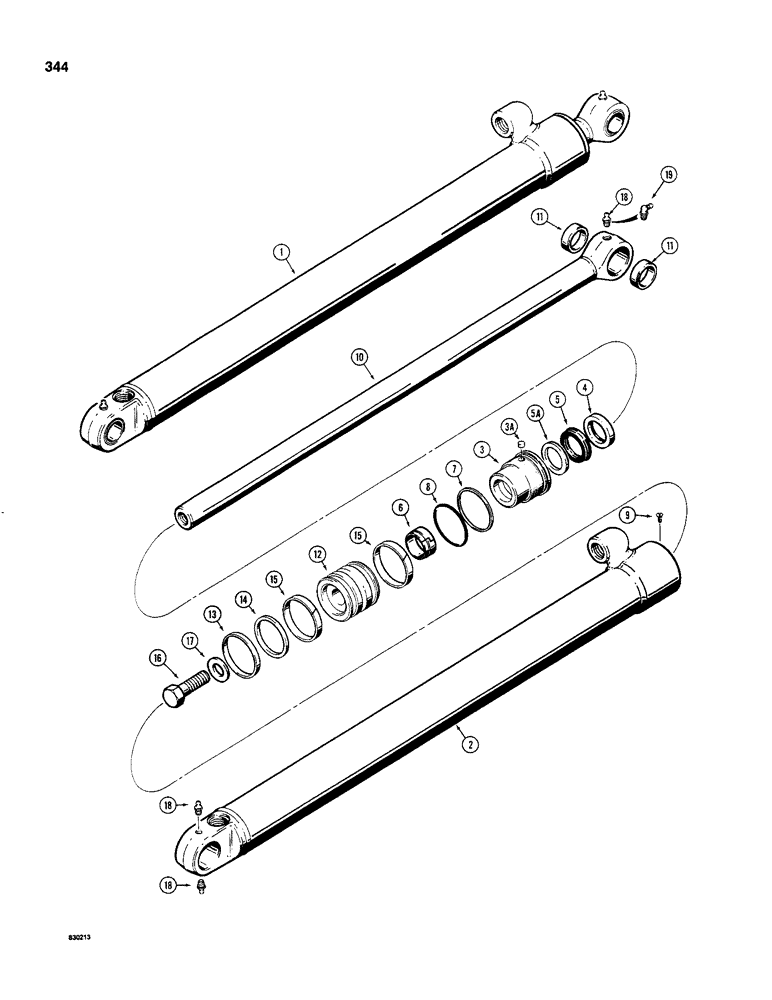

Запчасти Case 480C (344) - G101206 AND G101207 LOADER LIFT CYLINDERS, WITH ONE PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G101207

CYLINDER,Double Acting, 38.1mm Rod, 797.4mm Stroke

ASSEMBLY - lift, right-hand side before tractor SN 8968653 or left hand side on tractor SN 8968653 and after, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, Includes: Ref. 2 - 19

1шт.

1

G101206

CYLINDER

ASSEMBLY - lift, left-hand side before tractor SN 8968653 or right hand side on tractor SN 8968653 and after, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, Includes: Ref. 2 - 19

1шт.

2

D49093

CYLINDER

TUBE - for G101207 cylinder

1шт.

2

D49092

CYLINDER

TUBE - for G101206 cylinder

1шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit P/N G105550

1шт.

5

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G105550

1шт.

5a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

Part of Seal Kit P/N G105550

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner, if used

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKING RING - gland O-ring

1шт.

Part of Seal Kit P/N G105550

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105550

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

10

G35001

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod eye

2шт.

12

G100706

PISTON

- cylinder

1шт.

13

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105550

1шт.

14

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105550

1шт.

15

G100714

RING

- wear

2шт.

Part of Seal Kit P/N G105550

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NC x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, 3 used on G101207 cylinder, 2 used on G101206 cylinder

2-3шт.

19

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Used on G101206 cylinder, Rod end 90º, 1/8" NPT x .84" lg

1шт.

G105550

SEAL

KIT - seal, Includes: Ref. 4, 5, 5A, 7, 8 and 13-15; same as G102406 kit plus Ref. 5A above

1шт.

G100776

SEAL

- piston rod, service option - servere heat or cold

1шт.
