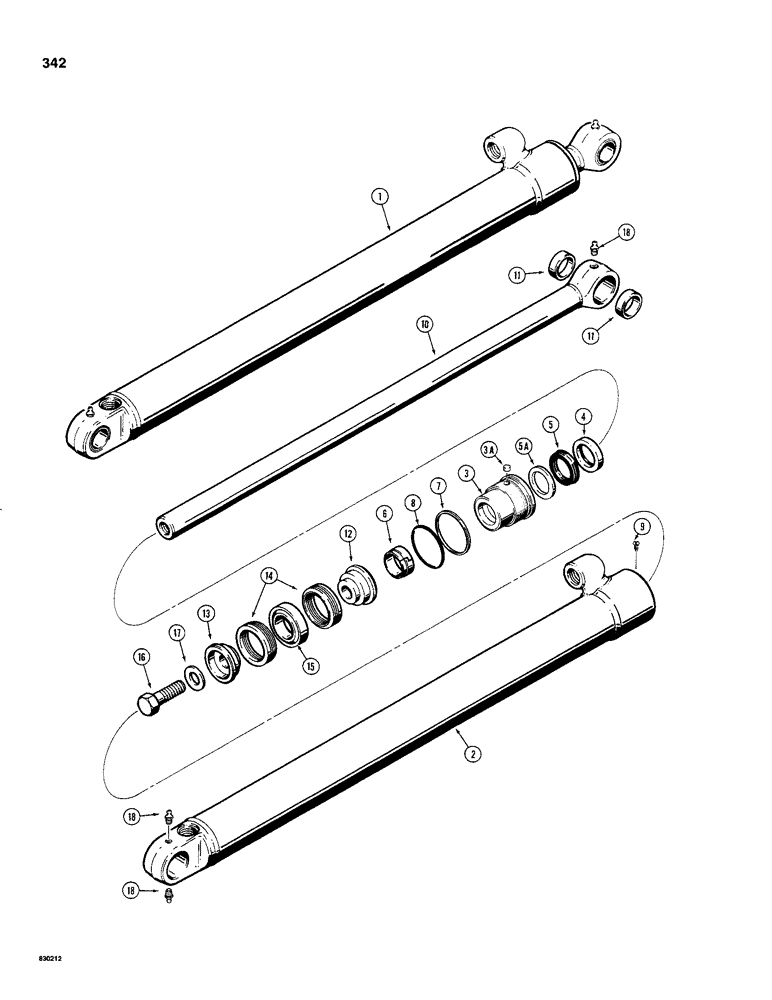

Запчасти Case 480C (342) - G35002 AND G35003 LOADER LIFT CYLINDERS, WITH TWO PIECE PISTON (35) - HYDRAULIC SYSTEMS

1

G35003

CYLINDER

ASSEMBLY - lift, right-hand, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, for service order G101207, Includes: Ref. 2 - 18

1шт.

1

G35002

CYLINDER

ASSEMBLY - lift, left-hand, 2-1/2" (64 mm) ID x 31-7/16" (799 mm) stroke, for service order G101206, Includes: Ref. 2 - 18

1шт.

2

D49093

CYLINDER

TUBE - left-hand cylinder

1шт.

2

D49092

CYLINDER

TUBE - right-hand cylinder

1шт.

G104008

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G32294

1шт.

5

D36969

CUP

U-CUP SEAL - piston rod, wide

1шт.

Part of Seal Kit P/N G32294

1шт.

5a

G104224

SEAL

- piston rod, narrow, used in addition to Ref. 5 in some glands

1шт.

6

D27706

WIPER SEAL

WIPER - piston rod, inner, if used

1шт.

7

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G32294

1шт.

8

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G32294

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, No. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

10

G35001

ROD

ASSEMBLY - piston, 1-1/2" (38 mm) diameter, Includes: Ref. 11

1шт.

11

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- rod eye

2шт.

12

G33419

PISTON

- split, rod end

1шт.

13

D28364

PISTON

- split, bolt end

1шт.

G33193

PACKING

- piston, Includes: Ref. 14 and 15

1шт.

Part of Seal Kit P/N G32294

1шт.

14

NSS

NOT SOLD SEPARAT

PACKING - V-type

2шт.

15

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

16

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NF x 2-1/2", grade 8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

3шт.

G32294

SEAL

KIT - seal, Includes: Ref. 4, 5, 7, 8 and G33193, also, order P/N G104224 seal

1шт.

G100776

SEAL

- piston rod, service option - severe heat or cold

1шт.
