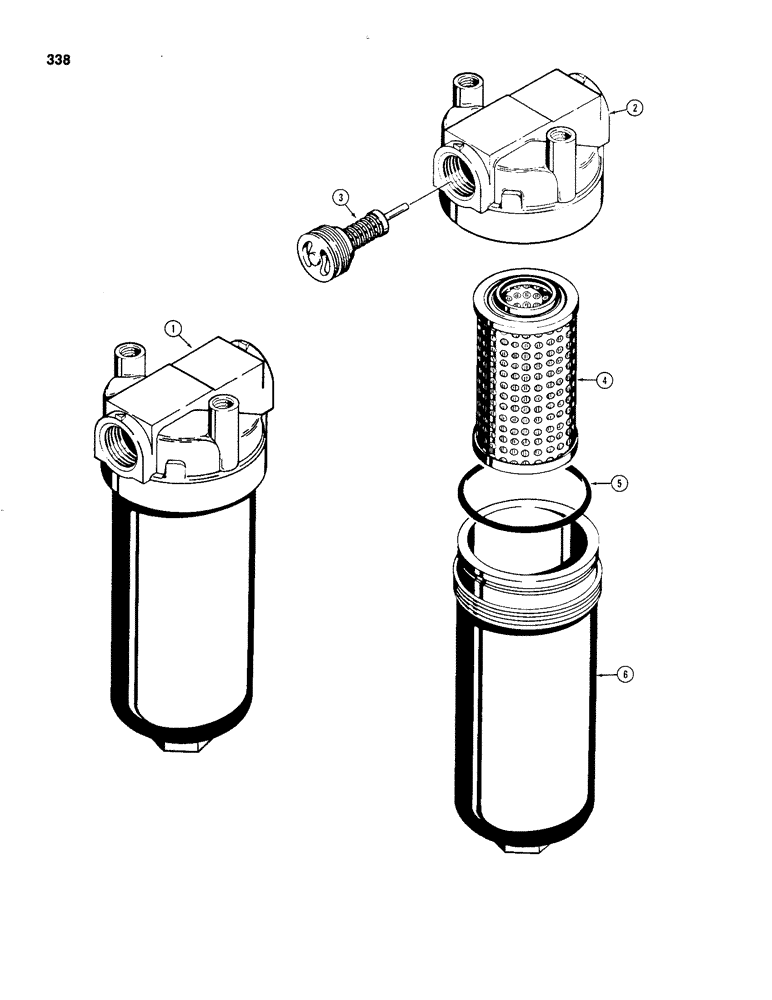

Запчасти Case 480C (338) - D73910 AND D84789 HYDRAULIC OIL FILTERS (35) - HYDRAULIC SYSTEMS

1

D84789

FILTER

ASSEMBLY - hydraulic oil, identified by Marvel No. 303161-5000, Includes: Ref. 2 - 6

1шт.

1

D73910

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, identified by Marvel No. M2737A, Includes: Ref. 2 - 6

1шт.

D61903

HEAD

ASSEMBLY - D73910 filter only, Includes: Ref. 2 and 3

1шт.

N6050

FILTER

HEAD ASSEMBLY - D84789 filter only, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

3

D82933

VALVE

BYPASS VALVE - oil, D73910 filter only, can be replaced by D87699 kit, see below

1шт.

3

D58199

VALVE

BYPASS VALVE - oil, D84789 filter only

1шт.

D75831

FILTER

ELEMENT ASSEMBLY - filter, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

5

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- filter to head

1шт.

6

D61948

HOUSING

- filter

1шт.

D87699

FILTER

KIT - includes D82933 oil bypass valve and D87439 sender, see Figure 82 Ref. 50

1шт.
