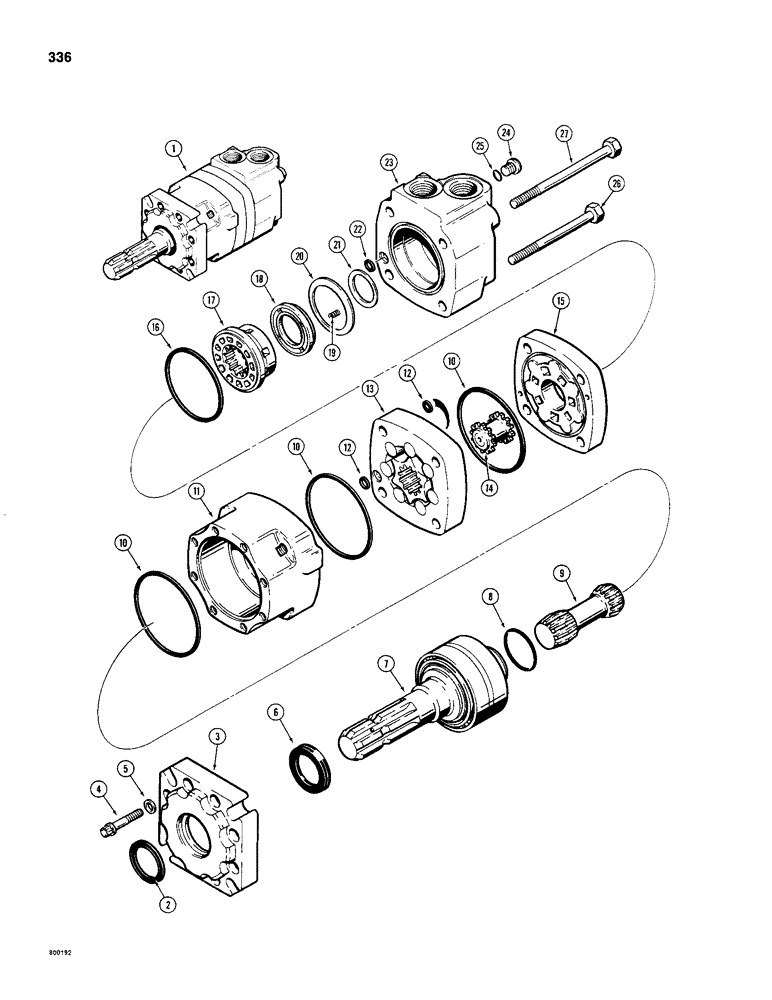

Запчасти Case 480C (336) - D90093 PTO HYDRAULIC MOTOR (35) - HYDRAULIC SYSTEMS

1

D90093

MOTOR

- hydraulic, PTO, Char-Lynn No. 109-1026-08-004, Includes: Ref. 2 - 27

1шт.

For motor identification see name plate on motor, check model number of motor before ordering parts, see other PTO hydraulic motor option on Figure 334.

1шт.

2

D74402

SEAL

- dust

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - shaft end

1шт.

4

166-526

12 PT SCREW,Flg, 5/16" - 24 x 1 1/4", Gr 8

SCREW - Ferry head, 5/16" - 24 NF x 1-1/4"

8шт.

5

C14301

WASHER

- special

8шт.

6

N6700

SEAL

- shaft

1шт.

7

N6696

SHAFT ASSY.

SHAFT AND BEARING ASSEMBLY - PTO motor

1шт.

8

N6699

SEAL

- bearing housing, inner

1шт.

9

NSS

NOT SOLD SEPARAT

DRIVE - main

1шт.

10

D74397

SEAL

- between housings

3шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - bearing

1шт.

12

D74398

SEAL

- gerotor

2шт.

13

NSS

NOT SOLD SEPARAT

GEROTOR ASSEMBLY - PTO motor

1шт.

14

NSS

NOT SOLD SEPARAT

DRIVE - valve

1шт.

15

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

16

D74396

SEAL

-, Serial Range: plate-housing

1шт.

17

NSS

NOT SOLD SEPARAT

VALVE - hydraulic

1шт.

18

D74392

PLATE

ASSEMBLY - balancing

1шт.

19

N6697

SPRING

- balancing plate

2шт.

20

D74390

SEAL

- outer

1шт.

21

D74391

SEAL

- inner

1шт.

22

L30893

O-RING,1/16" Thk x 5/16" ID

SEAL - plate to housing, 7/16 x 5/16 x 1/16 in

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - closed end

1шт.

24

278548

PLUG,Hex, 7/16"-20 ORB

- Drain port, removed when drain tube is connected, Incl Ref 25 Hex Soc, 7/16"-20 ORB

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- plug

1шт.

26

28-780

BOLT - hex head, 7/16" - 20 NF x 5"

3шт.

27

28-788

BOLT - hex head, 7/16" - 20 NF x 5-1/2"

1шт.
