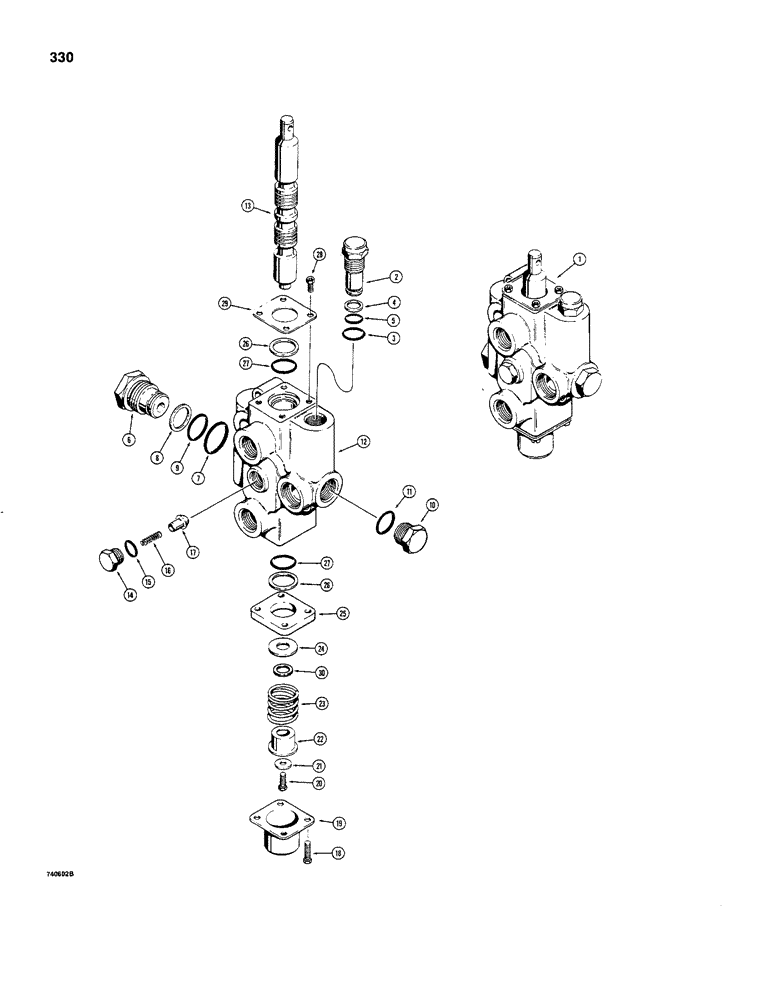

Запчасти Case 480C (330) - EXTENDABLE DIPPER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

D65588

VALVE

CONTROL VALVE ASSEMBLY - extendable dipper, Cross No. BA11AD2EF1, Includes: Ref. 2 - 30

1шт.

D54590

PLUG

ASSEMBLY - relief, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG - relief

1шт.

3

318-5007

O-RING - outer, large

1шт.

4

D56904

BACK-UP RING

BACKUP RING - O-ring

1шт.

5

A65918

O-RING,0.551" ID x 0.691" OD

- inner, small

1шт.

6

D54844

PLUG

SLEEVE - power beyond

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- sleeve, outer, large

1шт.

8

D54800

O-RING

BACKUP RING - O-ring

1шт.

9

C14199

O-RING

- sleeve, inner, small

1шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

If used, Includes: Ref. 11 Hex Hd, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 218-5158 plug

1шт.

10

218-5159

PLUG,1-3/16" - 12 ORB

- hex, 1-3/16" - 12 NF, if used, Includes: Ref. 11

1шт.

11

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 218-5159 plug

1шт.

12

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

D63363

PLUG

ASSEMBLY - load check valve, Includes: Ref. 14 and 15

1шт.

14

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

16

D54587

VALVE SPRING

SPRING - load check valve

1шт.

17

D54589

VALVE

PLUNGER - load check valve

1шт.

18

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

- hex socket head, 1/4" - 20 NC x 3/4"

4шт.

19

D54582

CYLINDER END CAP

CAP - spool end

1шт.

20

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

1шт.

21

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

22

D54581

COLLAR CLAMP

COLLAR - spring retaining

1шт.

23

D66249

SPRING

CENTERING SPRING - spool

1шт.

24

195-2200

WASHER

- flat, 7/16", plated

1шт.

25

D54583

SPACER

- spool cap

1шт.

26

D54585

WASHER

- special, seal retaining

2шт.

27

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- spool seal

2шт.

28

61-48

HEX SOC SCREW,1/4"-20 x 1/2"

SCREW - hex socket head, 1/4" - 20 NC x 1/2"

4шт.

29

D63361

PLATE - retaining, seal

1шт.

30

D66250

SHIM - centering spring, if used

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug

1шт.
