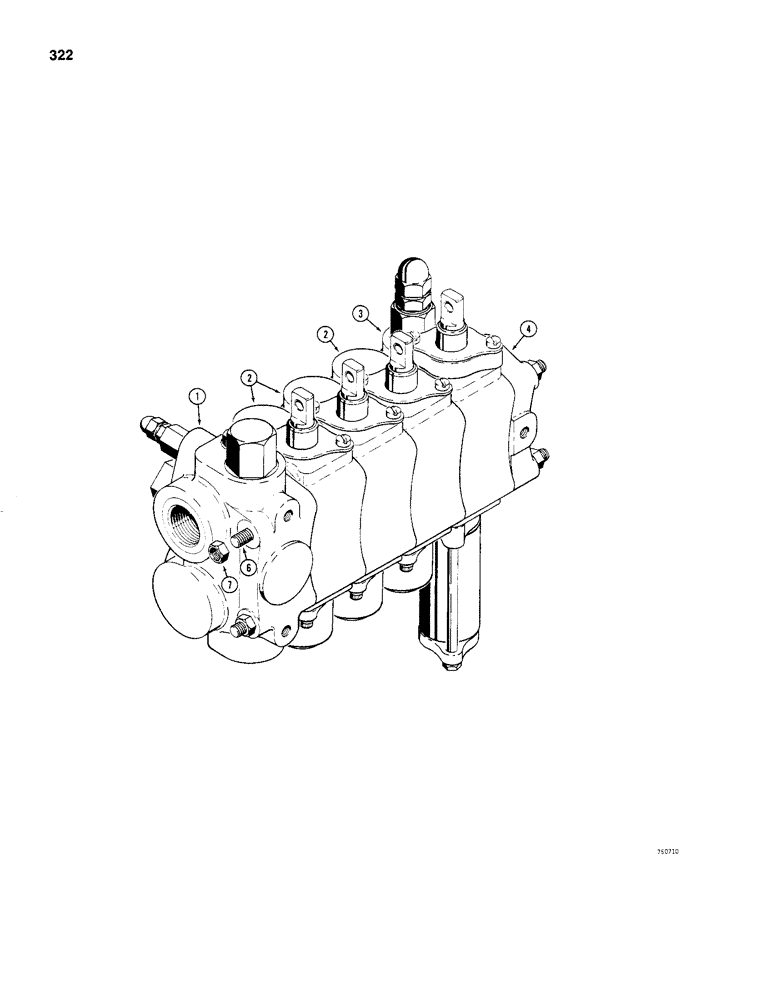

Запчасти Case 480C (322) - THREE-POINT HITCH CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D52970

CONTROL VALVE

- three-point hitch, four spool, Includes: Ref. 1 - 7

1шт.

1

D53593

HYD VALVE SECTION

INLET SECTION - parts list Figure 324

1шт.

2

D53594

HYD VALVE SECTION

PITCH, TILT AND IMPLEMENT SECTION - parts list Figure 328

3шт.

3

D53595

HYD VALVE SECTION

LIFT SECTION - parts list Figure 326

1шт.

4

D53600

HYD VALVE SECTION

END SECTION - valve

1шт.

5

D53598

LARGE PLATE

PLATE - orifice, see Figure 324, Ref. 24 for location in inlet section, not illustrated

1шт.

6

D53599

TIE-ROD

BOLT - tie, valve sections

3шт.

7

129-524

NUT,3/8"-24, G8

6шт.
