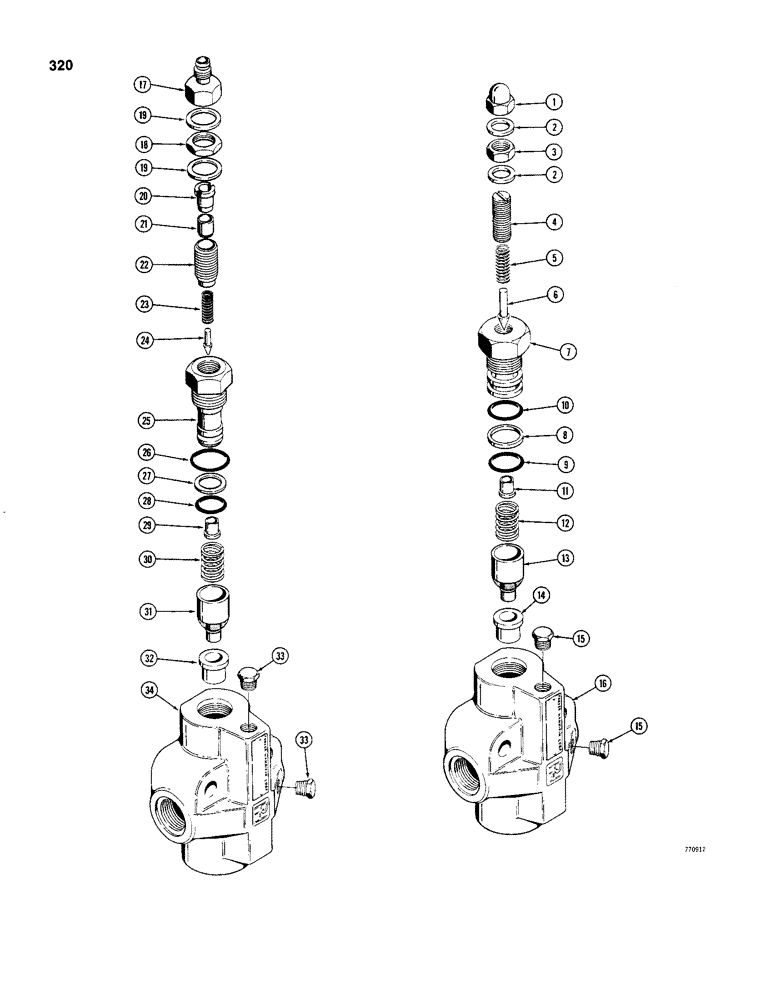

Запчасти Case 480C (320) - D71668 AND D75308 RELIEF VALVES (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
D71668
VALVE
RELIEF VALVE - used on units without loader only, Includes: Ref. 1 - 16
1шт.
1
129-514
CROWN NUT,Low, 5/16" - 24
DOME NUT - relief valve, 5/16" - 24 NF
1шт.
2
D26270
WASHER, SEALING
WASHER - special
2шт.
3
86637933
JAM NUT,5/16" - 24, Gr 5
1шт.
4
176-299
SET SCREW,Sl Hdls, 5/16" - 24 x 7/8", Flat Pt
SCREW - adjusting, 5/16" - 24 NF x 7/8"
1шт.
5
D26268
SPRING
- pilot
1шт.
6
D26267
PLUNGER
- relief valve
1шт.
7
D26262
CAP
- relief valve
1шт.
8
L30443
BACK-UP RING,0.547" ID x 0.049" Width
BACKUP RING - L30444 O-ring
1шт.
9
L30444
O-RING,0.521" ID x 0.661" OD
- relief valve cap, inner
1шт.
11
D26266
SEAT
- plunger
1шт.
12
D52319
SPRING
- relief valve
1шт.
13
D37062
VALVE
POPPET - relief valve
1шт.
14
D37063
SEAT
- poppet
1шт.
15
221-661
PLUG,Hex Hd, 1/8"-27
- special, 1/8" NPT, do use plated plug this location
2шт.
16
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
D75308
VALVE
RELIEF VALVE - used on loader models with PTO, Includes: Ref. 17 - 34
1шт.
17
D27260
FITTING
- pilot
1шт.
18
129-167
JAM NUT,Jam, 5/8"-18, G5
JAM NUT - hex, 5/8" - NF, plated
1шт.
19
D27259
SEAL
- special
2шт.
20
N6804
SEAT
RETAINER - piston
1шт.
21
D27261
PISTON
- relief valve
1шт.
22
D27258
ADJUSTMENT SCREW,5/8" - 18 x 1 1/16"
- adjusting
1шт.
23
D26268
SPRING
- pilot
1шт.
24
D26267
PLUNGER
- pilot
1шт.
25
D27257
CAP - relief valve
1шт.
27
L30443
BACK-UP RING,0.547" ID x 0.049" Width
BACKUP RING - O-ring
1шт.
28
L30444
O-RING,0.521" ID x 0.661" OD
- small
1шт.
29
D78417
SEAT
- plunger
1шт.
30
D26261
VALVE SPRING
SPRING - relief valve
1шт.
31
L30687
SPOOL
POPPET - relief valve
1шт.
32
D26259
SEAT
- poppet
1шт.
33
221-661
PLUG,Hex Hd, 1/8"-27
- special, 1/8" NPT, do not use plated plug this location
2шт.
34
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
10
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- relief valve cap, outer
1шт.
26
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
- large
1шт.
Выбрано товаров: 36
