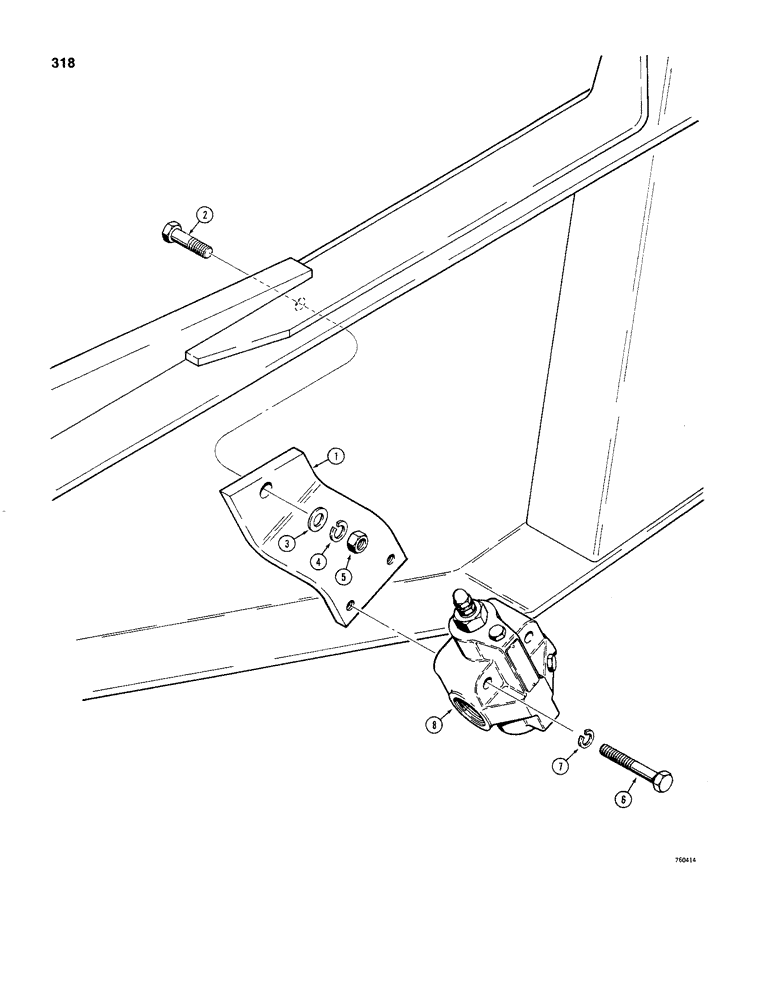

Запчасти Case 480C (318) - RELIEF VALVE AND MOUNTING PLATE, MODELS WITHOUT LOADER (35) - HYDRAULIC SYSTEMS

1

D72166

BRACKET

- valve mounting

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Bracket mounting Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

1шт.

4

92-6

LOCK WASHER,3/8"

1шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

6

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Valve mounting Hex, 5/16"-18 x 2", G5

2шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

8

D71668

VALVE

RELIEF VALVE ASSEMBLY - models without loader, parts list Figure 320

1шт.

8

D75308

VALVE

RELIEF VALVE ASSEMBLY - loader models with PTO, parts list Figure 320, not shown

1шт.
