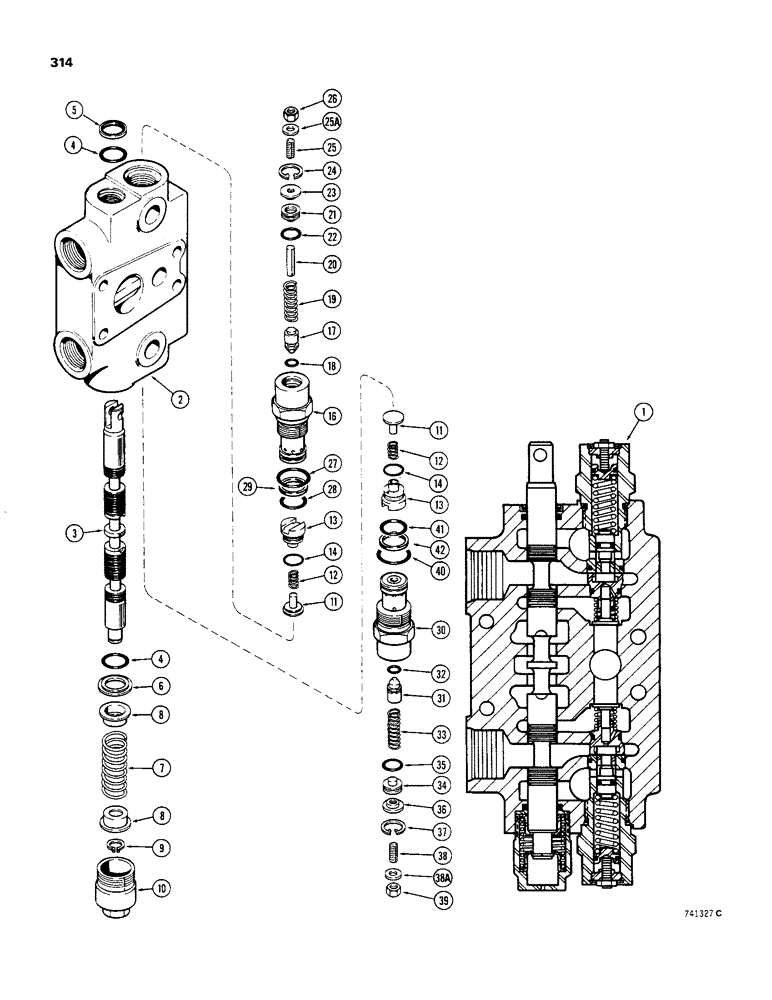

Запчасти Case 480C (314) - BACKHOE CONTROL VALVE, BOOM SECTION (35) - HYDRAULIC SYSTEMS

1

G100186

VALVE

SECTION ASSEMBLY - boom, Includes: Ref. 2 - 42

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - boom section

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - boom section

1шт.

4

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

5

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- valve spool

1шт.

6

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

7

G34463

SPRING

CENTERING SPRING - spool

1шт.

8

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

9

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

10

G33080

CAP

- centering spring

1шт.

11

G33081

VALVE POPPET

POPPET - load check valve

2шт.

12

G33573

SPRING

- load check valve

2шт.

13

G33084

PLUG

- load check valve

2шт.

14

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

15

RESERVED

1шт.

G34052

KIT

RELIEF VALVE ASSEMBLY - upper, order G34862 kit, Includes: Ref. 16 - 29

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

17

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

18

G102844

O-RING

- poppet

1шт.

19

G105693

VALVE SPRING

SPRING - relief valve

1шт.

20

G33241

PIN

- stop, relief valve

1шт.

21

G33091

PISTON

- relief valve

1шт.

22

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

23

G33092

RETAINER

- relief valve

1шт.

24

G102782

SET SCREW,1/4" - 20 x 1"

SNAP RING - relief valve

1шт.

25

G102782

SET SCREW,1/4" - 20 x 1"

SET SCREW - hex socket, headless, 1/4" - 20 NC x 3/4"

1шт.

25a

G102781

WASHER

- special, if used

1шт.

26

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

28

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

29

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, if used

1шт.

G34043

KIT

RELIEF VALVE ASSEMBLY - lower, order G34862 kit, Includes: Ref. 30 - 42

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

31

NSS

NOT SOLD SEPARAT

POPPET - relief valve

1шт.

32

G102844

O-RING

- poppet

1шт.

33

G105693

VALVE SPRING

SPRING - relief valve

1шт.

34

G33091

PISTON

- relief valve

1шт.

35

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

36

G33092

RETAINER

- relief valve

1шт.

37

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , relief valve 0.75", Int, #75

1шт.

38

G102782

SET SCREW,1/4" - 20 x 1"

SET SCREW - hex socket, headless, 1/4" - 20 NC x 3/4"

1шт.

38a

G102781

WASHER

- special, if used

1шт.

39

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

40

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- large

1шт.

41

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

42

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

BACKUP RING - O-ring, if used

1шт.

G34862

VALVE

KIT - service for G34052 and G34043 valves, Includes Refs. 16 - 29 or 30 - 42

1шт.
