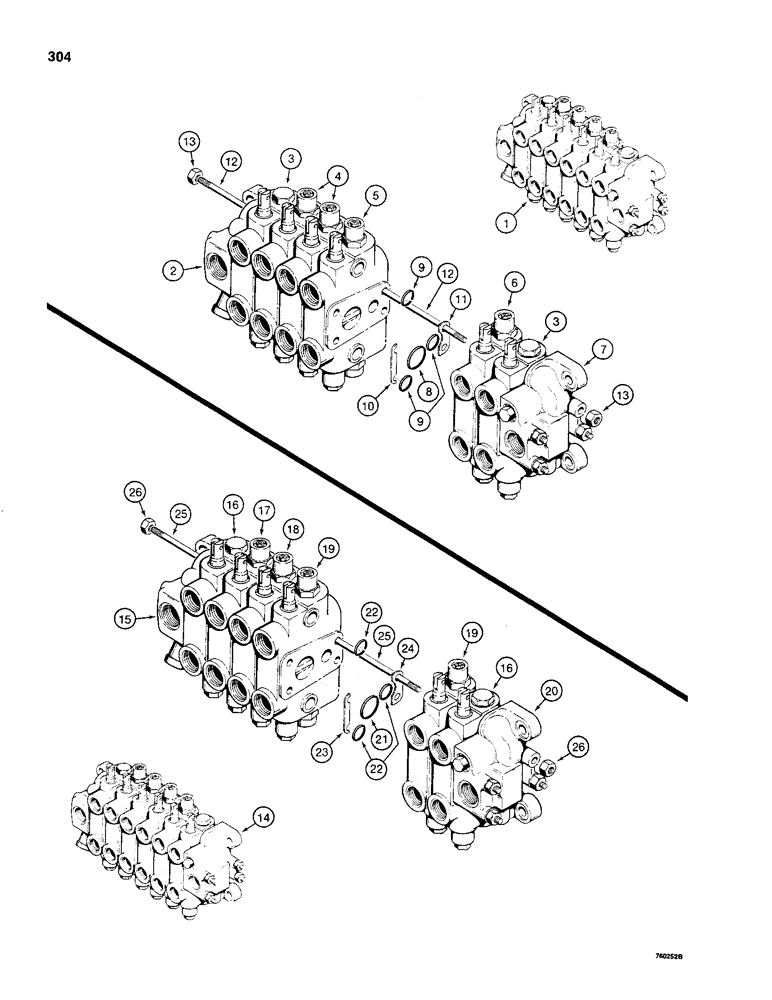

Запчасти Case 480C (304) - BACKHOE CONTROL VALVE, USED WITH SINGLE LEVER CONTROL (35) - HYDRAULIC SYSTEMS

1

G100182

VALVE

CONTROL VALVE ASSEMBLY - foot swing models, Includes: Ref. 2 - 13

1шт.

2

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 306

1шт.

3

G100193

VALVE

STABILIZER SECTION - parts list Figure 308

2шт.

4

G35444

VALVE

BUCKET AND DIPPER SECTION - parts list Figure 310

2шт.

5

G100185

VALVE

SWING SECTION - parts list Figure 312

1шт.

6

G100186

VALVE

BOOM SECTION - parts list Figure 314

1шт.

7

G33102

MANIFOLD

INLET SECTION - parts list Figure 306

1шт.

8

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- large, section ports

7шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- small, section ports

21шт.

10

G33964

SHIM,.002" Thk

(0.051 mm), Port side of valve .002" Thk

7шт.

11

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002"), Non-port side of valve 0.051mm Thk

7шт.

12

G33124

BOLT

- tie, 3/8" - 16 NC x 17-3/4"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

14

G100182

VALVE

ASSEMBLY - hand swing models, cannot be used with extendable dipper, used w/ dual lever control, Includes: Ref. 15 - 36

1шт.

15

G33108

MANIFOLD

OUTLET SECTION - parts list Figure 306, used w/ dual lever control

1шт.

16

G100193

VALVE

STABILIZER SECTION - parts list Figure 308, used w/ dual lever control

2шт.

17

G100185

VALVE

SWING SECTION- parts list Figure 312, used w/ dual lever control

1шт.

18

G100186

VALVE

BOOM SECTION - parts list Figure 314, used w/ dual lever control

1шт.

19

G35444

VALVE

BUCKET AND DIPPER SECTION - parts list Figure 310, used w/ dual lever control

2шт.

20

G33102

MANIFOLD

INLET SECTION - parts list Figure 306, used w/ dual lever control

1шт.

21

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- large, section ports, used w/ dual lever control

7шт.

22

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- small, section ports, used w/ dual lever control

21шт.

23

G33964

SHIM,.002" Thk

(0.051 mm), Port side of valve, Used w/ dual lever control .002" Thk

7шт.

24

G33965

SHIM,22.86mm OD x 0.06mm Thk

(.002"), Non-port side of valve, Used w/ dual lever control 0.051mm Thk

7шт.

25

G33124

BOLT

- tie, 3/8" - 16 NC x 17-3/4", used w/ dual lever control

4шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used w/ dual lever control 3/8"-16, G5

8шт.
